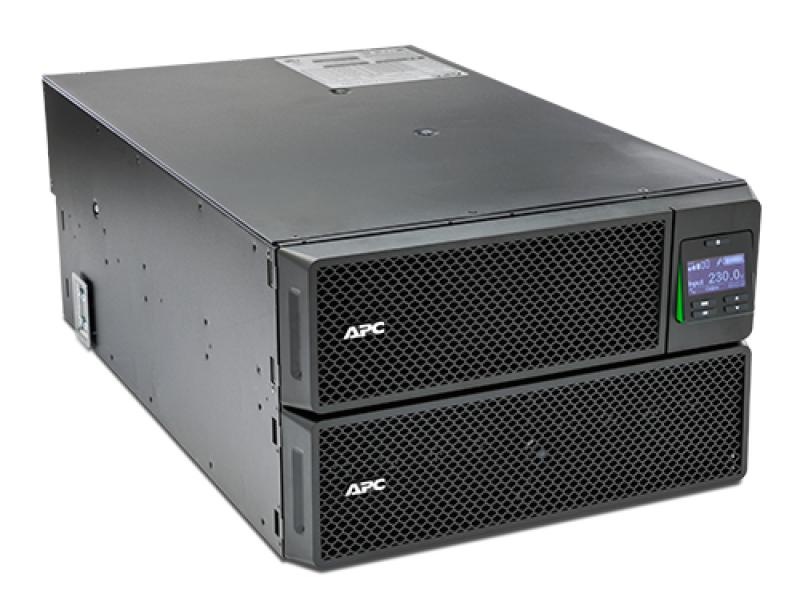

UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 3
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 4
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 5
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 6
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 7
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 8
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 9
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 10
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 11
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 12
UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 - imagine 13

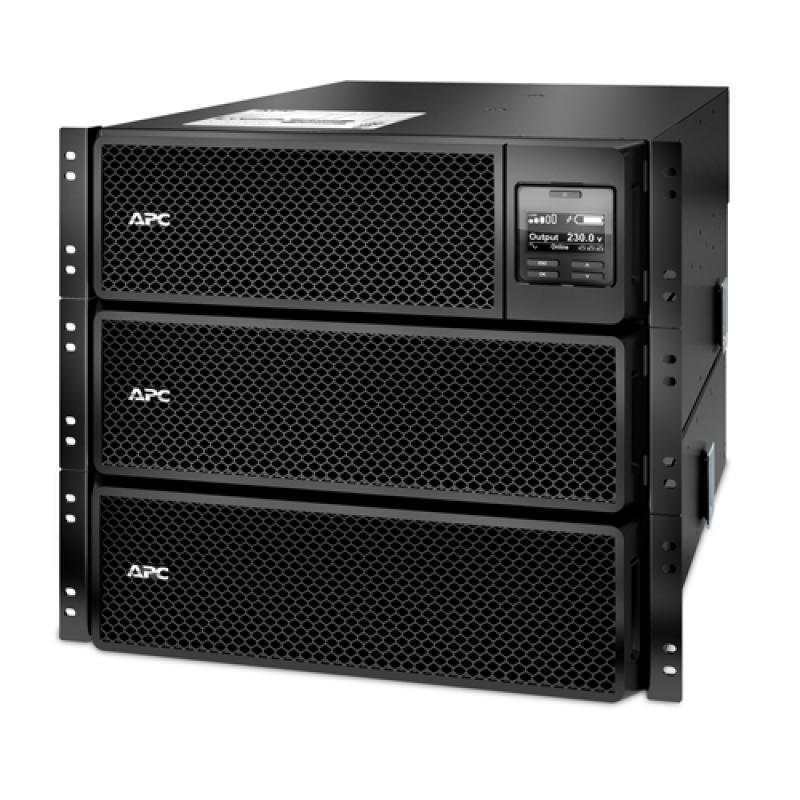

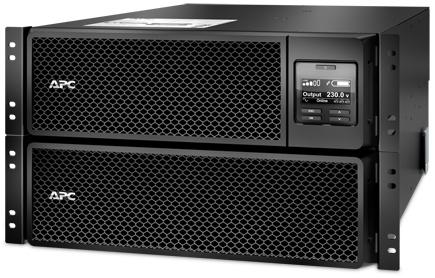

UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6

SKU: SRT8KRMXLI
Producator: Apc
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

47.272,99lei

Stoc epuizat

APC Smart-UPS SRT 8000VA RM 230V

High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card

Max. Capacity Used

Max. Capacity Used
The maximum percentage of UPS capacity used to support your specified load.
—

Please enter load to see calculated “Max. Capacity Used”

100%
Output power capacity

8.0kWatts / 8.0kVA
Rack Height

6U

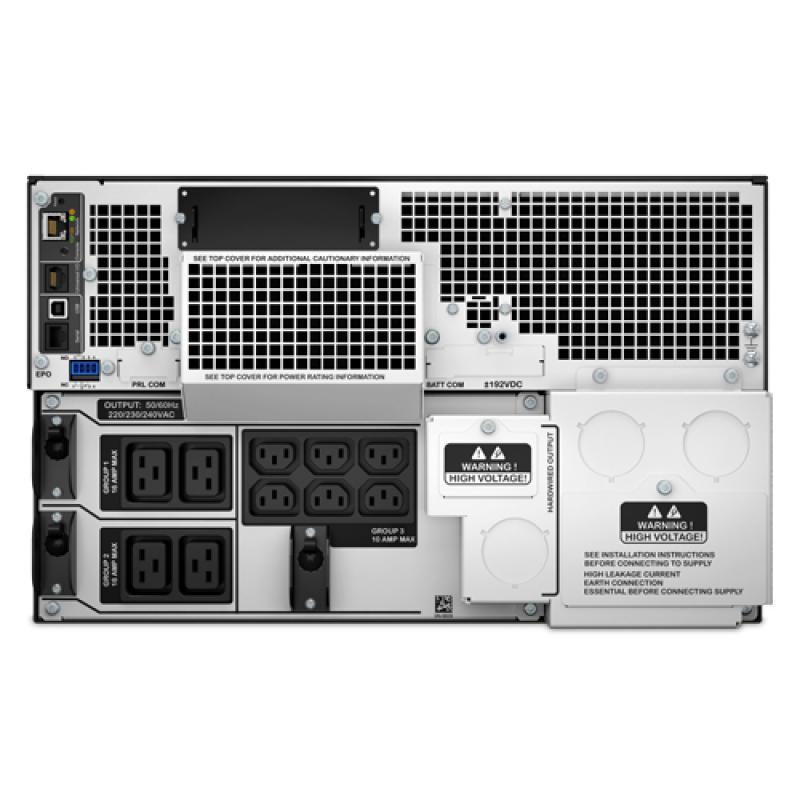

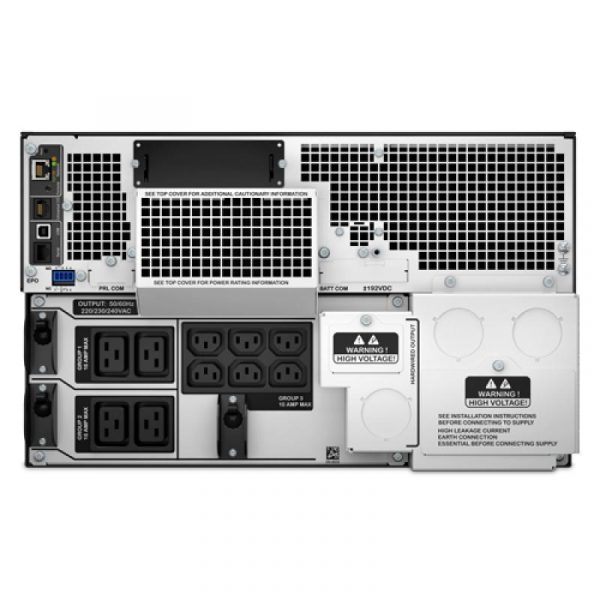

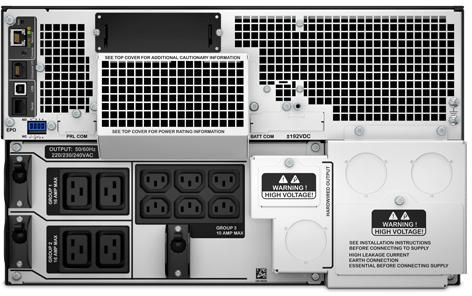

Output Connections

(4) IEC 60320 C19 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(3) IEC Jumpers (Battery Backup)
Nominal Output Voltage

230V
Nominal Input Voltage

230V, 400V 3PH

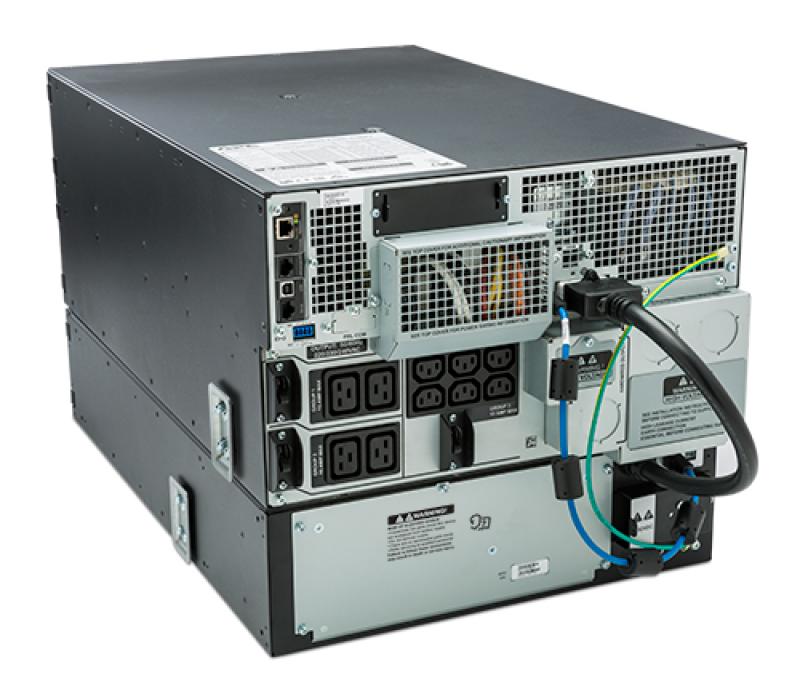

Input Connections

Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)

Output Voltage Distortion

Less than 2 %
Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages

220, 240
Load Crest Factor

3 : 1
Topology

Double conversion online
Waveform type

Sine wave
Bypass

Internal bypass (automatic and manual)
SKU: SRT8KRMXLI Categorie:
USB Port

Yes
Capacitate putere UPS

8000W
Compliance certificates

RoHS
Product colour

Black
Warranty card

Yes
Operating temperature (T-T)

0 – 40 °C
LED indicators

Status
Quick installation guide

Yes
Operating altitude

0 – 3000 m
Storage relative humidity (H-H)

0 – 95%
Temperature sensor

Yes
Package width

600 mm
Package height

461 mm
Width

715 mm

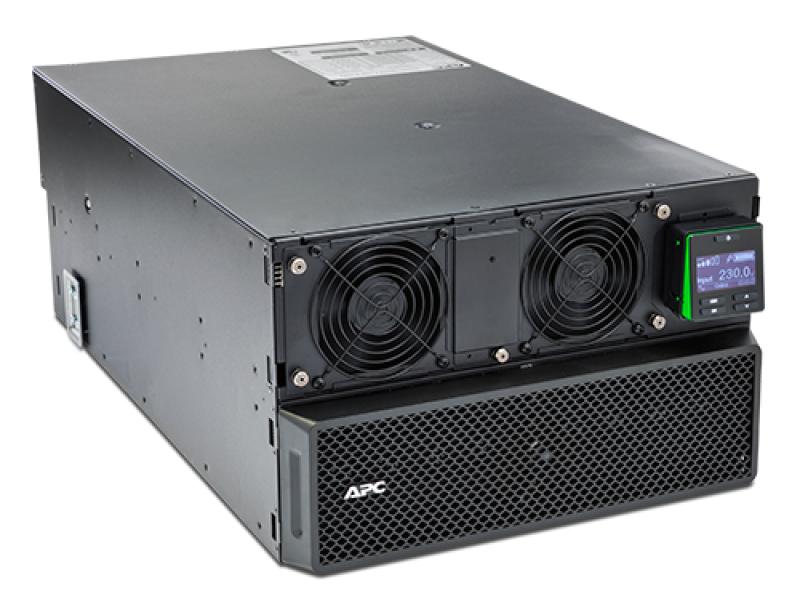

Display type

LCD
Operating relative humidity (H-H)

0 – 95%
Battery recharge time

1.5 h
Package depth

1000 mm
Rack mount kit

Yes
Surge protection

Yes
Audible alarm(s)

Yes
Tip UPS:

Online
Capacitate Rack:

6U
Ecran LCD:

Da
Port USB

Da
Number of output phases

1
Serial interface

Yes
Battery technology

Sealed Lead Acid (VRLA)
Waveform

Sine
Output frequency regulation

50/60 Hz
Battery life (max)

5 year(s)

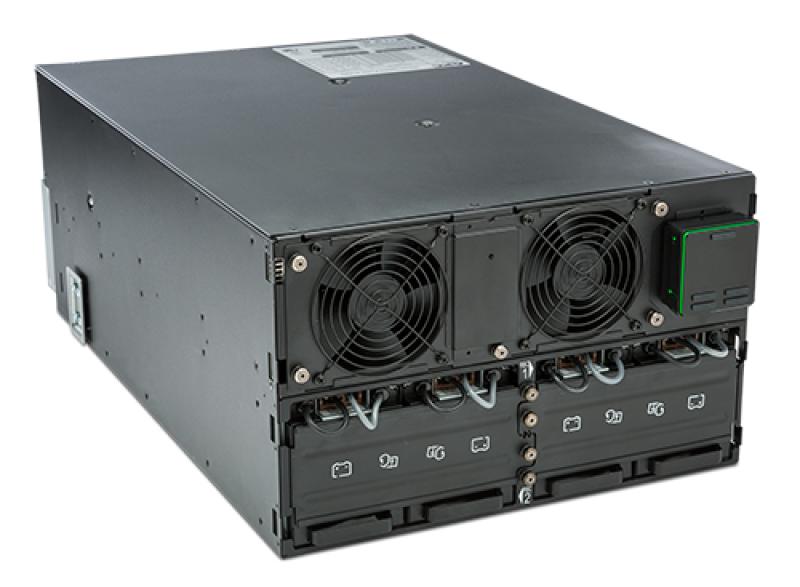

Hot-swap battery

Yes
Automatic battery test

Yes
Cold start

Yes
Storage temperature (T-T)

-15 – 45 °C
Non-operating altitude

0 – 15000 m
Software CD

Yes
Harmonized System (HS) code

85078000
Output operation voltage (min)

220 V
Output operation voltage (max)

240 V
Emergency Power Off (EPO)

Yes
AC outlet types

C13 coupler, C19 coupler
Form factor

Rackmount/Tower
Auto-restart

Yes
SmartSlot

Yes
Cables included

USB cable
UPS topology

Double-conversion (Online)
Input operation voltage (min)

100 V
Surge energy rating

480 J
Crest factor

3:1
Noise level

55 dB
Power plug

Hardwire
AC outlets quantity

10 AC outlet(s)
Serial interface type

RJ-45
Certification

REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Bracket

Yes
Packaging content

Web/SNMP Management Card
Output voltage Total Harmonic Distortion (THD)

3%
Output power capacity

8 kVA
Rack capacity

6U
Input operation voltage (max)

476 V
Number of output IEC jumpers

3
Height

263 mm
Weight

111.8 kg
Package weight

130 kg
Output power

8000 W
Efficiency

94.8%
Battery-Capacity

1728 VAh
Typical backup time at full load

5.2 min
Typical backup time at half load

14.5 min
Depth

432 mm
Products per pallet

1 pc(s)
Total carbon footprint (kg of CO2e)

18632.76
Producator

APC
Garantie

36
