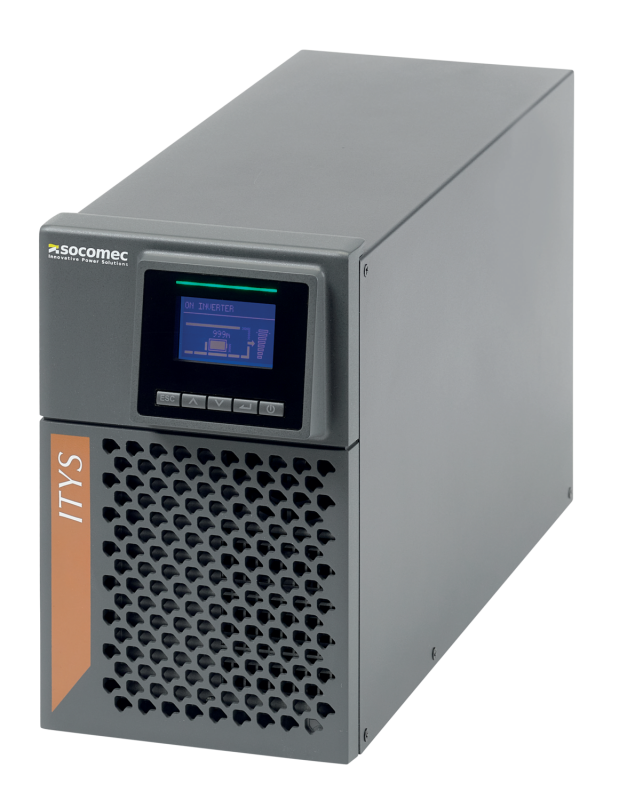

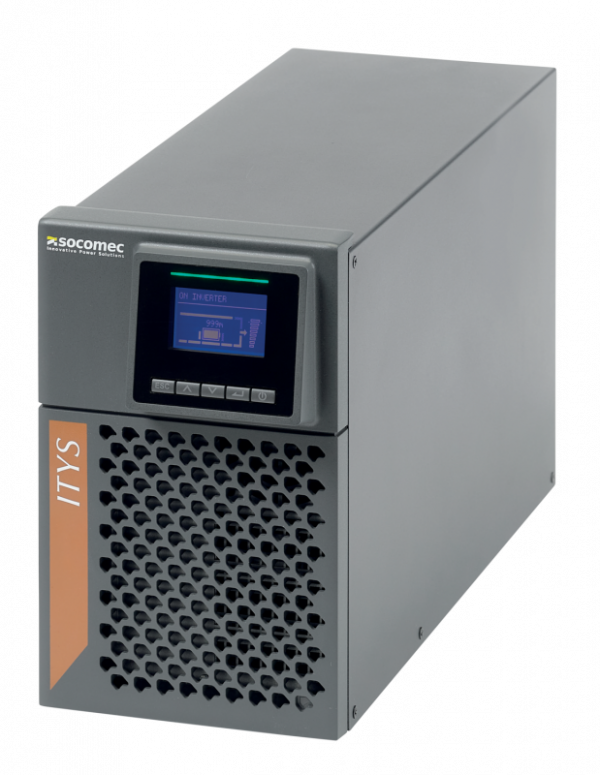

SOCOMEC ITYS 1000VA VFI UPS 1/1 PF=1 WITH BATTERY
SOCOMEC ITYS 1000VA VFI UPS 1/1 PF=1 WITH BATTERY - imagine 3
SOCOMEC ITYS 1000VA VFI UPS 1/1 PF=1 WITH BATTERY - imagine 4

SOCOMEC ITYS 1000VA VFI UPS 1/1 PF=1 WITH BATTERY

SKU: ITY3-TW010B
Producator: Socomec
Disponibilitate:

Doar 2 rămase în stoc
Add to wishlist
Compare

2.489,99lei

Doar 2 rămase în stoc

SOCOMEC ITYS 1000VA VFI UPS 1/1 PF=1 WITH BATTERY INTEGRATED

– Embedded dry-contact interface.
– Input mains switch breaker.
– Connection for battery extension modules.
– Power off the UPS remotely.
– Internal temperature sensor.

Input connection  C14
Number of output connections C13   4 pcs

SKU: ITY3-TW010B Categorie:
USB Port

Yes
Country of origin

China
Manual

Yes
Operating temperature (T-T)

0 – 45 °C
LED indicators

Yes
Ethernet LAN (RJ-45) ports

1
ECO mode

Yes
RS-232 ports

1
Capacitate putere UPS

1000W
Display type

LCD
Operating relative humidity (H-H)

0 – 95%
International Protection (IP) code

IP20
Control type

Buttons
Width

145 mm
Tip UPS:

Online
Capacitate Rack:

None
Ecran LCD:

Da
Port USB

Da
Output frequency

50/60 Hz
Number of input phases

1
Number of output phases

1
Efficiency (ECO mode)

98%
AC outlet types

C13 coupler
Power plug

C14 coupler
USB port type

USB Type-B
Battery technology

Sealed Lead Acid (VRLA)
Form factor

Mini Tower
Safety

IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
Waveform

Sine
Input operation voltage (max)

300 V
Output operation voltage (max)

240 V
Emergency Power Off (EPO)

Yes
Output power capacity

1 kVA
Battery-Capacity

7 Ah
UPS topology

Double-conversion (Online)
Crest factor

3:1
Output operation voltage (min)

200 V
Efficiency

93%
Input power factor

0.99
Noise level

50 dB
AC outlets quantity

4 AC outlet(s)
Input operation voltage (min)

160 V
Output power

1000 W
Input frequency

40/70 Hz
Output power factor

1
Power protection features

Short circuit
Battery voltage

36 V
Typical backup time at full load

7.8 min
Battery life (max)

3 year(s)
Charging current

8 A
Product colour

Black, Grey, Orange
Operating altitude

0 – 1000 m
Certification

IEC/EN 62040-2, AS 62040.2 IEC/EN 62040-3 CE, RCM (E2376)
Depth

404 mm
Height

224 mm
Weight

14.4 kg
Producator

SOCOMEC
Garantie

24
