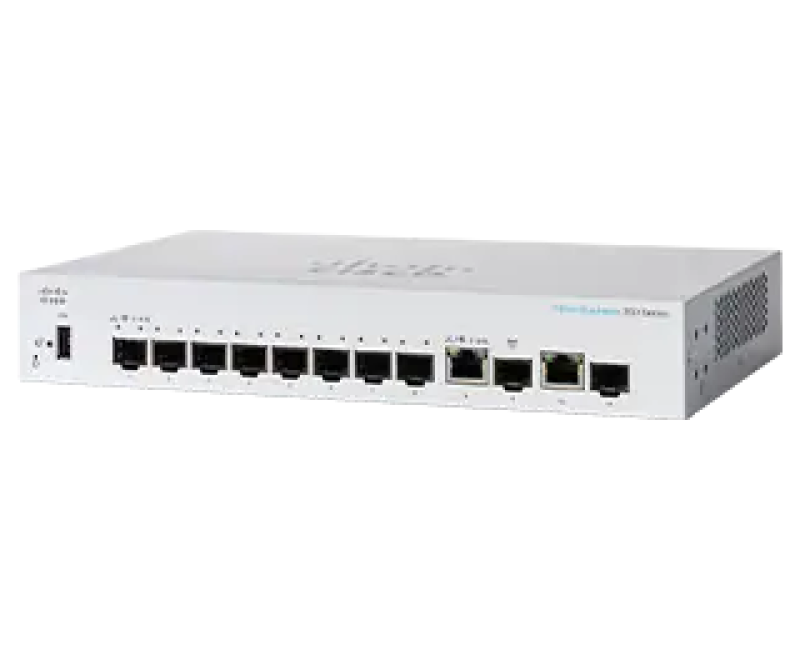

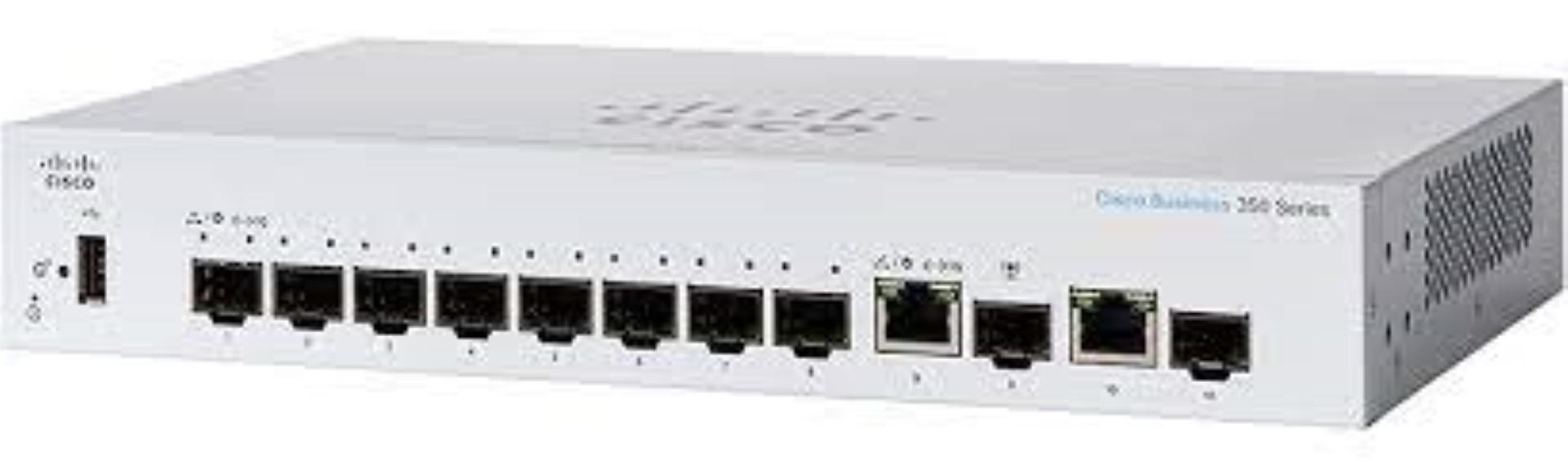

Switch CISCO CBS350-8S-E-2G, 8 PORTURI 10/100/1000, 2 x SFP, Buffer: 1.5 Mb, Flash 256Mb, CPU: 800 MHz ARM , DRAM: 512 MB Dimensiuni: 280 x 170 x 44 mm, Greutate: 1 Kg, Consum maxim: 220V=11.9W, Fanless, Rack-mount.
| Management | Unmanaged |
|---|---|
| PoE | Nu |
| LAN-Port-Type | Gigabit |
| Sustainability compliance | Yes |
| Quick start guide | Yes |
| Compliance certificates | CE |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Storage relative humidity (H-H) | 10 – 90% |
| Weight | 1 kg |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| Height | 44 mm |
| Power supply included | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Depth | 170 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operating relative humidity (H-H) | 10 – 90% |
| Cables included | AC |
| USB 2.0 ports quantity | 1 |
| Built-in processor | Yes |
| AC input voltage | 100 – 240 V |
| Harmonized System (HS) code | 85176990 |
| Storage temperature (T-T) | -25 – 70 °C |
| Reset button | Yes |
| Rack mounting | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Processor frequency | 800 MHz |
| Static route | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Switch type | Managed |
| Port mirroring | Yes |
| Form factor | 1U |
| Policy-based routing | Yes |
| Firmware upgradeable | Yes |
| Access Control List (ACL) | Yes |
| Power over Ethernet (PoE) | No |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Flow control support | Yes |
| Width | 280 mm |
| Rate limiting | Yes |
| IGMP snooping | Yes |
| Number of power supply units | 1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Rack mount kit | Yes |
| Installed SFP modules quantity | 0 |
| Configuring Location Settings (CLI) | Yes |
| Console port | RJ-45 |
| 10G support | No |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Number of queues | 8 |
| Authentication | Guest VLAN, Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Multicast support | Yes |
| Jumbo frames | 9000 |
| Active link detection | Yes |
| Fanless | Yes |
| Switch layer | L3 |
| IP routing | Yes |
| MAC address table | 16000 entries |
| Packet buffer memory | 1.5 MB |
| Loop protection | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| ARP inspection | Yes |
| Switching capacity | 20 Gbit/s |
| BPDU filtering/protection | Yes |
| Head-of-line (HOL) blocking | Yes |
| Number of VLANs | 4094 |
| IP-MAC-Port binding | Yes |
| Throughput | 14.88 Mpps |
| Cable types supported | Cat5e |
| Cable length detection | Yes |
| VLAN mapping type | 1:1 VLAN mapping |
| Number of static routes | 990 |
| Number of IP interfaces | 128 |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Security algorithms | 802.1x RADIUS, SSH, SSH-2, SSL/TLS |
| Multicast Listener Discovery (MLD) snooping | MLD v1/2 |
| Management protocols | SNMP v1/2c/3, Telnet, HTTP/HTTPS, SSH, RADIUS, BOOTP, SNTP |
| Routing protocols | RIP-2 |
| Mean time between failures (MTBF) | 2242229 h |
| Heat dissipation | 40.6 BTU/h |
| Certification | UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A |
| Porturi RJ 45 | 5-10 |
| Viteza Transfer | Gigabit |
| Porturi SFP | 1-2 |
| Montare in Rack | Da |
| Producator | CISCO |
| Garantie | 60 |
