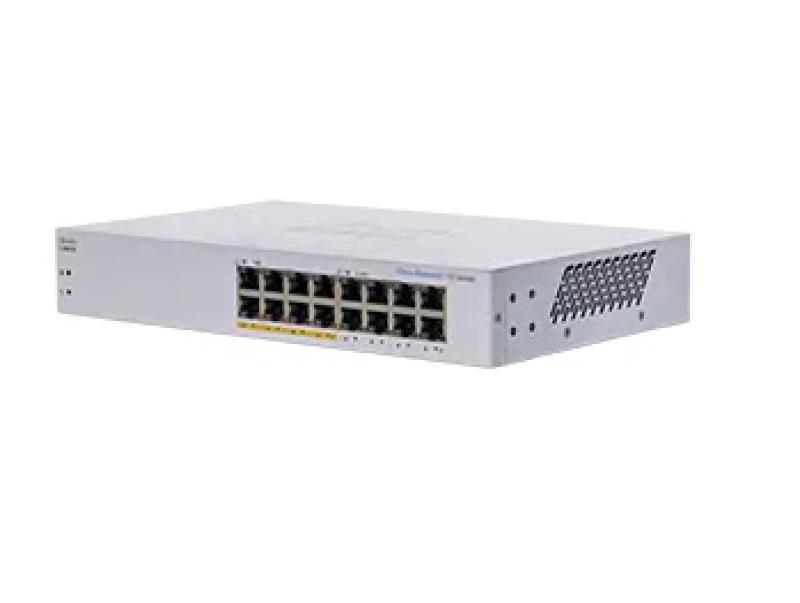

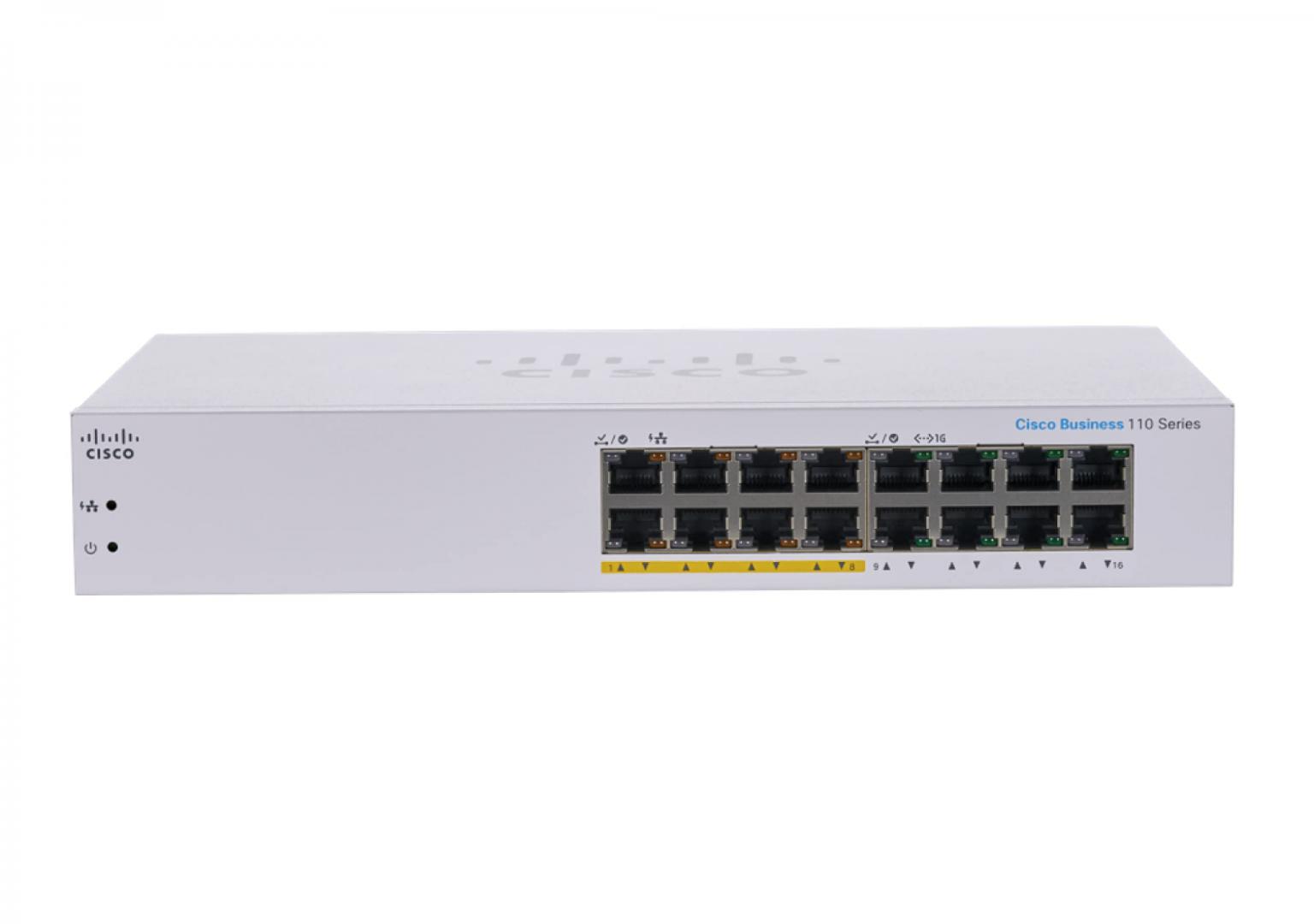

Switch CISCO CBS110-16PP , 16 porturi 10/100/1000, Buget 8 x POE – 64W, Flash: 16mb, CPU: 400 MHz, dimensiuni: 279 x 170 x 44 mm, 1.3 Kg, consum: 220V=11.41W, Fanless, Montare in rack.
| Management | Unmanaged |
|---|---|
| PoE | Da |
| LAN-Port-Type | Gigabit |
| Sustainability compliance | Yes |
| Storage relative humidity (H-H) | 5 – 90% |
| Quick start guide | Yes |
| Compliance certificates | CE |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Jumbo frames support | Yes |
| Height | 44 mm |
| Power supply included | Yes |
| Storage temperature (T-T) | -20 – 70 °C |
| Depth | 170 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operating relative humidity (H-H) | 10 – 90% |
| Weight | 1.3 kg |
| Built-in processor | Yes |
| AC input voltage | 110 – 240 V |
| Internal memory | 128 MB |
| Power over Ethernet (PoE) | Yes |
| Harmonized System (HS) code | 85176990 |
| Full duplex | Yes |
| Rack mounting | Yes |
| Quality of Service (QoS) support | Yes |
| Flash memory | 16 MB |
| Form factor | 1U |
| Power over Ethernet (PoE) ports quantity | 8 |
| Switch layer | L2 |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Processor frequency | 400 MHz |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Rack mount kit | Yes |
| Installed SFP modules quantity | 0 |
| 10G support | No |
| Half duplex | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Switch type | Unmanaged |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| Jumbo frames | 9216 |
| Number of queues | 4 |
| MAC address table | 8192 entries |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Head-of-line (HOL) blocking | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Total Power over Ethernet (PoE) budget | 64 W |
| Cable types supported | Cat5e |
| Mean time between failures (MTBF) | 1971811 h |
| Heat dissipation | 274.27 BTU/h |
| Width | 279 mm |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC (CFR 47) Class A, FCC Class B |
| Porturi RJ 45 | 11-18 |
| Viteza Transfer | Gigabit |
| Porturi SFP | 1-2 |
| Montare in Rack | Da |
| Producator | CISCO |
| Garantie | 60 |
