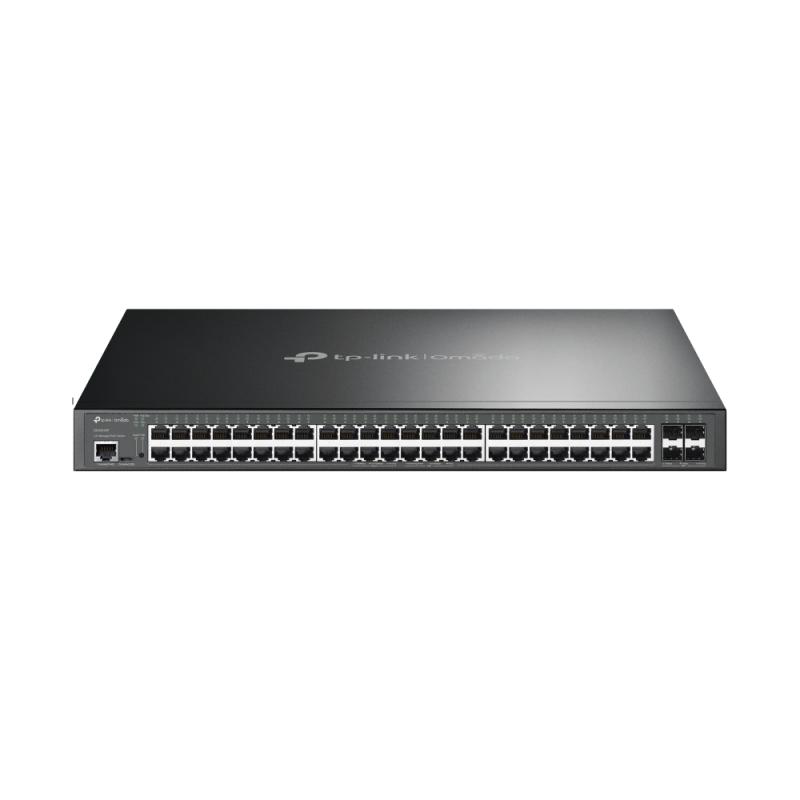

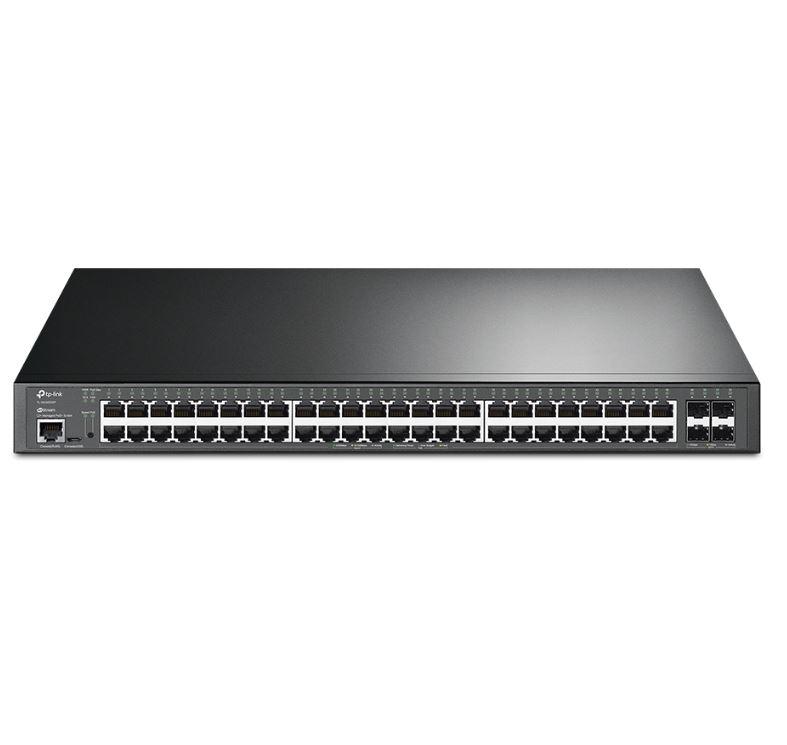

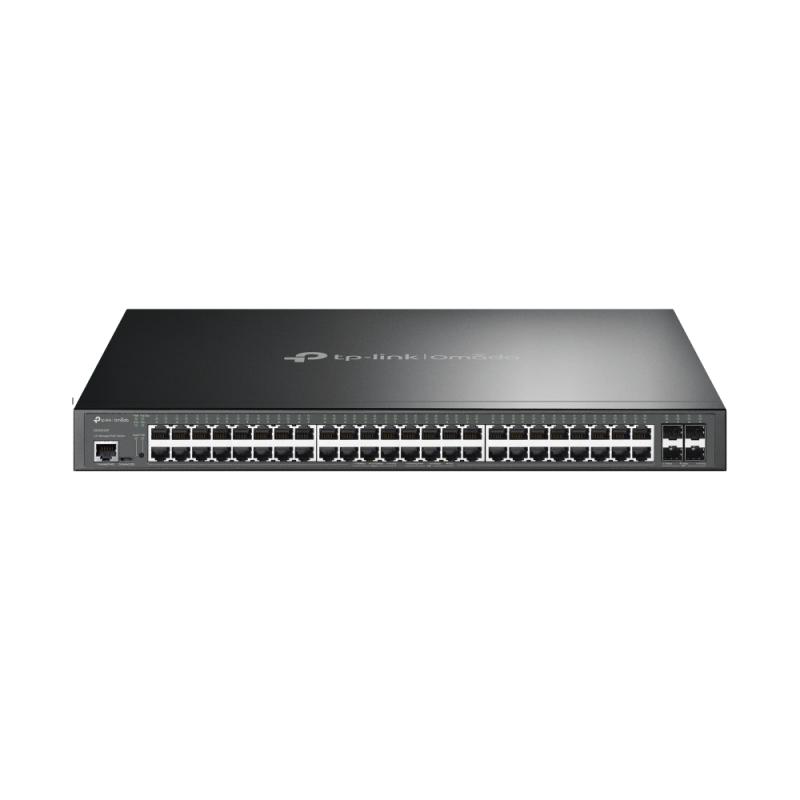

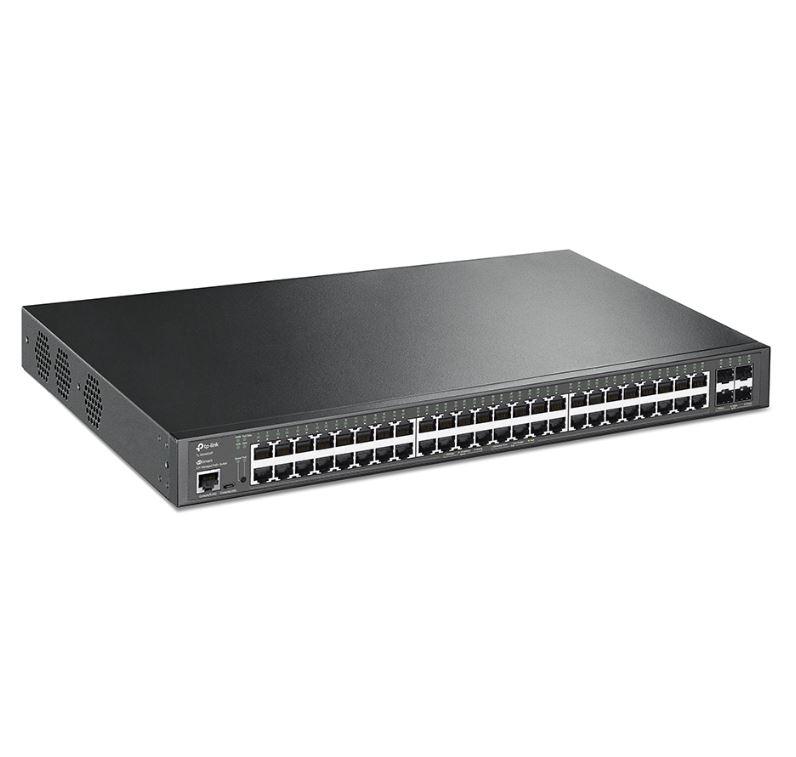

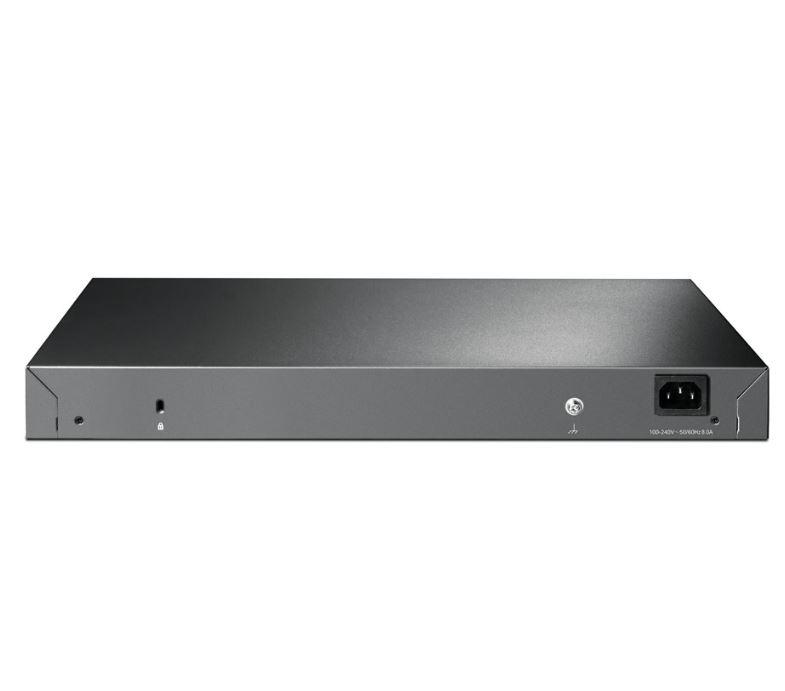

“JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+ PORT: 48× Gigabit PoE+ Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 500 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”
Management | Managed |
---|---|
PoE | Da |
LAN-Port-Type | Gigabit |
Storage temperature (T-T) | -40 – 70 °C |
Storage relative humidity (H-H) | 5 – 90% |
Product colour | Black |
Certification | CE/FCC/RoHS |
Quick start guide | Yes |
LED indicators | Yes |
Operating temperature (T-T) | 0 – 40 °C |
Jumbo frames support | Yes |
Link aggregation | Yes |
Height | 44 mm |
Power supply included | Yes |
Operating relative humidity (H-H) | 10 – 90% |
Cables included | AC |
AC input voltage | 100 – 240 V |
Power over Ethernet (PoE) | Yes |
Number of fans | 3 fan(s) |
Depth | 330 mm |
Reset button | Yes |
Rack mounting | Yes |
VLAN support | Yes |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
System event log | Yes |
Switch type | Managed |
10G support | Yes |
Port mirroring | Yes |
Form factor | 1U |
MAC address filtering | Yes |
Access Control List (ACL) | Yes |
Width | 440 mm |
Flow control support | Yes |
Rate limiting | Yes |
IGMP snooping | Yes |
Power source | AC |
Configuring Location Settings (CLI) | Yes |
Broadcast storm control | Yes |
Spanning tree protocol | Yes |
Multicast support | Yes |
Jumbo frames | 9000 |
MAC address table | 16000 entries |
SSH/SSL support | Yes |
Cloud-managed | Yes |
Basic switching RJ-45 Ethernet ports quantity | 48 |
ARP inspection | Yes |
BPDU filtering/protection | Yes |
Power over Ethernet (PoE) power per port | 30 W |
Switching capacity | 176 Gbit/s |
Store-and-forward | Yes |
Power connector | AC-in jack |
Packet buffer memory | 12 MB |
Head-of-line (HOL) blocking | Yes |
Static port security | Yes |
IP-MAC-Port binding | Yes |
Forwarding rate | 130.9 Mpps |
DHCP features | DHCP client, DHCP relay, DHCP server |
Power over Ethernet plus (PoE+) ports quantity | 48 |
Authentication | Auto VLAN, Guest VLAN |
Power consumption (max) | 635.7 W |
Total Power over Ethernet (PoE) budget | 500 W |
Heat dissipation | 2169.2 BTU/h |
Porturi RJ 45 | 28+ |
Viteza Transfer | 10G+ |
Porturi SFP | 1-2 |
Montare in Rack | Da |
SFP module slots quantity | 4 |
Console port | RJ-45/micro-USB |
AC input frequency | 50-60 Hz |
Producator | TP-LINK |
Garantie | 60 |
