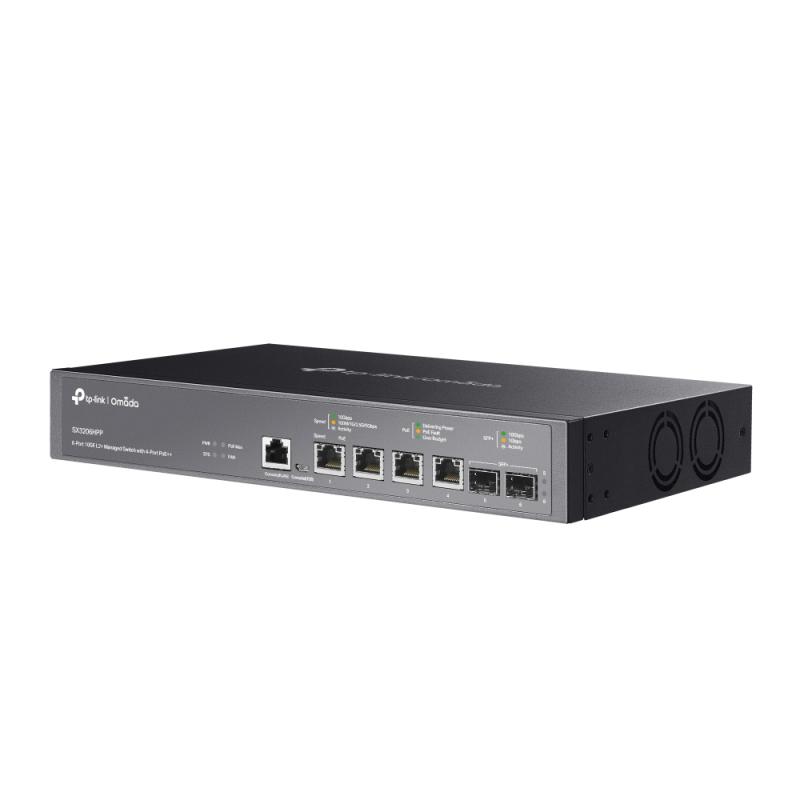

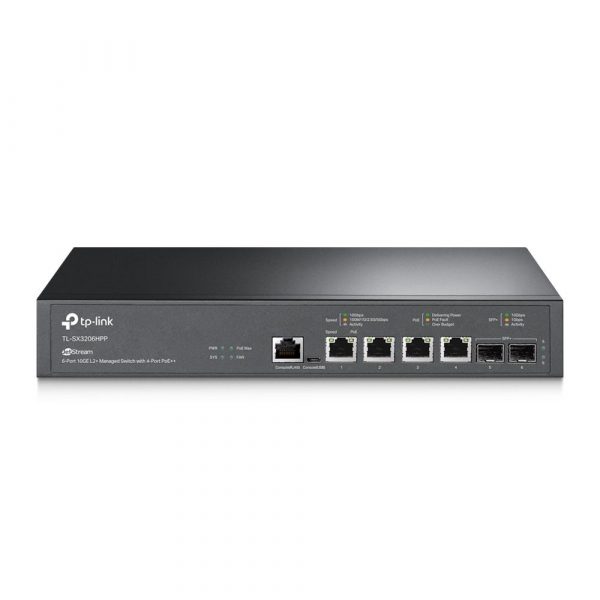

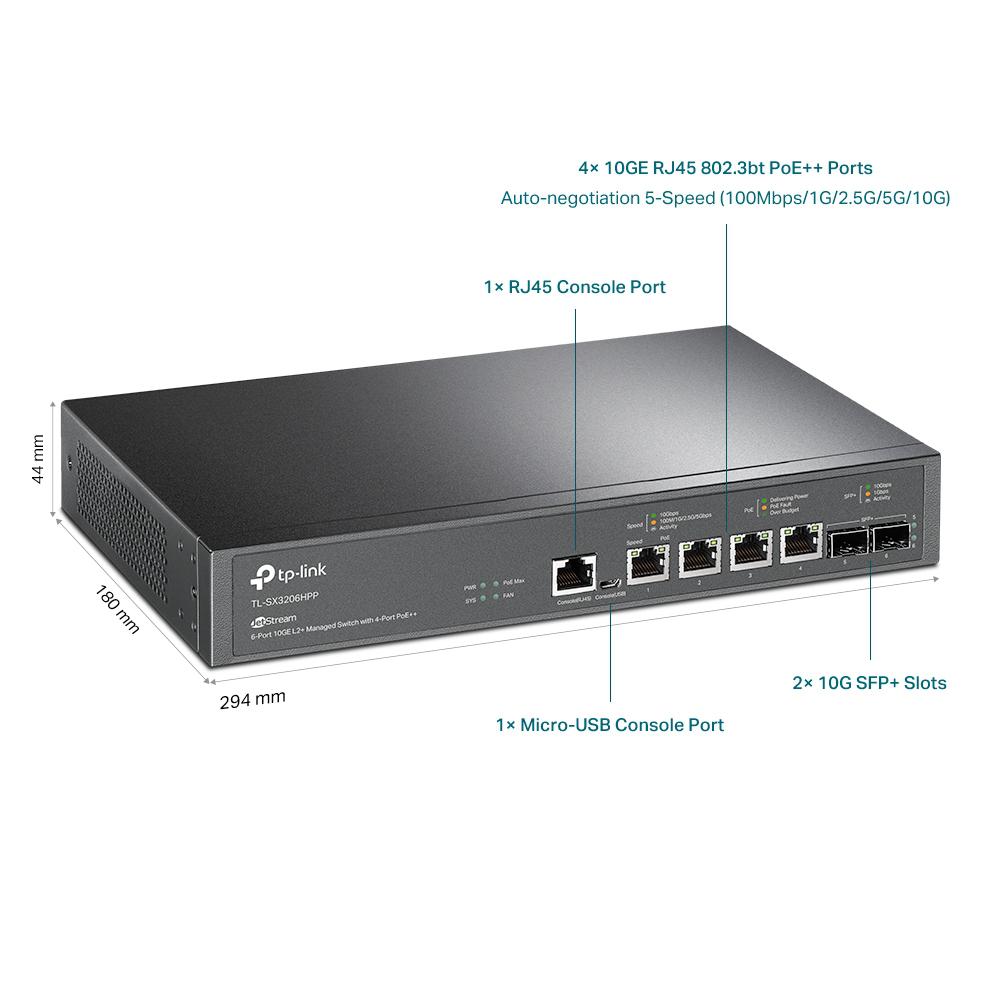

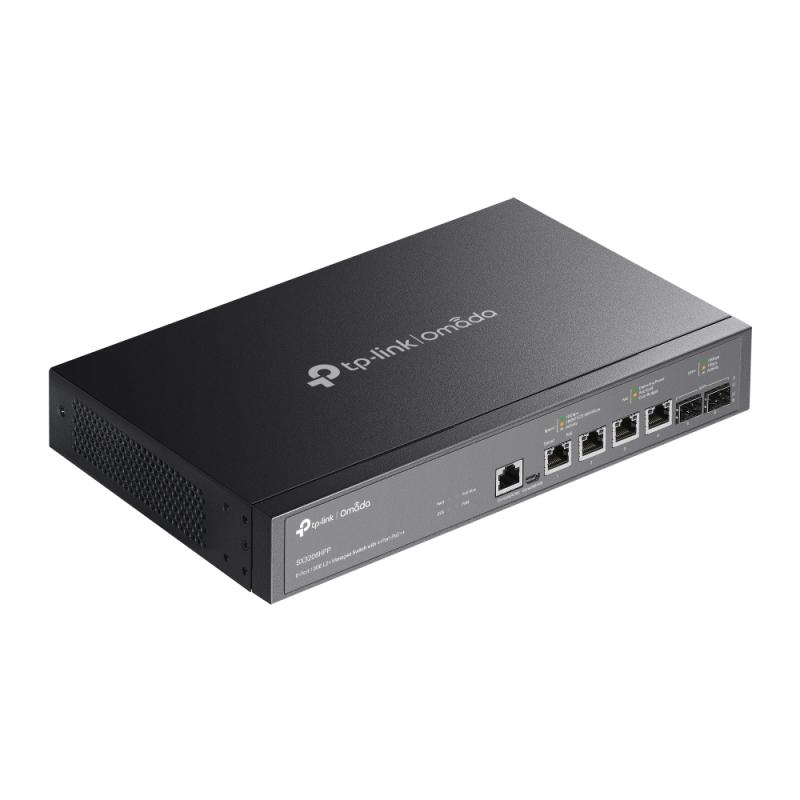

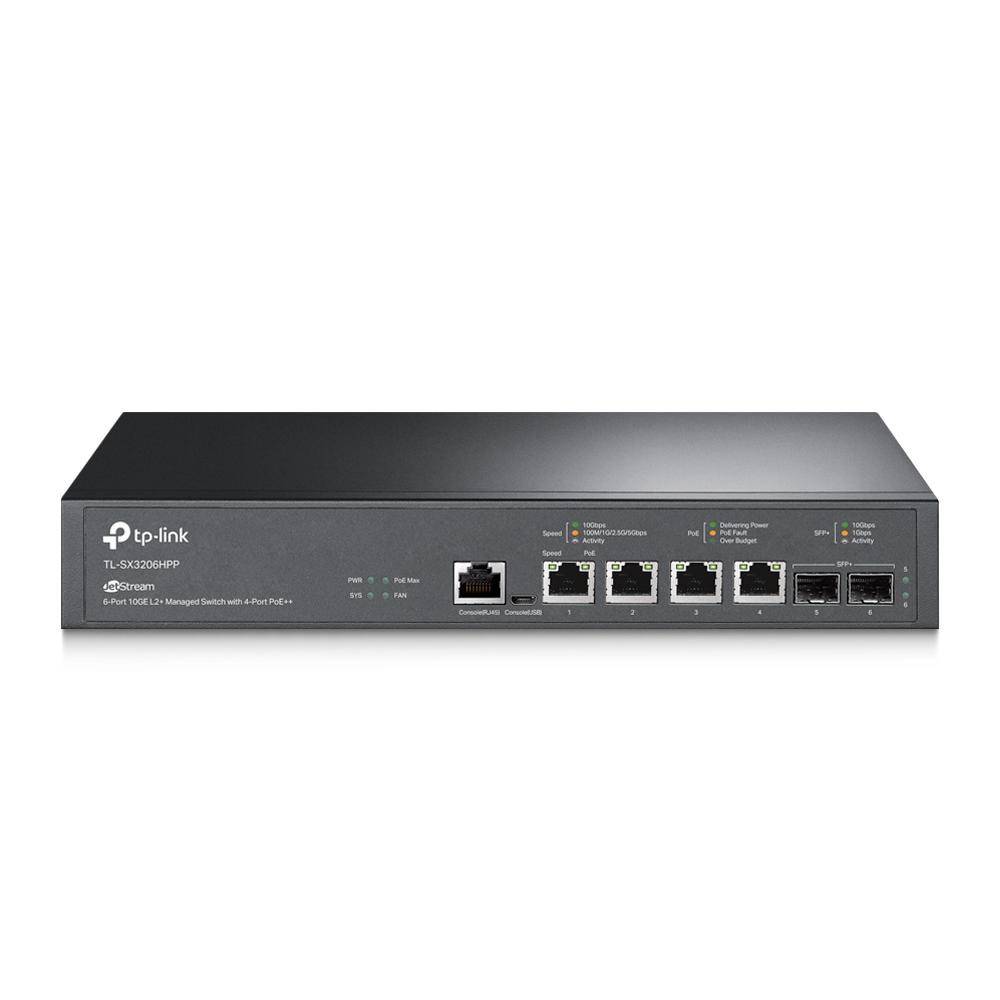

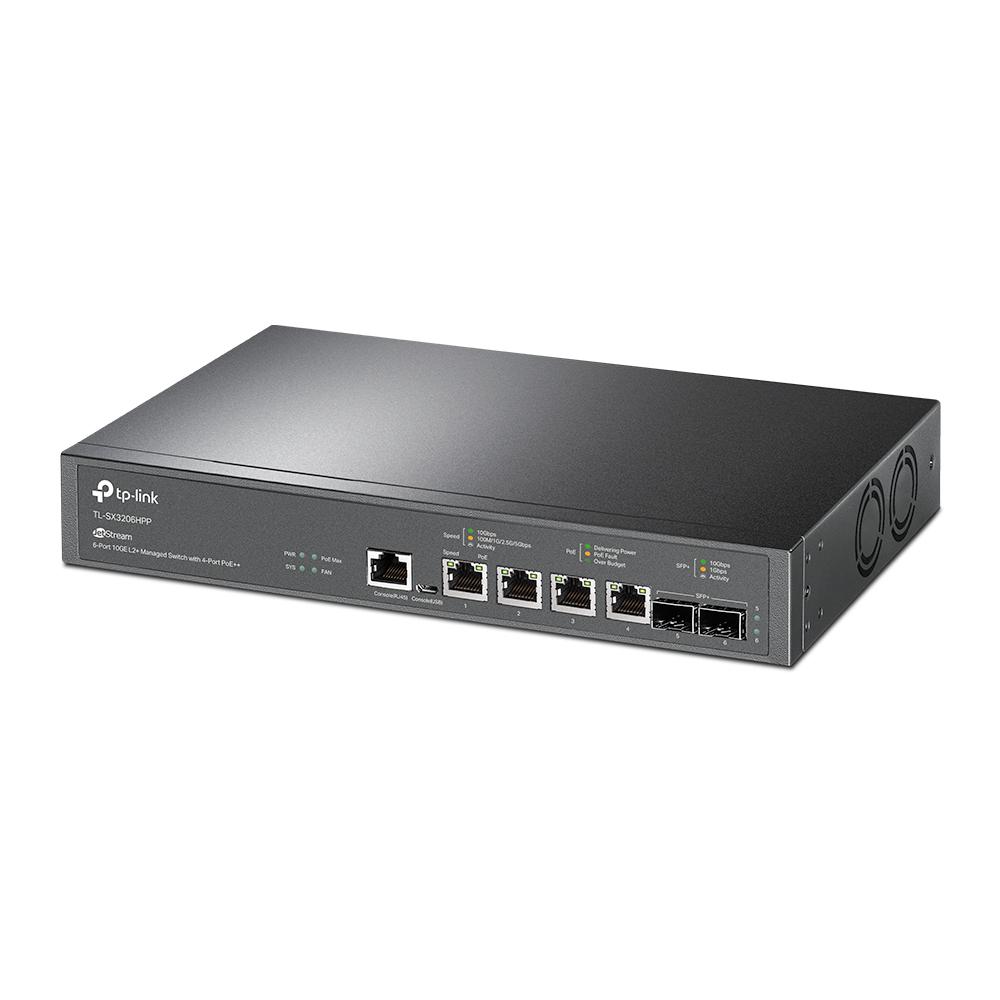

“JetStream™ 4-Port 10GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 4-Port PoE++ PORT: 4× 10G PoE++ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 200 W PoE Power, 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”
| Management | Smart managed |
|---|---|
| PoE | Da |
| LAN-Port-Type | 10Gigabit |
| Storage temperature (T-T) | -40 – 70 °C |
| Product colour | Black |
| Storage relative humidity (H-H) | 5 – 95% |
| Certification | CE/FCC/RoHS |
| Quick start guide | Yes |
| LED indicators | Yes |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| Height | 44 mm |
| Power supply included | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Cables included | AC |
| AC input voltage | 100 – 240 V |
| Power over Ethernet (PoE) | Yes |
| Number of fans | 2 fan(s) |
| Rack mounting | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Static route | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 10G Ethernet (100/1000/10000) |
| 10G support | Yes |
| Port mirroring | Yes |
| Switching capacity | 120 Gbit/s |
| Power over Ethernet (PoE) power per port | 60 W |
| Width | 294 mm |
| Depth | 180 mm |
| Access Control List (ACL) | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| IGMP snooping | Yes |
| Rack mount kit | Yes |
| Power source | AC |
| Installed SFP modules quantity | 0 |
| Management protocols | SNMP v1/v2c/v3 |
| Configuring Location Settings (CLI) | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Multicast support | Yes |
| Jumbo frames | 9000 |
| IP routing | Yes |
| Number of VLANs | 4000 |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| MAC address table | 32000 entries |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| BPDU filtering/protection | Yes |

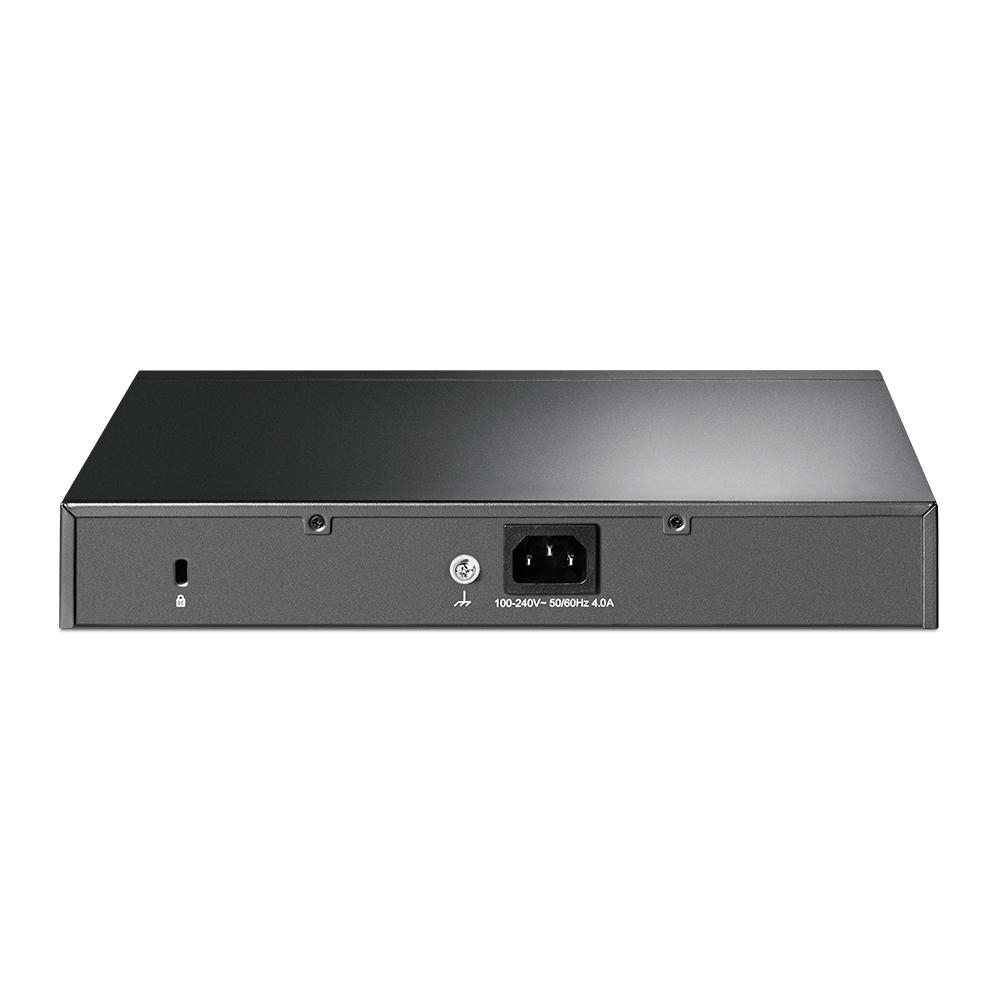

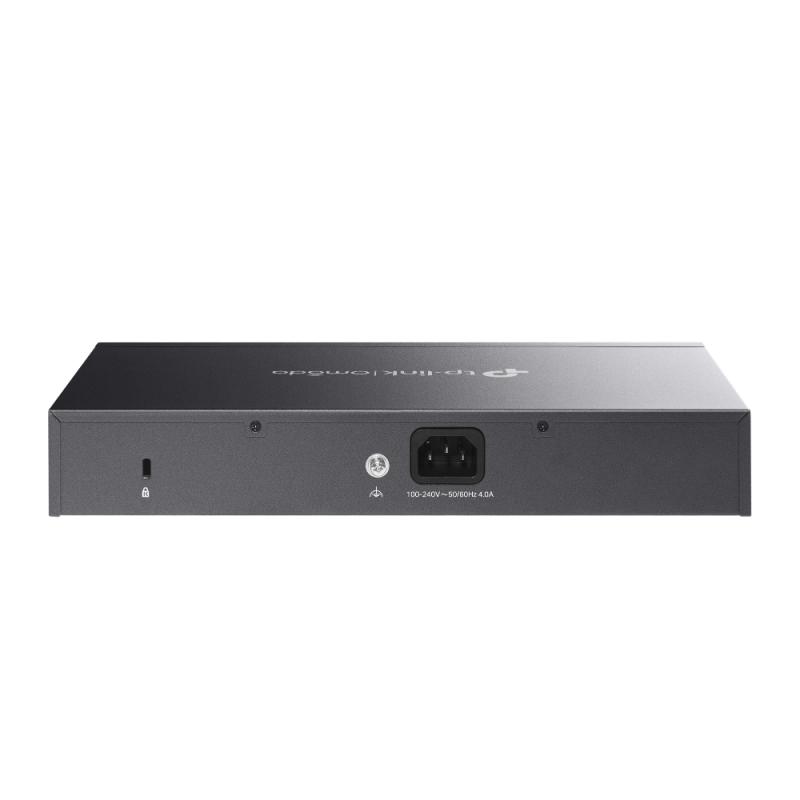

| Power connector | AC-in jack |
| Head-of-line (HOL) blocking | Yes |
| Number of static routes | 48 |
| Authentication type | AAA, RADIUS, TACACS+ |
| Packet buffer memory | 16 MB |
| Virtual LAN features | Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Forwarding rate | 89.28 Mpps |
| MIB support | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Routing entries | 512 |
| Security algorithms | HTTPS, SSL/TLS |
| Authentication | Guest VLAN |
| Power consumption (max) | 244.9 W |
| Total Power over Ethernet (PoE) budget | 200 W |
| Heat dissipation | 835.67 BTU/h |
| Porturi RJ 45 | 1-4 |
| Viteza Transfer | 10G+ |
| Porturi SFP | 1-2 |
| Montare in Rack | Nu |
| SFP module slots quantity | 2 |
| Console port | RJ-45/micro-USB |
| AC input frequency | 50-60 Hz |
| Producator | TP-LINK |
| Garantie | 24 |
