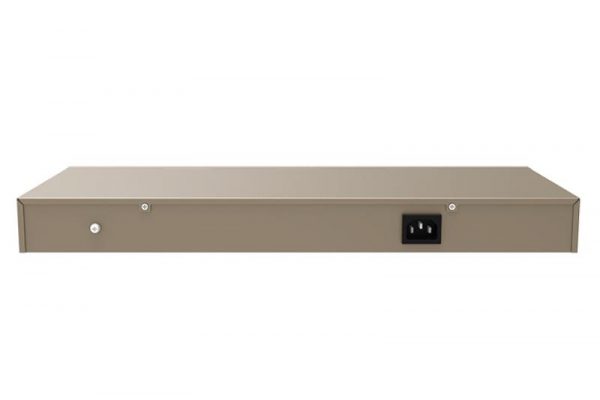

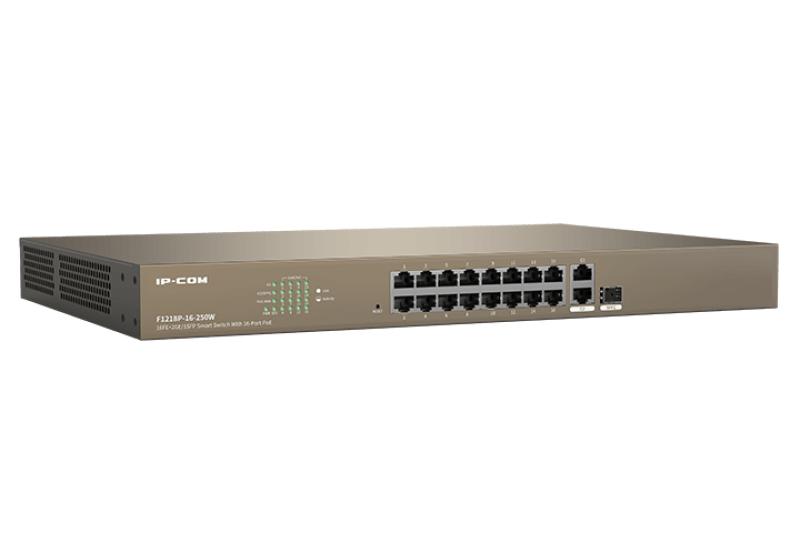

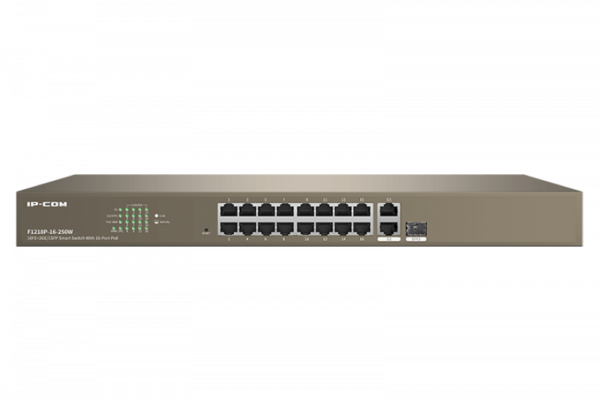

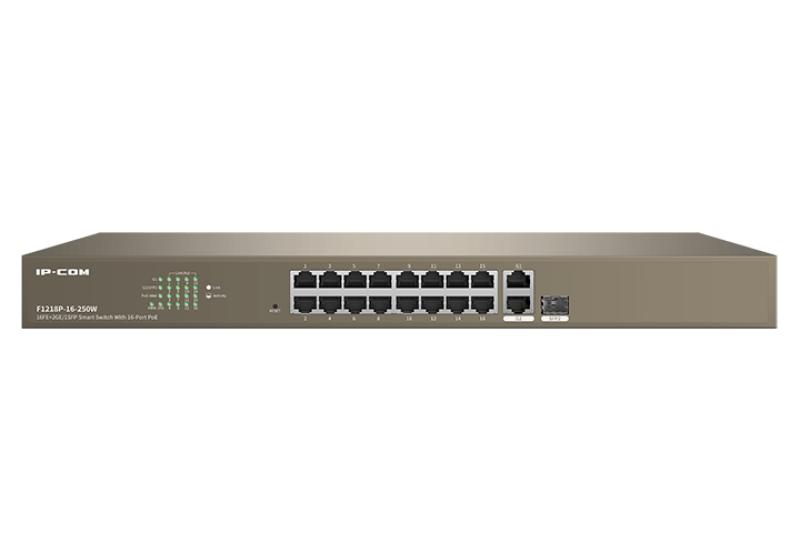

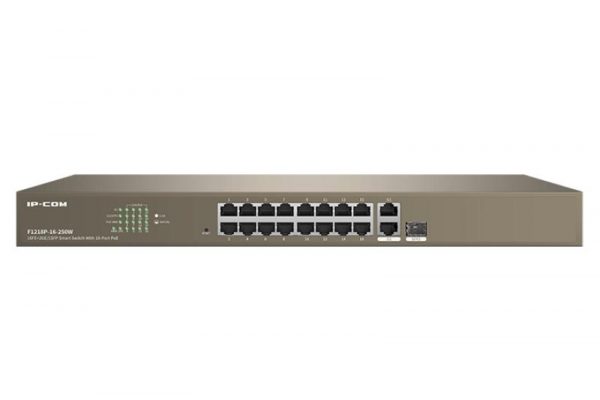

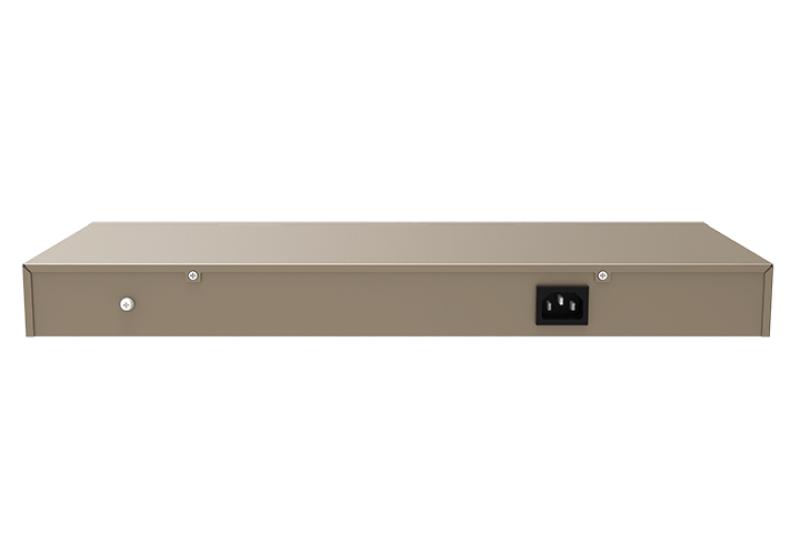

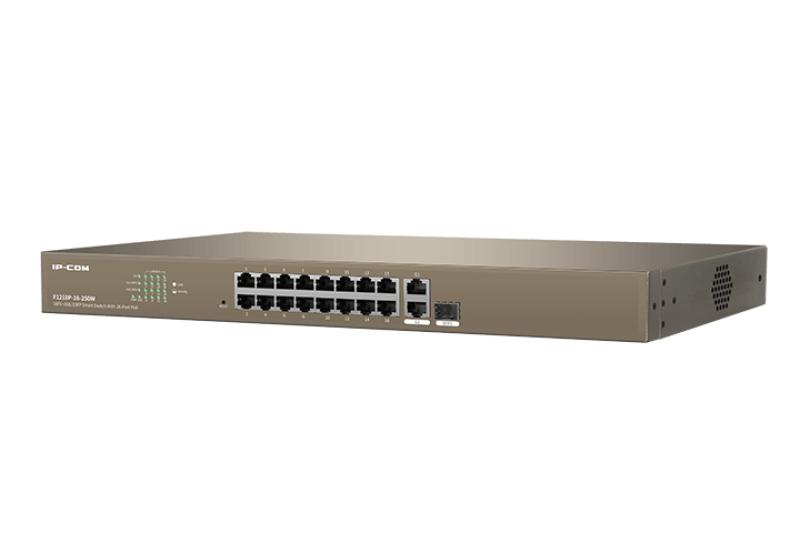

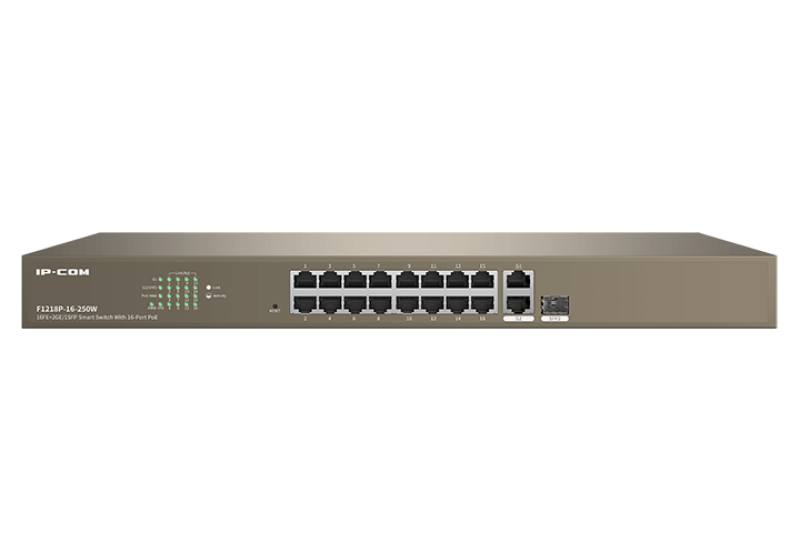

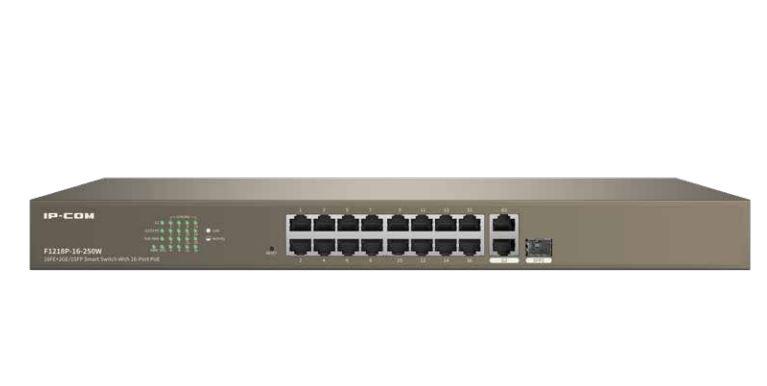

IP-COM switch F1218P-16-250W, 16-Port 10/100Mbps + 2 Gigabit + 1 SFP, 16 * 10/100 Mbps Base-TX RJ45 ports (Data/Power), 2 * 10/100/1000 Mbps Base-T RJ45 ports (Data), 1 * 10/100/1000 Mbps Base-X SFP port (Combo), Forwarding Rate: 5.36 Mpps, Switching Capacity: 7.2 Gbps, PoE Supply: Ports 1-16 support standard IEEE802.3af/at, 30W output per PoE port, 130W output of the total PoE Power, Standard&Protocol: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at, managed.
Management | Managed |
---|---|
PoE | Da |
LAN-Port-Type | Gigabit |
Storage temperature (T-T) | -40 – 70 °C |
Storage relative humidity (H-H) | 5 – 90% |
Operating temperature (T-T) | 0 – 45 °C |
Link aggregation | Yes |
Height | 44 mm |
Product colour | Green |
Operating relative humidity (H-H) | 10 – 90% |
AC input voltage | 100 – 240 V |
Power over Ethernet (PoE) | Yes |
Harmonized System (HS) code | 85176990 |
Rack mounting | Yes |
VLAN support | Yes |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
Switch type | Managed |
Port mirroring | Yes |
Firmware upgradeable | Yes |
Width | 440 mm |
Flow control support | Yes |
IGMP snooping | Yes |
Installed SFP modules quantity | 0 |
10G support | No |
Spanning tree protocol | Yes |
Basic switching RJ-45 Ethernet ports quantity | Fast Ethernet (10/100) |
Power over Ethernet (PoE) power per port | 30 W |
Store-and-forward | Yes |
LED indicators | Activity, Link, PoE, Power, System |
MAC address table | 4000 entries |
Certification | CCC, FCC, CE, RoHS |
IP-MAC-Port binding | Yes |
MAC address auto-learning supported | Yes |
Switching capacity | 7.2 Gbit/s |
Gigabit Ethernet (copper) ports quantity | 2 |
Forwarding rate | 5.36 Mpps |
Total Power over Ethernet (PoE) budget | 230 W |
Depth | 178.8 mm |
Combo SFP ports quantity | 1 |
Security algorithms | SNMP, SNMPv2 |
Porturi RJ 45 | 11-18 |
Viteza Transfer | Fast Ethernet |
Porturi SFP | 1-2 |
Montare in Rack | Nu |
Producator | TENDA |
Garantie | 36 |
