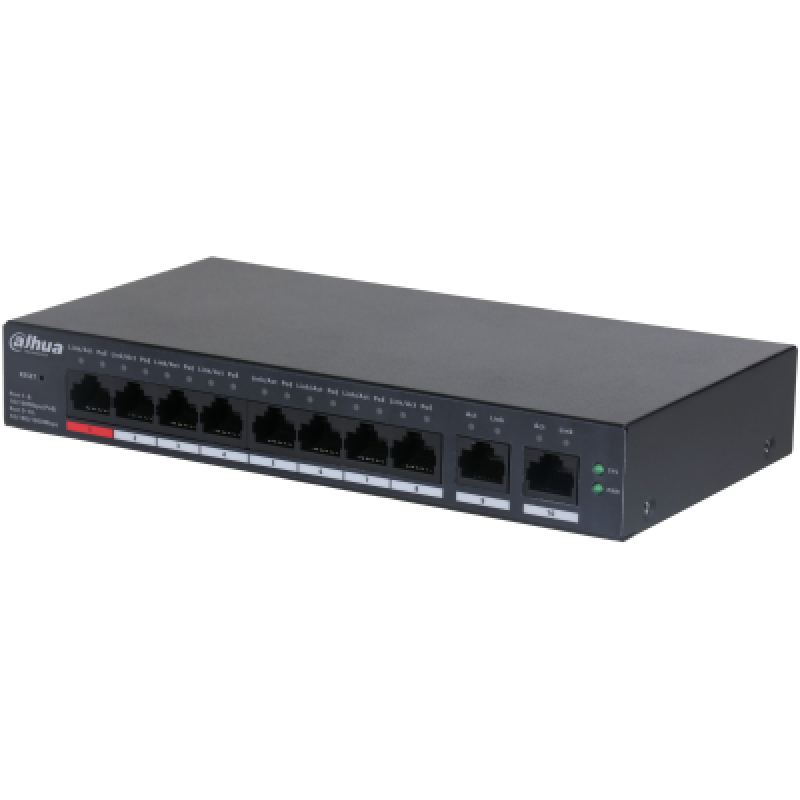

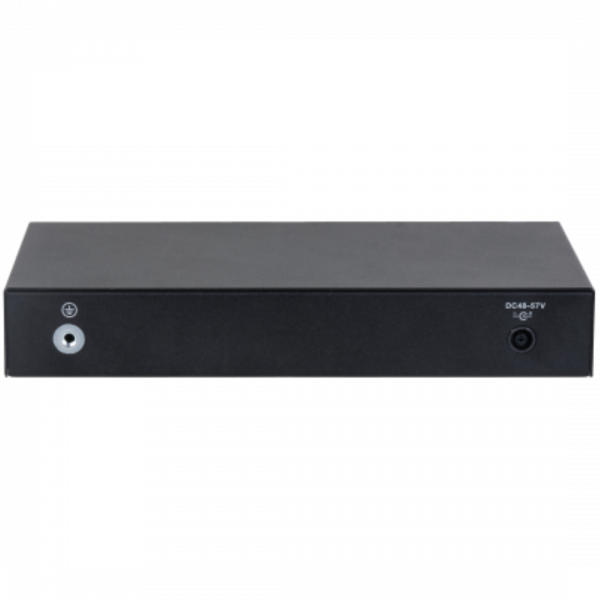

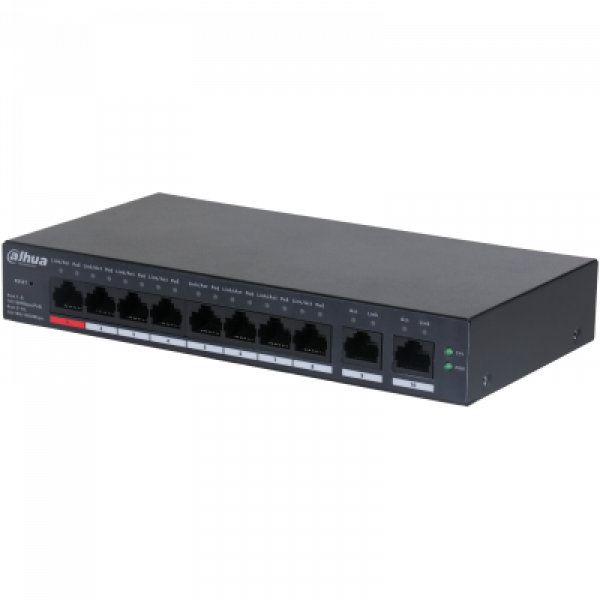

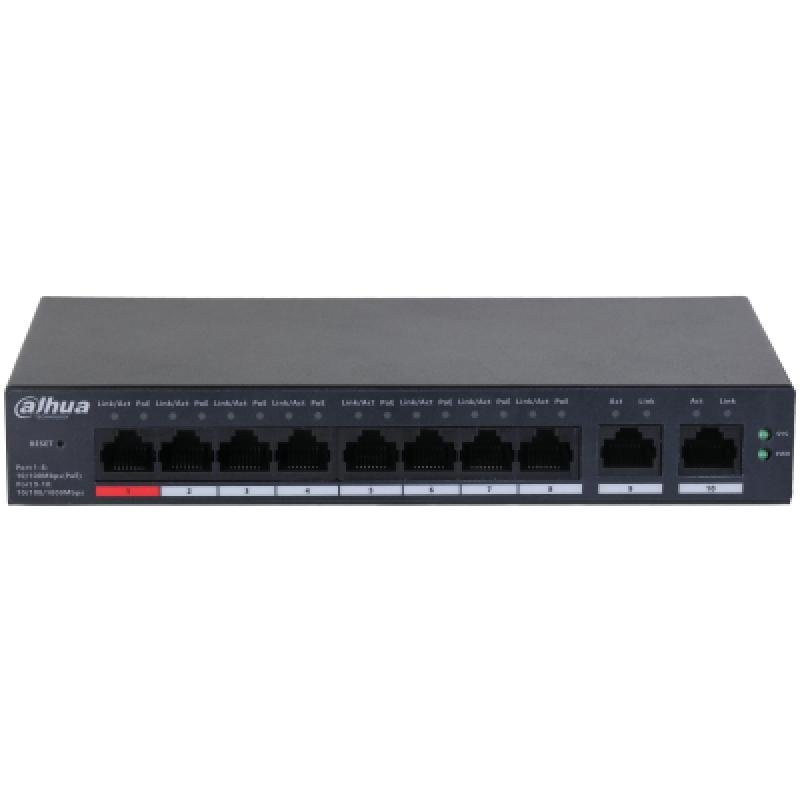

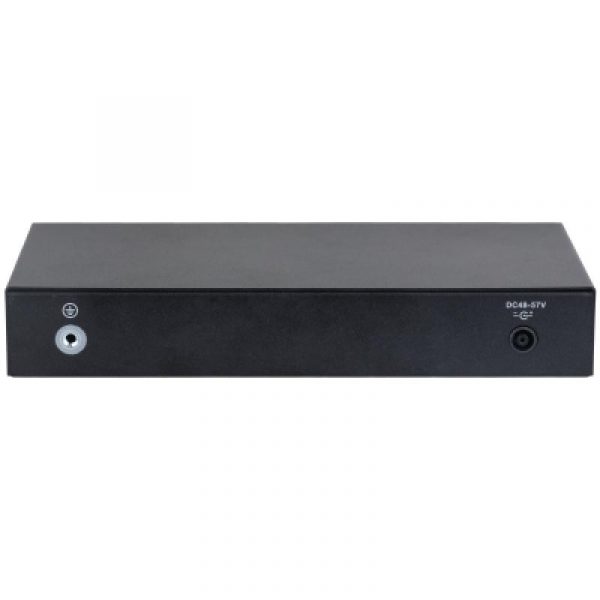

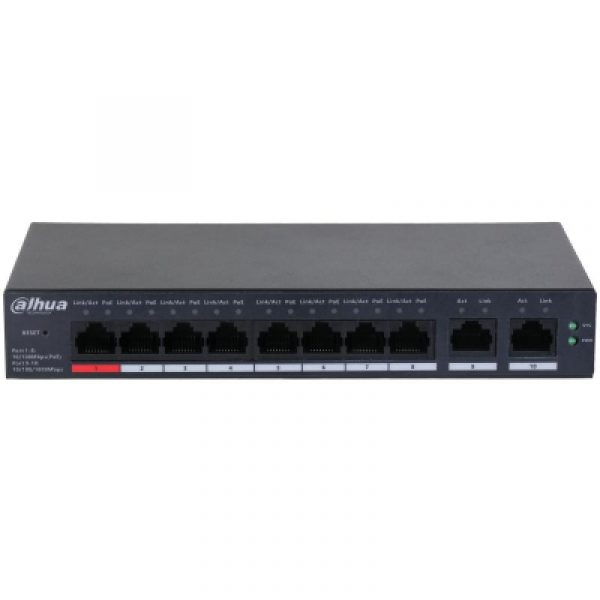

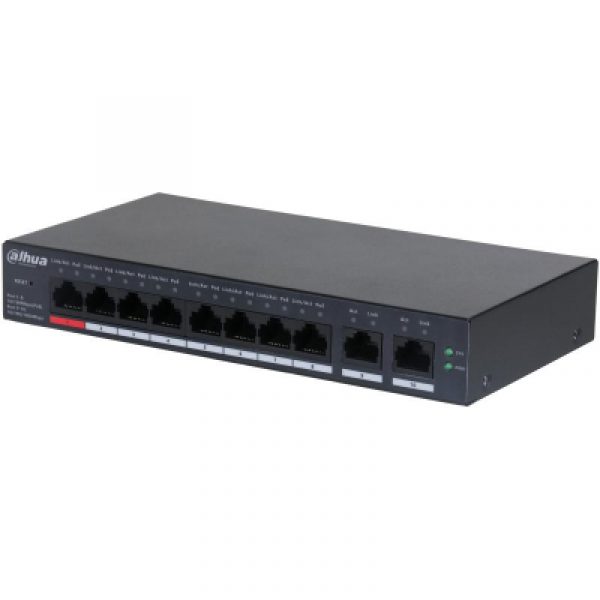

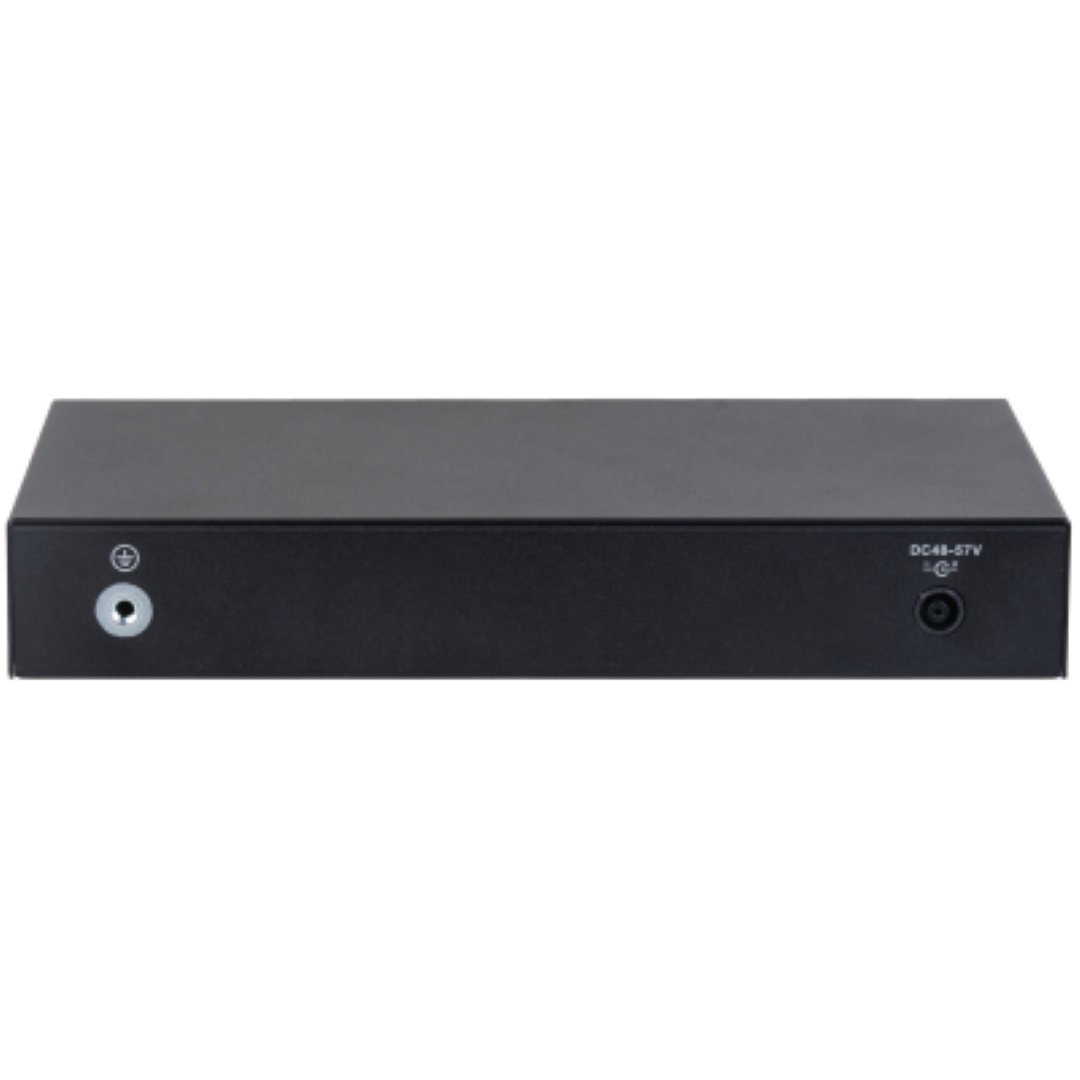

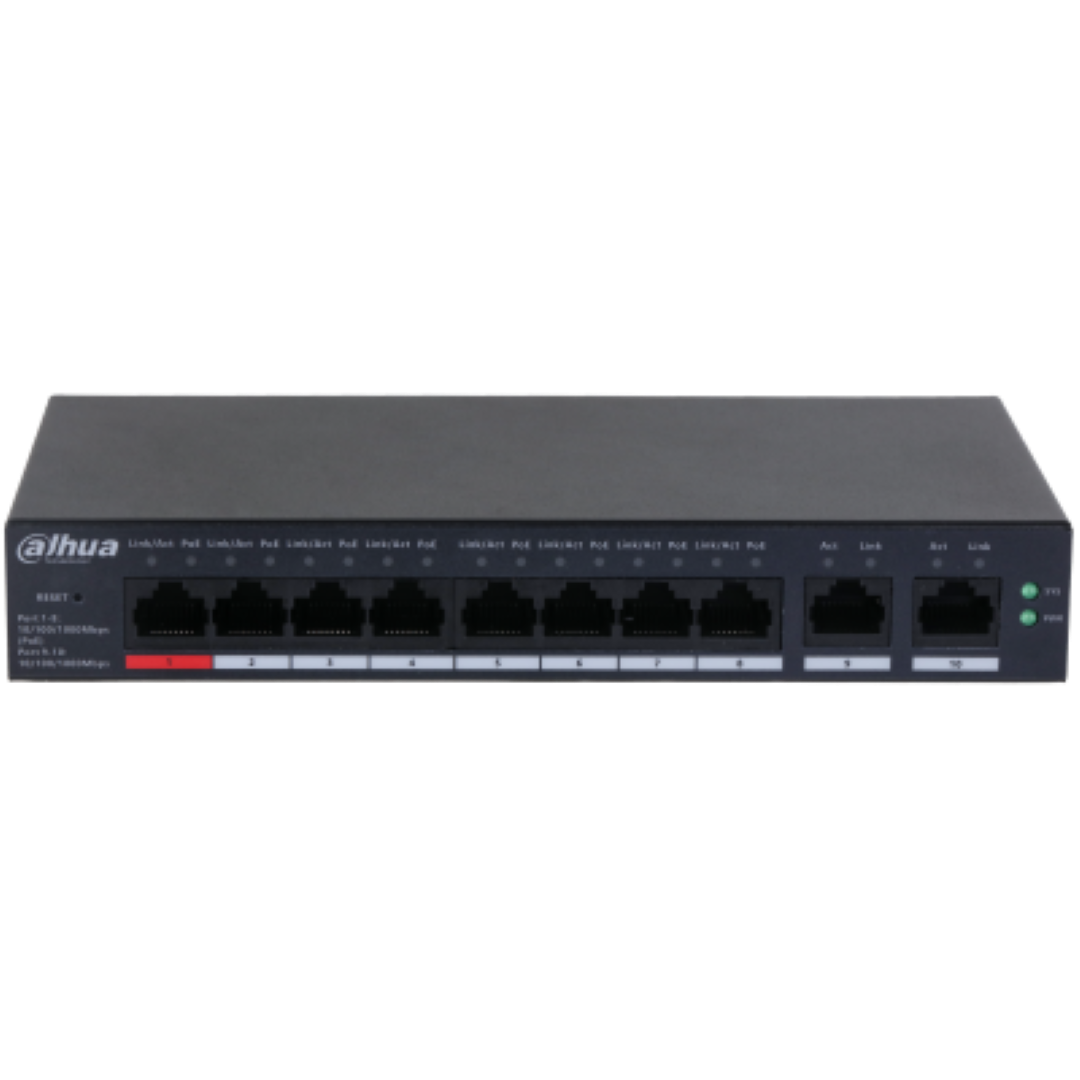

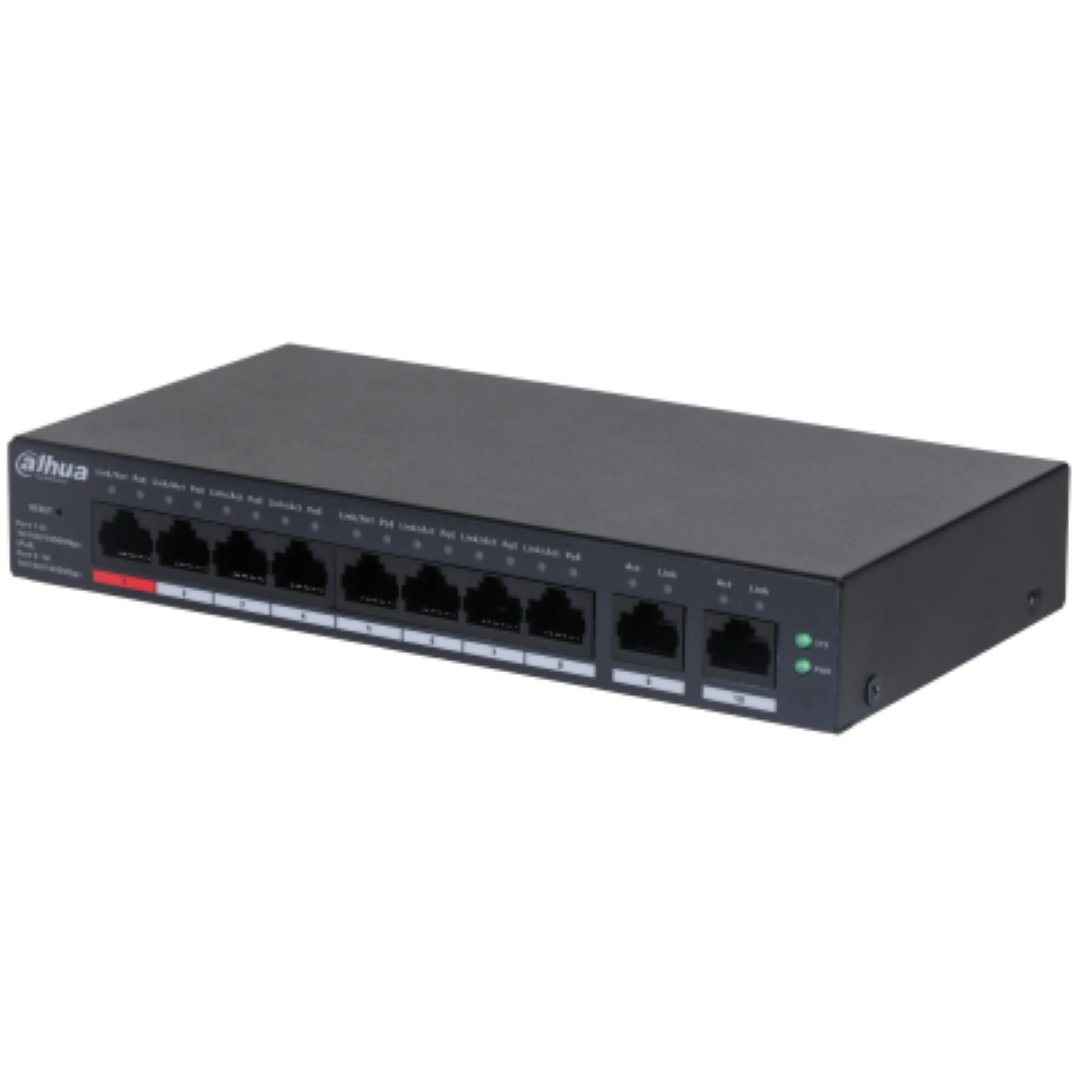

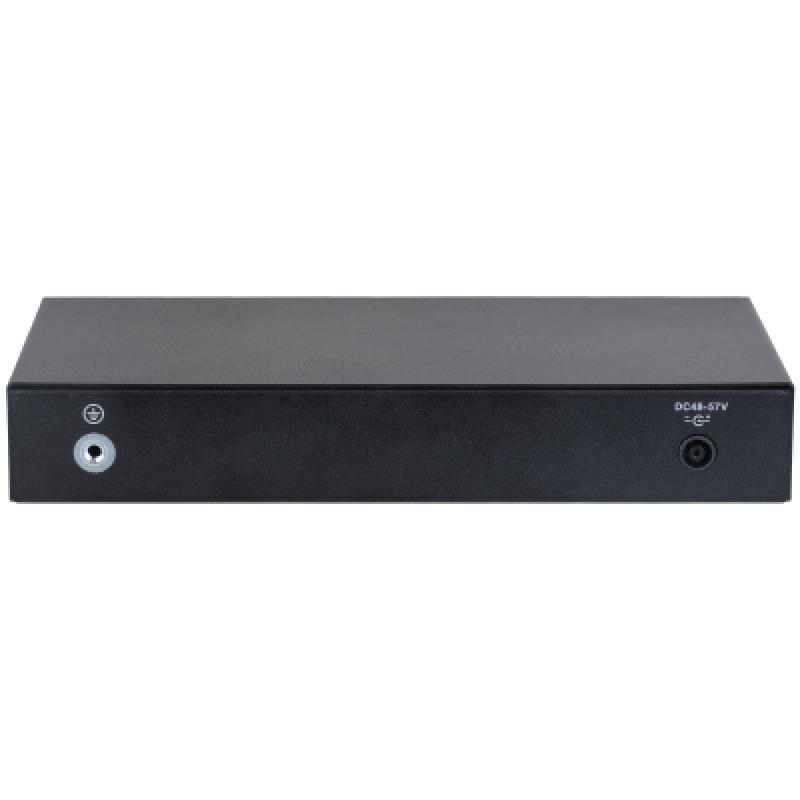

Dahua 10 Port Cloud managed POE switch CS4010-8ET-110, Interfata: Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink）, Managed, Layer 2, Switching Capacity: 5.6 Gbps, Packet Forwarding Rate: 4.17 Mpps, Standarde retea: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab, Dimensiuni: 190 mm × 106 mm × 30 mm, Carcasa metal.
| Storage temperature (T-T) | -40 – 70 °C |
|---|---|
| Sustainability compliance | Yes |
| Operating relative humidity (H-H) | 5 – 95% |
| Product colour | Black |
| Storage relative humidity (H-H) | 5 – 95% |
| Compliance certificates | CE |
| LED indicators | Yes |
| Jumbo frames support | Yes |
| Housing material | Metal |
| Power supply included | Yes |
| Height | 30 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Weight | 500 g |
| Power consumption (max) | 110 W |
| Power over Ethernet (PoE) | Yes |
| Package height | 87 mm |
| Package weight | 1.25 kg |
| Reset button | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Switch type | Managed |
| Rack mounting | No |
| Power over Ethernet (PoE) ports quantity | 8 |
| Switch layer | L2 |
| Flow control support | Yes |
| Operating temperature (T-T) | -10 – 55 °C |
| DC input voltage | 54 V |
| Width | 190 mm |
| Redundant power supply (RPS) support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth | 106 mm |
| Installed SFP modules quantity | 0 |
| Package width | 256 mm |
| 10G support | No |
| MAC address table | 8000 entries |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.5 MB |
| Basic switching RJ-45 Ethernet ports quantity | Fast Ethernet (10/100) |
| Power source | DC/PoE |
| Cloud-managed | Yes |
| DHCP features | DHCP client |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Forwarding rate | 4.17 Mpps |
| Input current | 2.22 A |
| Package depth | 244 mm |
| Switching capacity | 5.6 Gbit/s |
| Fast Ethernet (copper) ports quantity | 8 |
| Porturi RJ 45 | 5-10 |
| Viteza Transfer | Gigabit |
| Porturi SFP | N/A |
| Montare in Rack | Nu |
| Management | Da |
| PoE | Da |
| Producator | DAHUA |
| Garantie | 36 |
