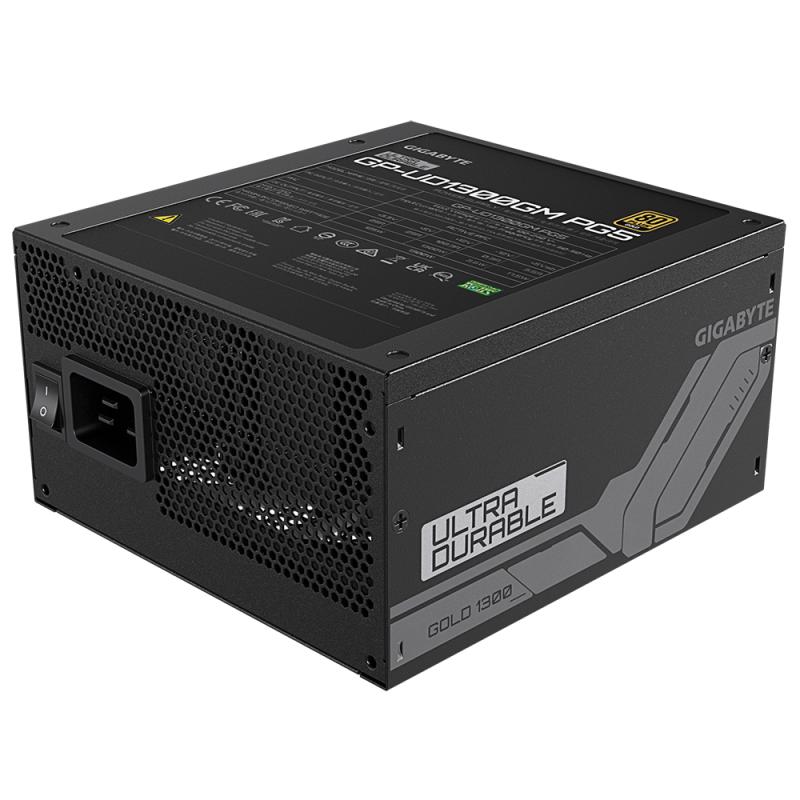

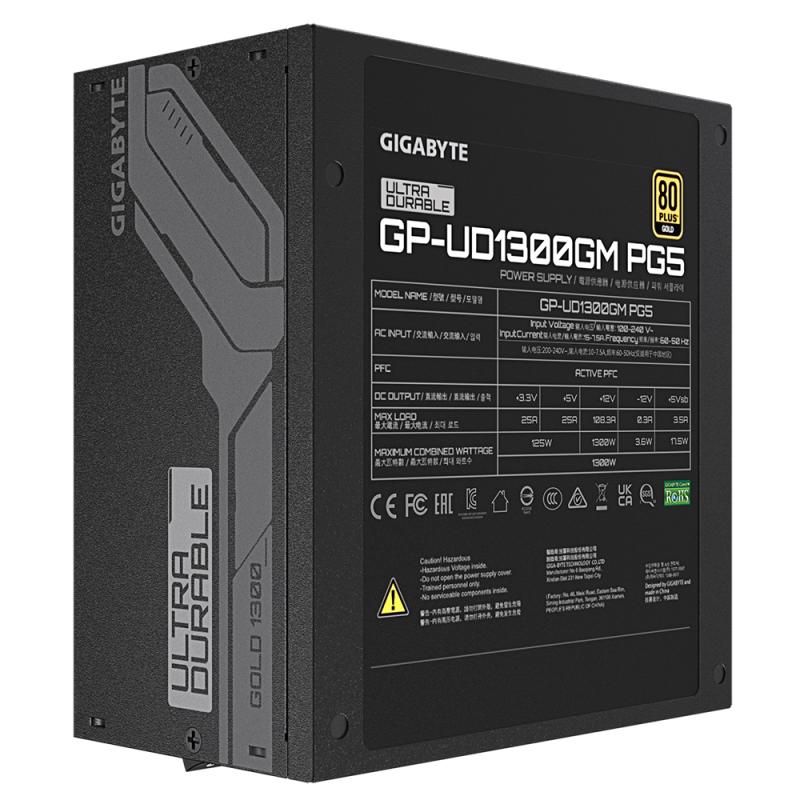

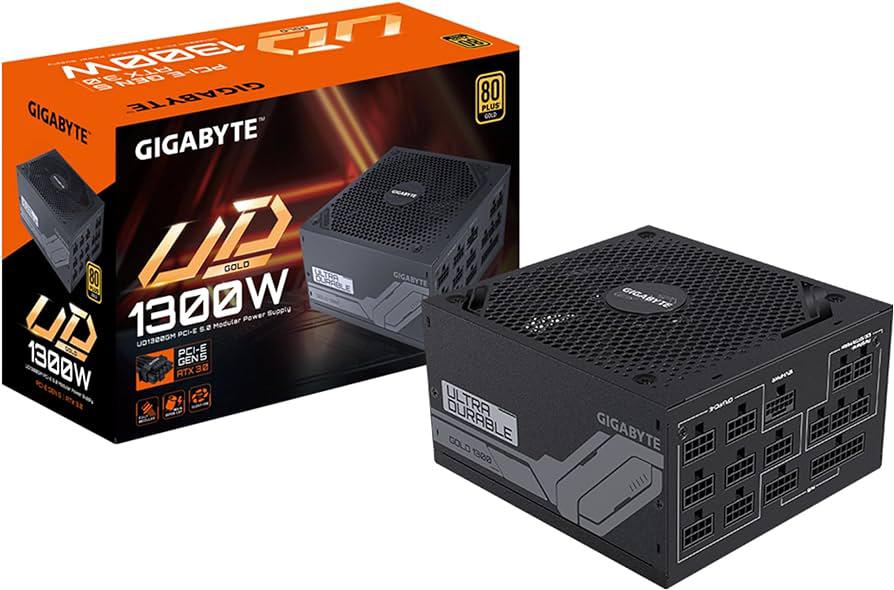

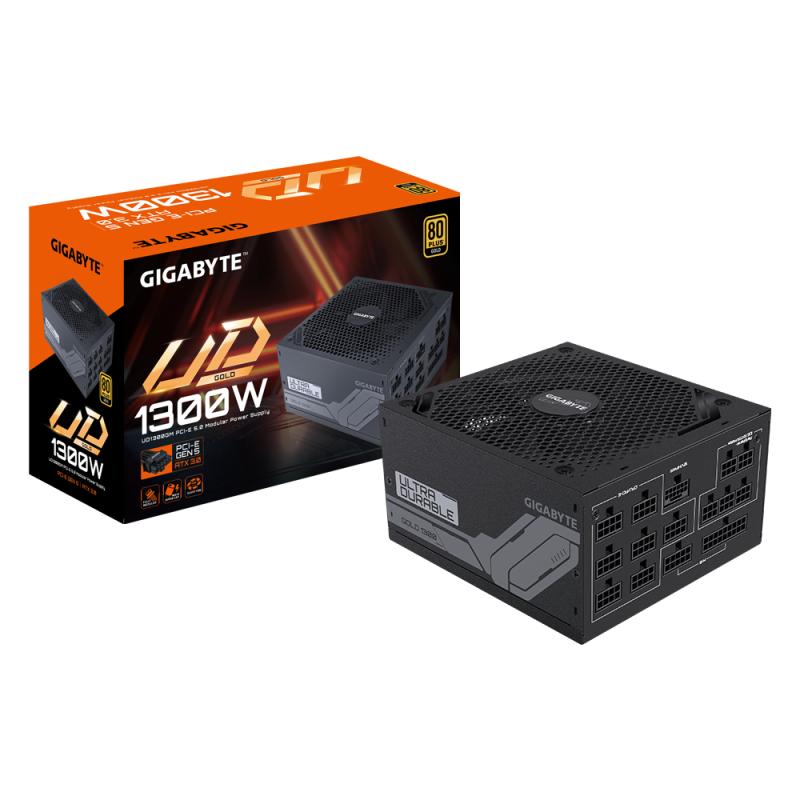

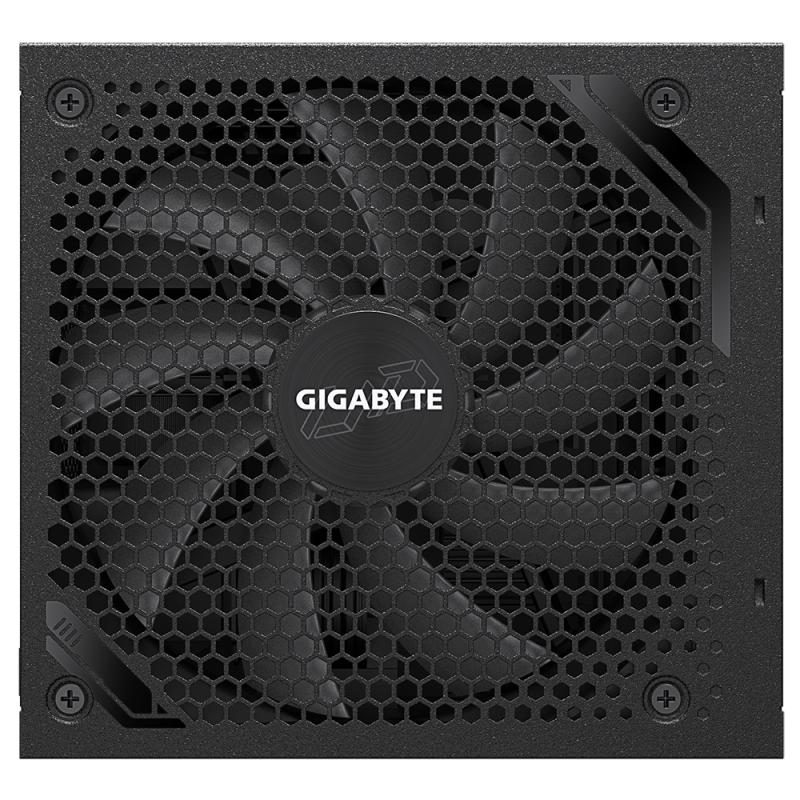

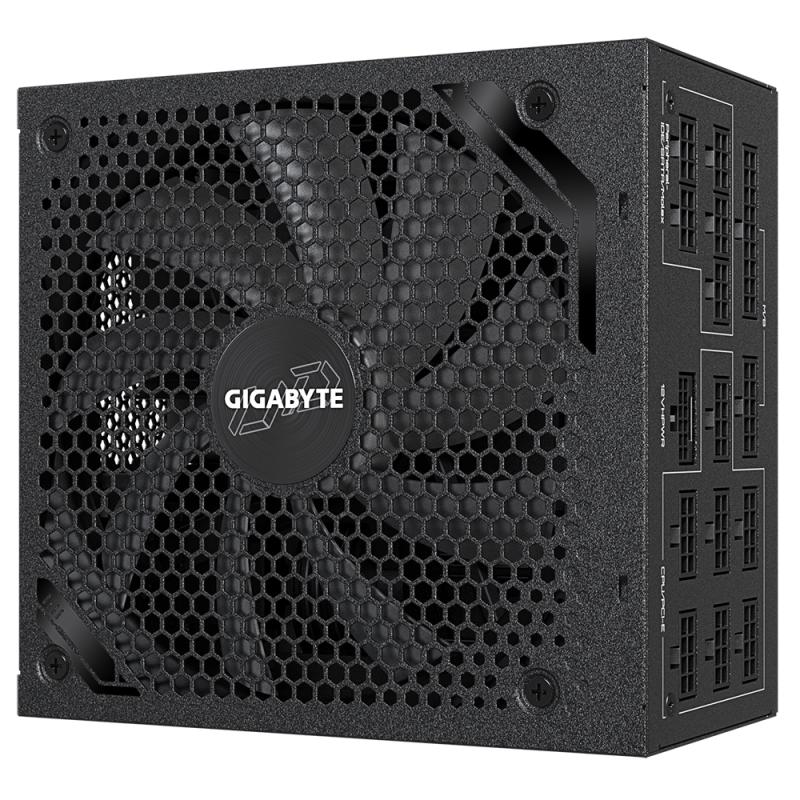

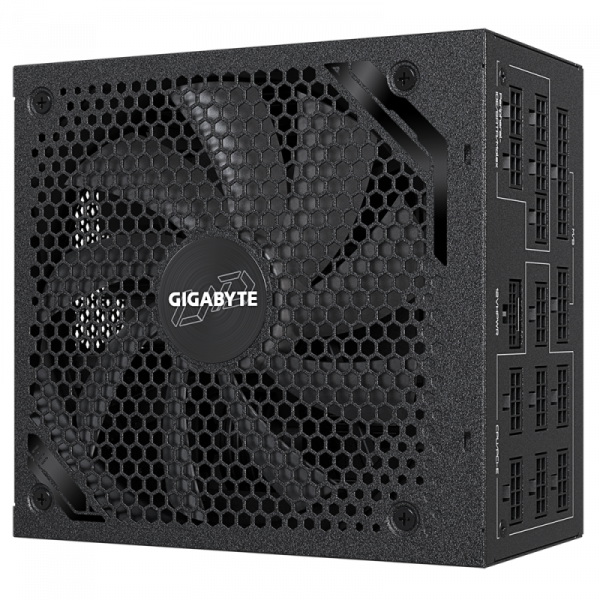

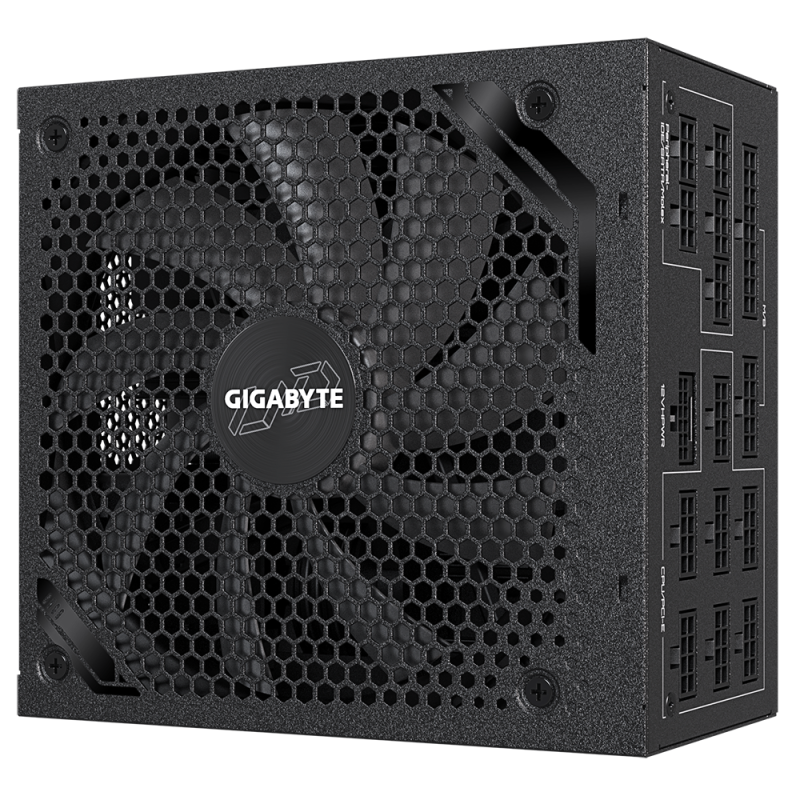

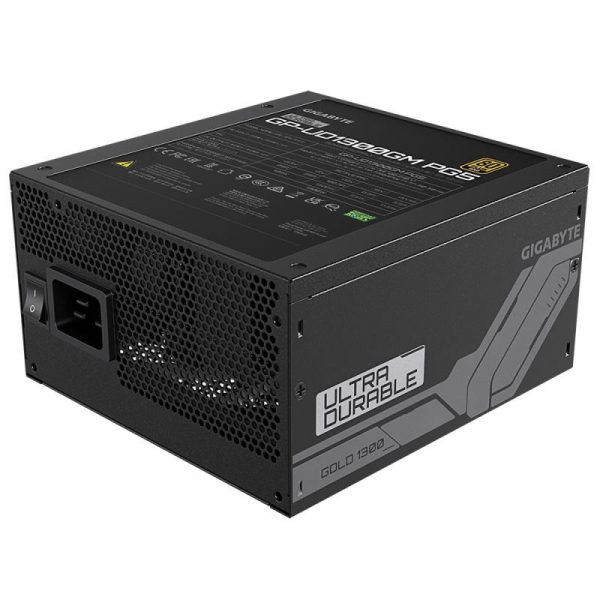

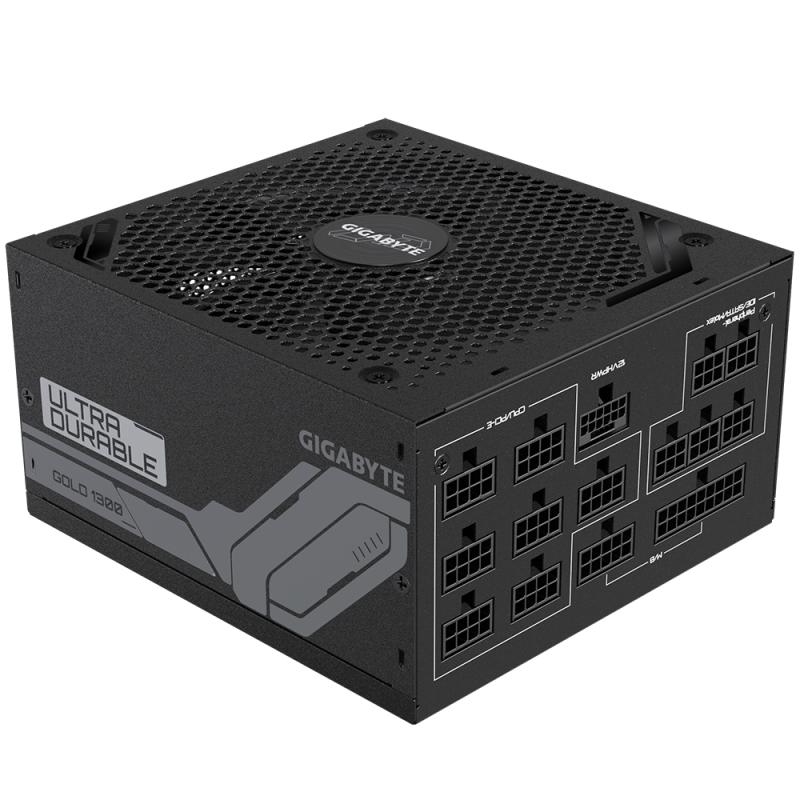

Sursa GIGABYTE UD1300GM PG5, Active PFC (>0.9 typical), 1300W 80 PLUS GOLD, 140mm double ball bearing fan
| PFC | Active |
|---|---|
| PSU Type | ATX |
| PSU-Power | 1300W |
| Warranty period | 5 year(s) |
| Depth | 160 mm |
| Number of fans | 1 fan(s) |
| Purpose | PC |
| AC input voltage | 100 – 240 V |
| Illumination | No |
| Fan diameter | 12 cm |
| Height | 86 mm |
| Width | 150 mm |
| Mean time between failures (MTBF) | 100000 h |

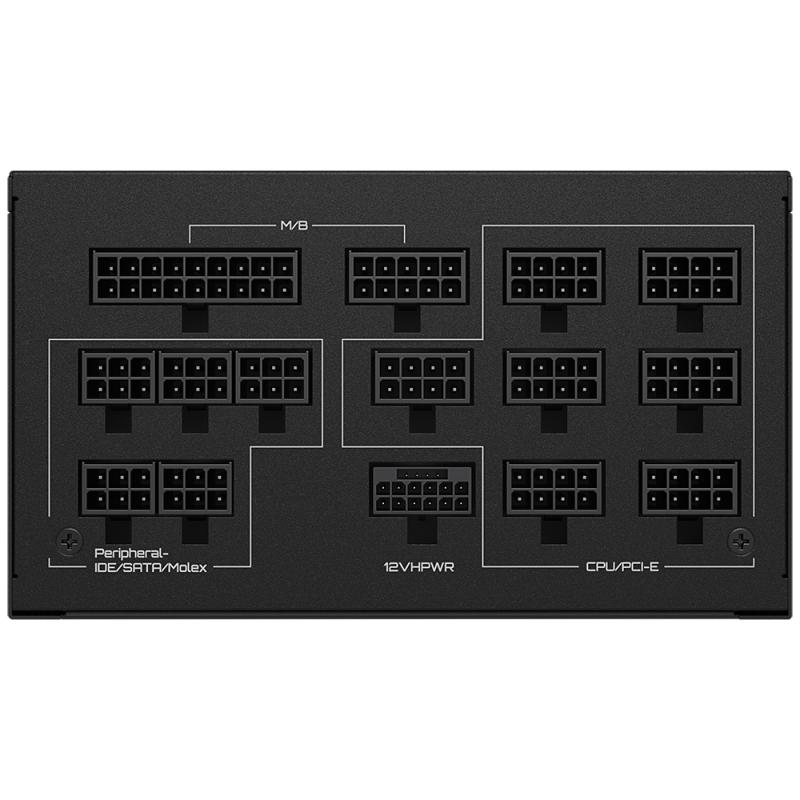

| Conectivitate | Full – Modular |
| Iluminare RGB | Nu |
| Certificare 80 Plus | 80 PLUS Gold |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Power supply unit (PSU) form factor | ATX |
| Fan location | Top |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Number of SATA power connectors | 8 |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+5Vsb) | 3.5 A |
| Motherboard power cable length | 61 cm |
| Cabling type | Fully-Modular |
| Power Factor Correction (PFC) type | Active |
| 80 PLUS certification | 80 PLUS Gold |
| Cable tie(s) included | Yes |
| Efficiency | 90% |
| PCI Express power connectors (6-pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power cable length | 70 cm |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Input current | 12 – 6 A |
| Number of PATA power connectors | 3 |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 12 A |
| Total power | 1300 W |
| Combined power (+12V) | 1300 W |
| Max output current (+12V) | 108.3 A |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power cable length | 200,600 mm |
| Cables included | CPU, PATA, Peripheral (Molex), SATA |
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS |
| Producator | GIGABYTE |
| Garantie | 120 |
