General | |
Recomandat pentru Gaming |
Da
|
Tip |
ATX
|
Putere |
850 W
|
Numar ventilatoare |
1x 120 mm
|
PFC |
Active
|
Eficienta |
90 %
|
Certificare |
80+ Gold
|
Dimensiuni |
150 x 140 x 86 mm
|
Modulara |
Da, Full Modulara
|
Protectii |
OCP, OVP, UVP, SCP, OTP, OPP
|
Voltaje/Amperaje | |
Rail +12V |
1
|
+3.3V |
20 A
|
+5V |
20 A
|
+12V 1 |
70.8 A
|
-12V |
0.3 A
|
+5Vsb |
3 A
|

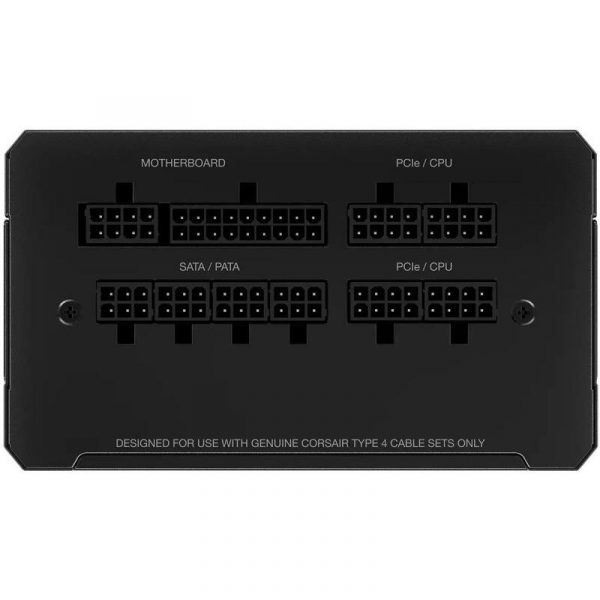

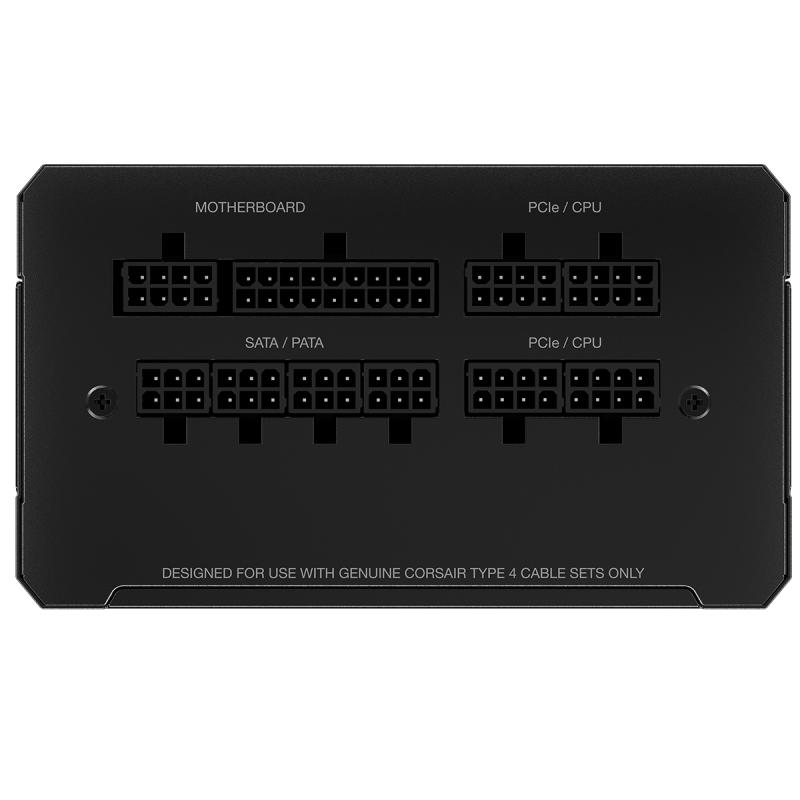

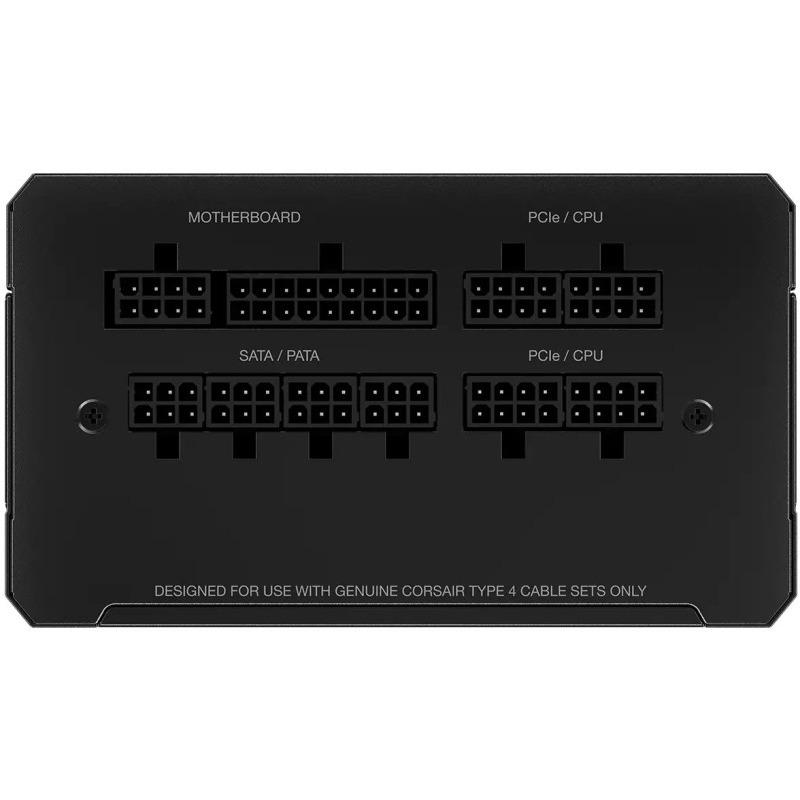

Conectori | |
20+4 Pin ATX |
1
|
4+4 Pin ATX/EPS |
2
|
6+2 PCI-E |
3
|
SATA |
7
|
Molex |
4
|
PFC | Active |
---|---|
PSU-Power | 751W – 1000W |
PSU Type | ATX |
Number of fans | 1 fan(s) |
On/off switch | Yes |
Purpose | PC |
Weight | 1.52 kg |
AC input voltage | 100 – 240 V |
EPS power connector (8-pin) | Yes |
Fan diameter | 12 cm |
Mean time between failures (MTBF) | 100000 h |
Conectivitate | Full – Modular |
Iluminare RGB | Nu |
Certificare 80 Plus | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Fan location | Top |
Combined power (+5Vsb) | 15 W |
Max output current (+5Vsb) | 3 A |
Motherboard power connector | 24-pin ATX |
ATX version | 2.4 |
Combined power (+3.3V) | 150 W |
Combined power (+5V) | 150 W |
Motherboard power cable length | 61 cm |
Cabling type | Fully-Modular |
Silent mode | Yes |
Max output current (+3.3V) | 20 A |
Max output current (+5V) | 20 A |
80 PLUS certification | 80 PLUS Gold |
PCI Express power connectors (6-pin) | 2 |
Input current | 10 – 5 A |
Total power | 850 W |
Max output current (+12V) | 70.8 A |
Combined power (+12V) | 850 W |
Number of PATA power connectors | 4 |
Number of SATA power connectors | 7 |
SATA power cable length | 700,800 mm |
Producator | CORSAIR |
Garantie | 24 |
