| General | |
| Recomandat pentru Gaming |
Da
|
| Tip |
ATX 2.4
|
| Putere |
750 W
|
| Numar ventilatoare |
1x 135 mm
|
| Voltaj/Amperaj |
100-240Vac
|
| PFC |
Active
|
| Eficienta |
90 %
|
| Certificare |
80+ Gold
|
| Dimensiuni |
160 x 150 x 86 mm
|
| Modulara |
Da, Full Modulara
|
| Protectii |
OVP, UVP, SCP, OTP, OPP
|
| Voltaje/Amperaje | |
| Rail +12V |
1
|
| +3.3V |
20 A
|
| +5V |
20 A
|
| +12V 1 |
62.5 A
|
| -12V |
0.3 A
|
| +5Vsb |
3 A
|

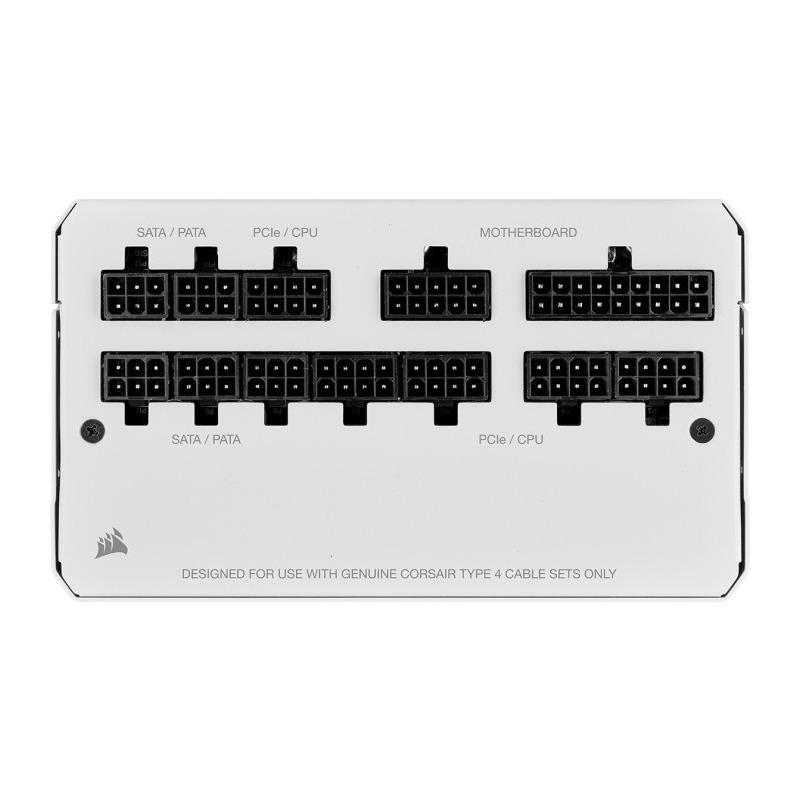

| Conectori | |
| 20+4 Pin ATX |
1
|
| 4+4 Pin ATX/EPS |
3
|
| 6+2 PCI-E |
4
|
| SATA |
14
|
| Molex |
4
|
| Asamblare | |
| Permite Asamblare |
Premium, Gold
|
| Permite Wire Management |
Da
|
| PFC | Active |
|---|---|
| PSU-Power | 501W-750W |
| PSU Type | ATX |
| Product colour | White |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Purpose | PC |
| Harmonized System (HS) code | 84733020 |
| AC input voltage | 100 – 240 V |
| Mean time between failures (MTBF) | 100000 h |
| Conectivitate | Full – Modular |
| Iluminare RGB | Nu |
| Certificare 80 Plus | 80 PLUS Gold |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6-pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Power supply unit (PSU) form factor | ATX |
| Total power | 750 W |
| Combined power (+12V) | 750 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+12V) | 62.5 A |
| Max output current (+5Vsb) | 3 A |
| Motherboard power connector | 24-pin ATX |
| ATX version | 2.4 |
| Combined power (+3.3V) | 150 W |
| Combined power (+5V) | 150 W |
| Motherboard power cable length | 61 cm |
| Peripheral (Molex) power cable length | 750 mm |
| Cabling type | Fully-Modular |
| Fan diameter | 14 cm |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| 80 PLUS certification | 80 PLUS Gold |
| PCI Express power cable length | 75 cm |
| Input current | 10 – 5 A |
| CPU power cable length | 65 cm |
| SATA power cable length | 750,850 mm |
| Bearing technology | Rifle |
| Peripheral (Molex) power connectors (4-pin) | 5 |

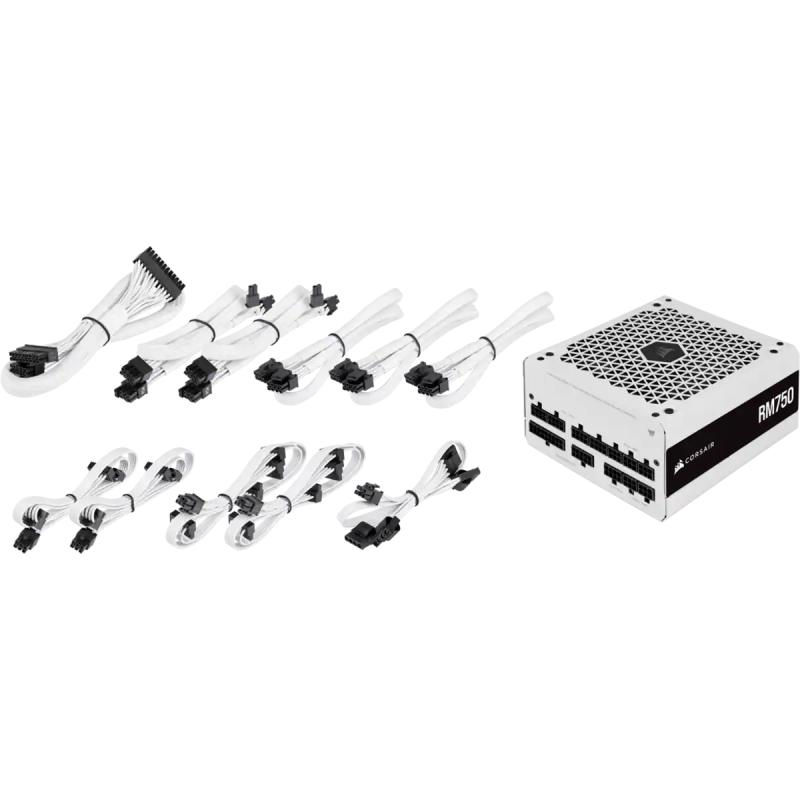

| Cables included | CPU, PATA, PCIe, SATA |
| Weight | 1.57 kg |
| Producator | CORSAIR |
| Garantie | 120 |
