Includes a patented mechanism to fit various screen types and screens with special back structure.
-

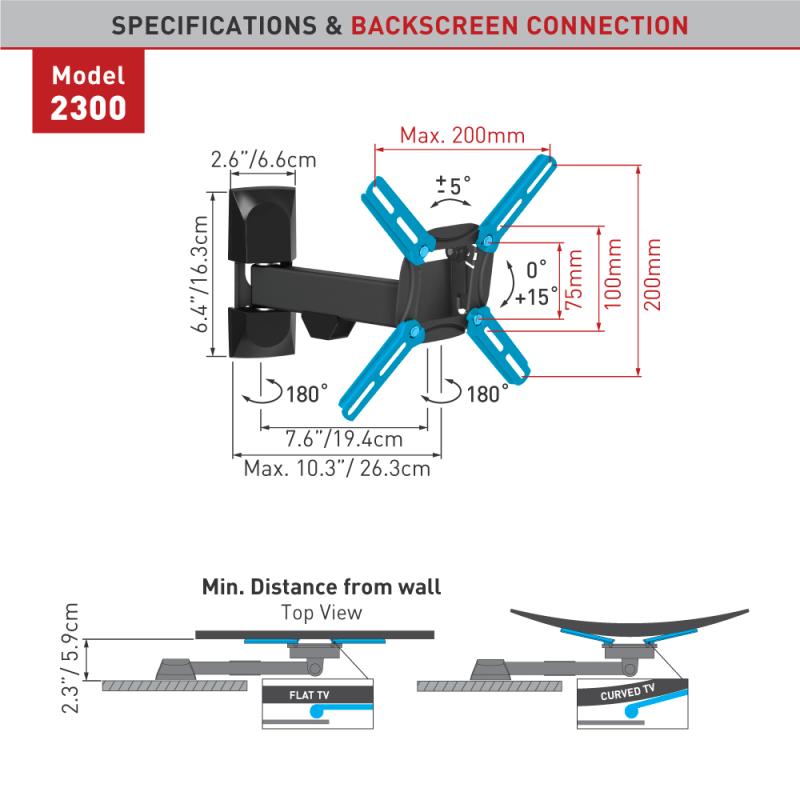

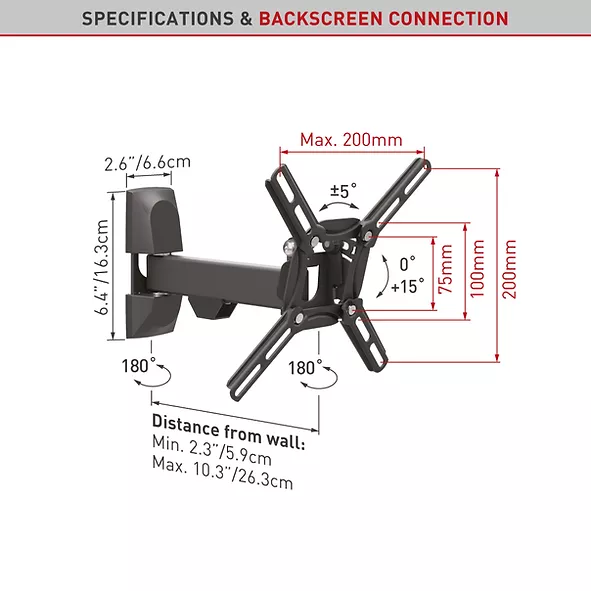

Minimum distance from the wall: 2.3″ / 5.9 cm.
-
Maximum distance from the wall: 10.3″ / 26.3 cm.
-

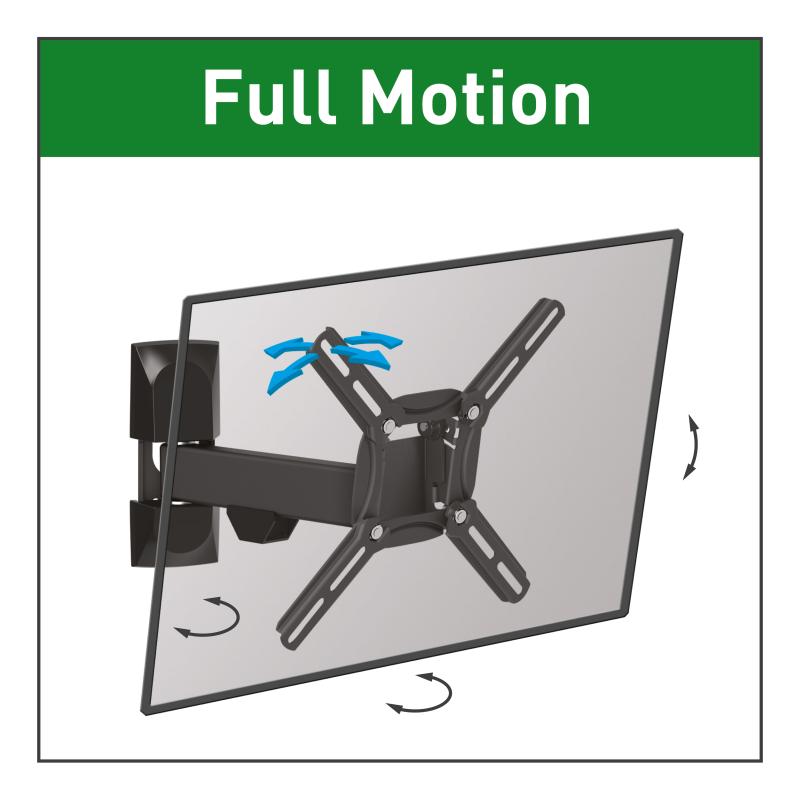

The mount has 2 pivots which: rotate near the wall 180°, swivel near the screen connection plate 180° in addition to a tool free tilt from 0° till 15°.
-
Fits TVs with VESA (Bracket Mounting Holes Patterns) 75×75, 100×100, 100×200, 200×100, 200×200 mm and non VESA up to 200×200 mm.
Suporturi TV / Monitor

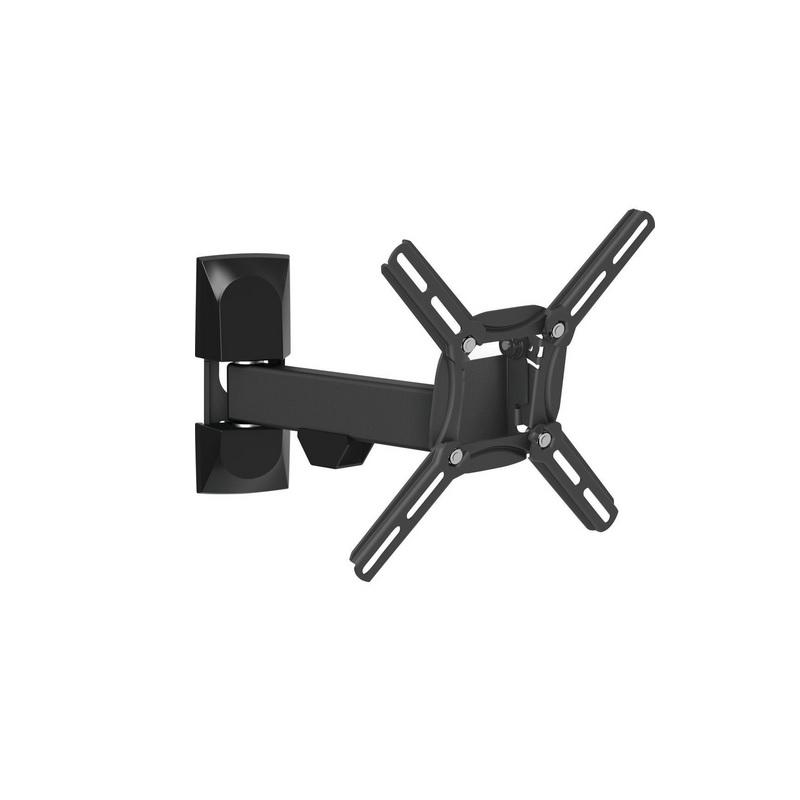

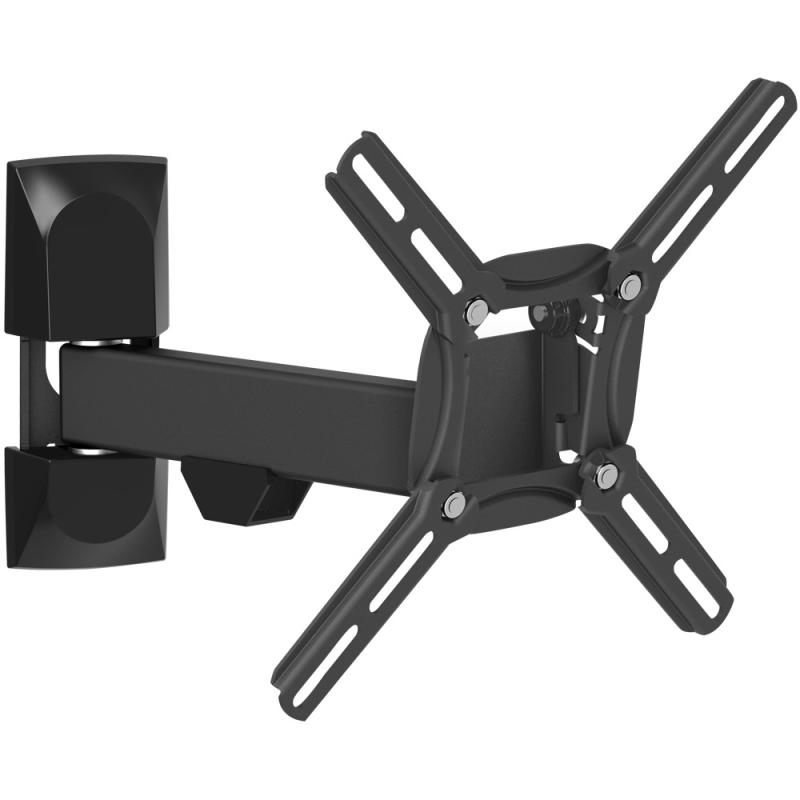

Suport TV de perete, Barkan 2300.B, Reglabil, 19"- 39", VESA
Producator:
Barkan
Disponibilitate:
În stoc
65,99lei 98,98lei
În stoc
Marime maxima ecran | intre 31"-40" |
---|---|
Montare | Perete |
Tip miscare suport | 3-movement |
Greutate maxima suportata | sub 30 kg |
Montare perete | 200×200 |
Product colour | Black |
Swivel angle range | 0 – 180° |
Width | 200 mm |
Number of displays supported | 1 |
Height | 200 mm |
Mounting type | Wall |
Tip Suport | Fix |
Sistem rotativ | Da |
Dimensiune VESA minima | 75 x 75 mm |
Dimensiune VESA maxima | 200 x 200 mm |
Nr ecrane suportate | 1 |
Minimum VESA mount | 75 x 75 mm |
Angle of rotation | 180° |
Maximum screen size | 99.1 cm (39) |
Maximum VESA mount | 200 x 200 mm |
Panel mounting interface | 75 x 75,100 x 100,100 x 200,200 x 100,200 x 200 |
Tilt angle range | 0 – 15° |
Distance to the wall (min) | 5.9 cm |
Maximum weight capacity | 25 kg |
Minimum screen size | 33 cm (13) |
Number of pivot points | 2 |
Distance to the wall (max) | 26.3 cm |
Depth | 263 mm |
Producator | BARKAN |
Garantie | 999 |
Nu există recenzii încă.
