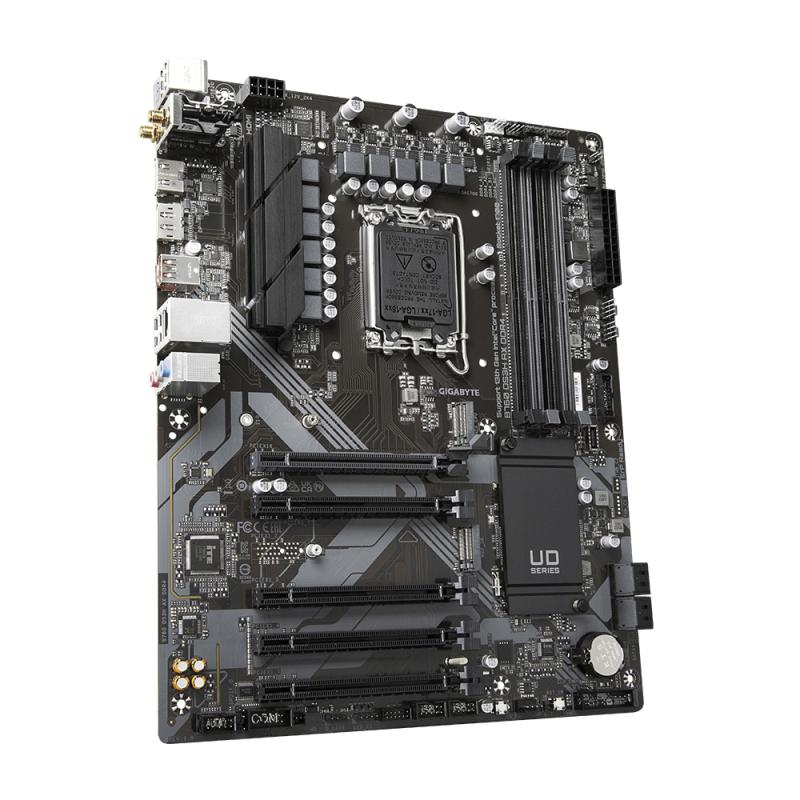

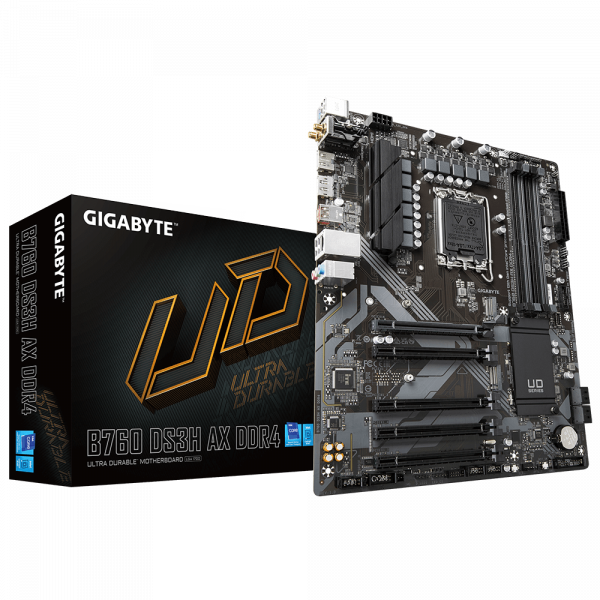

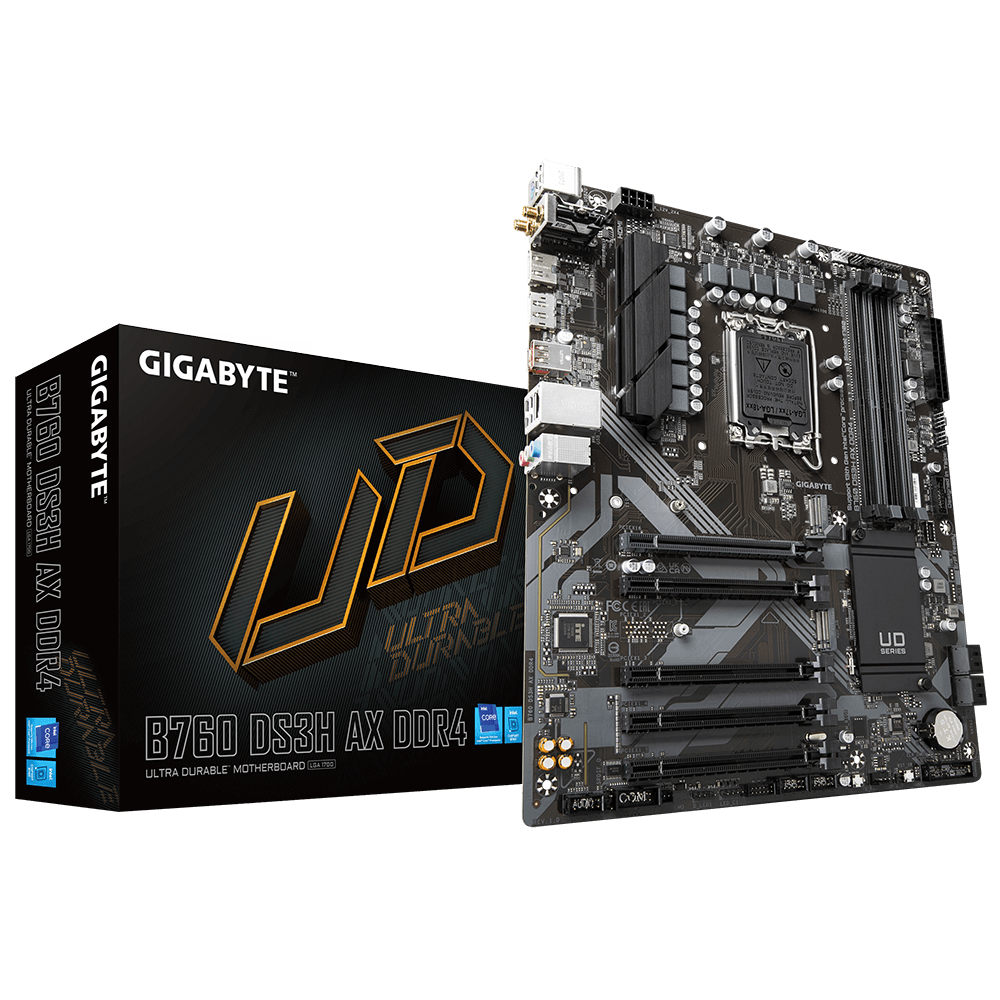

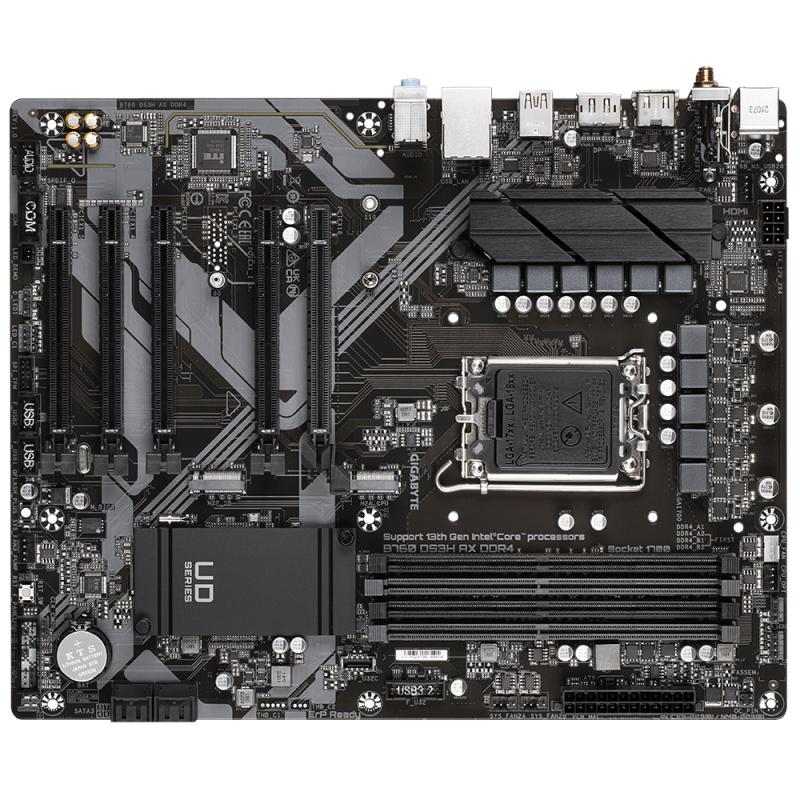

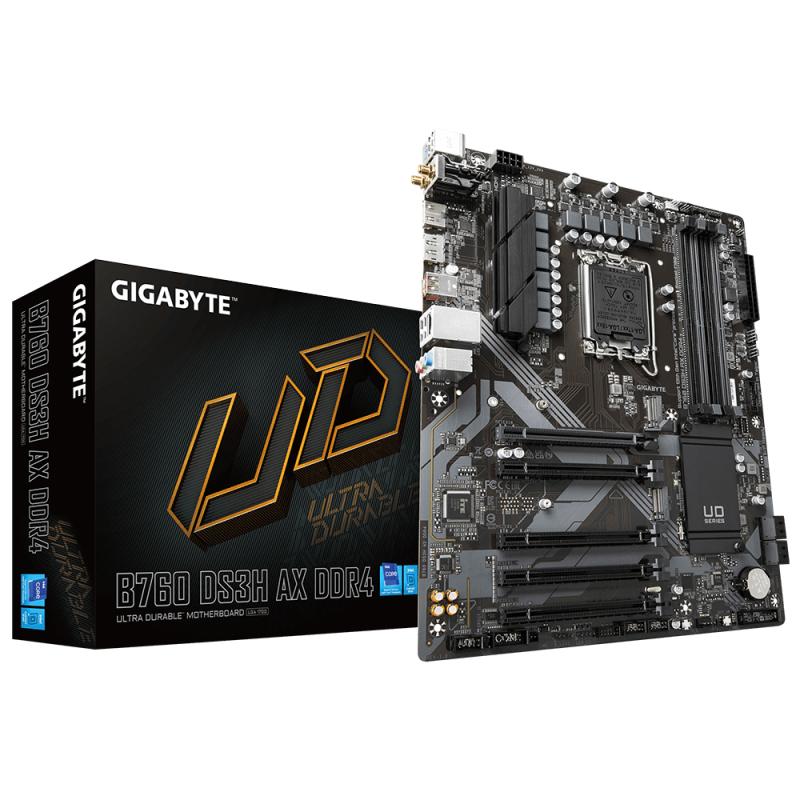

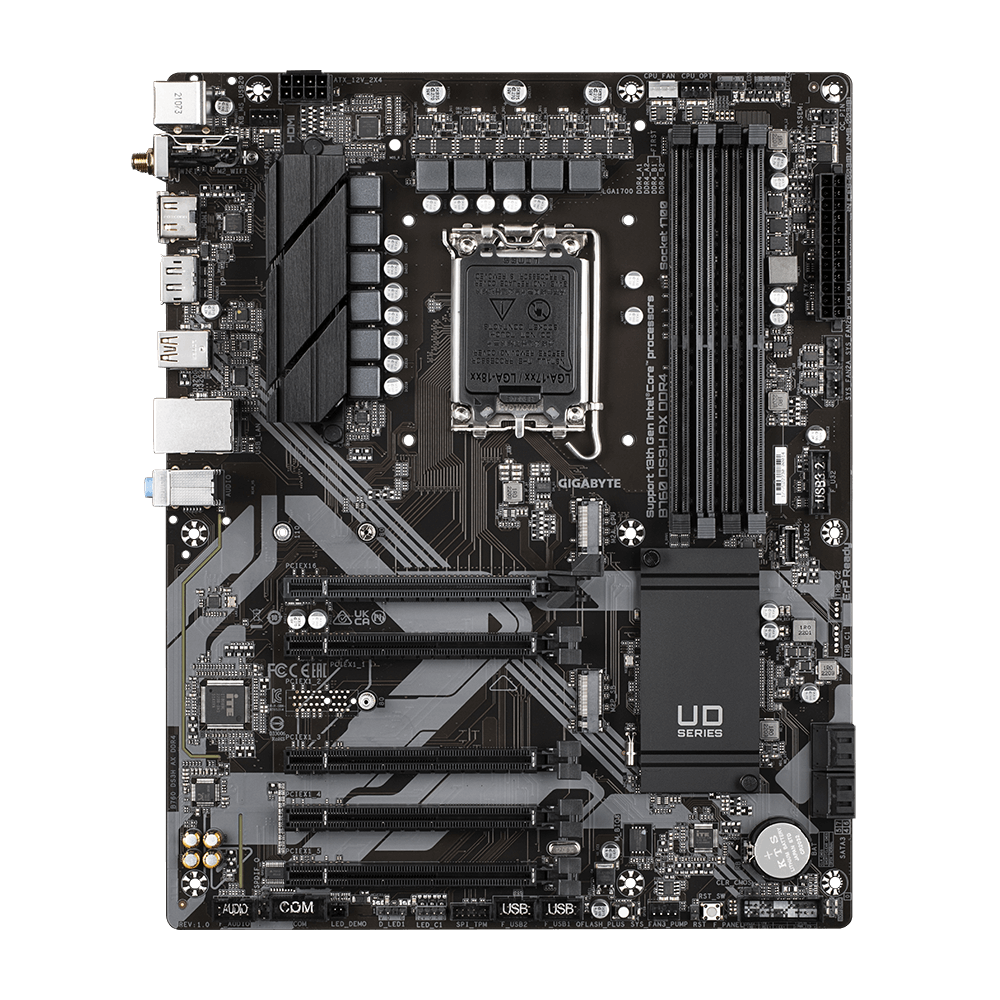

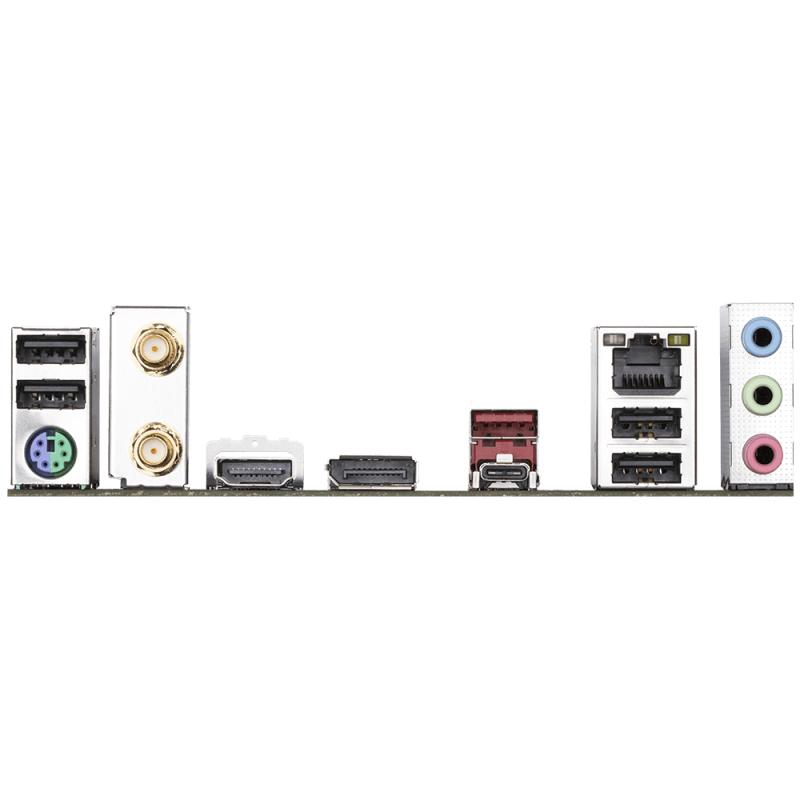

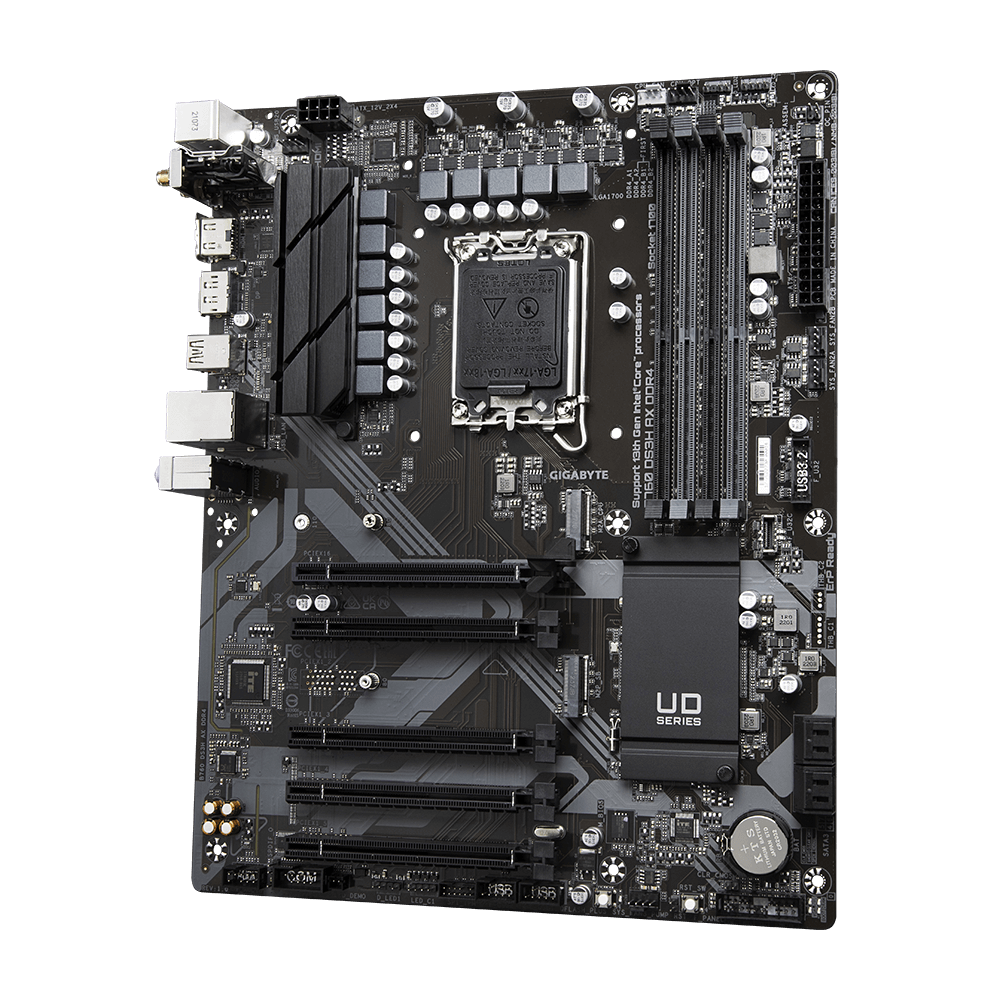

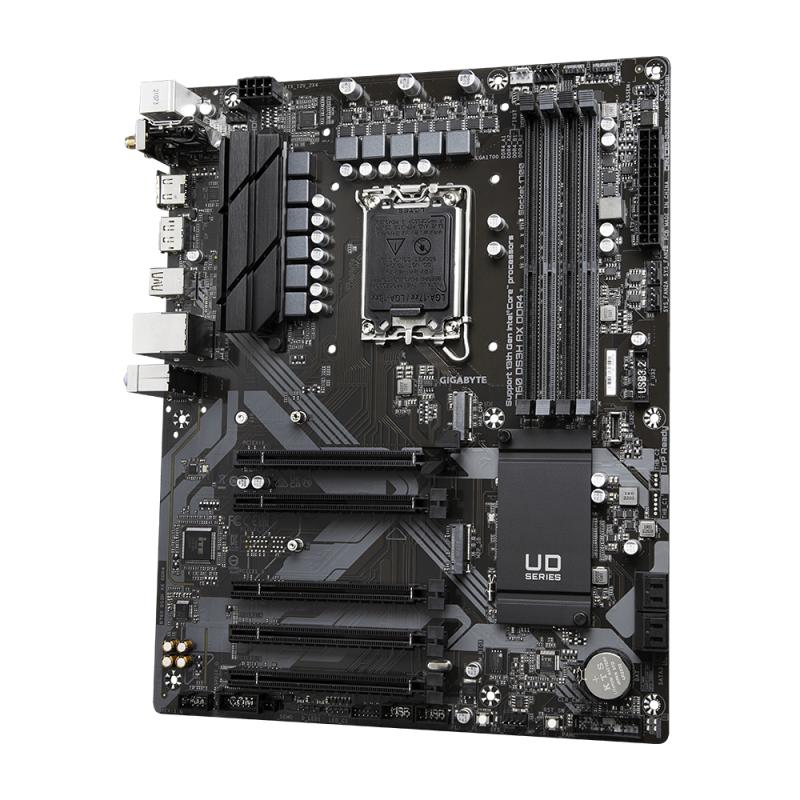

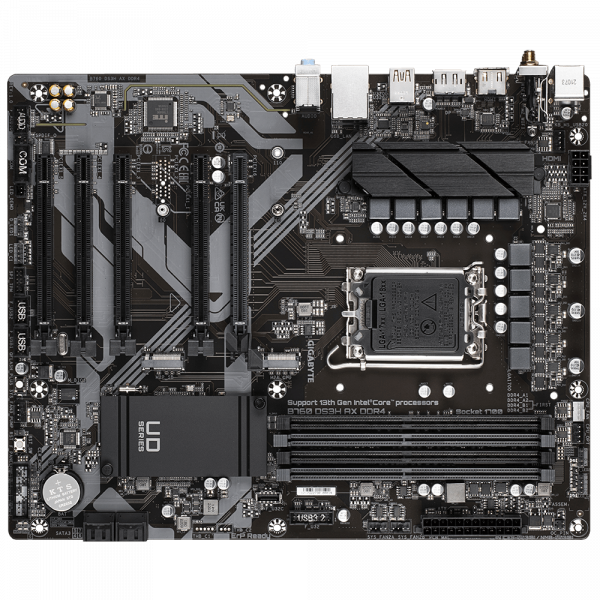

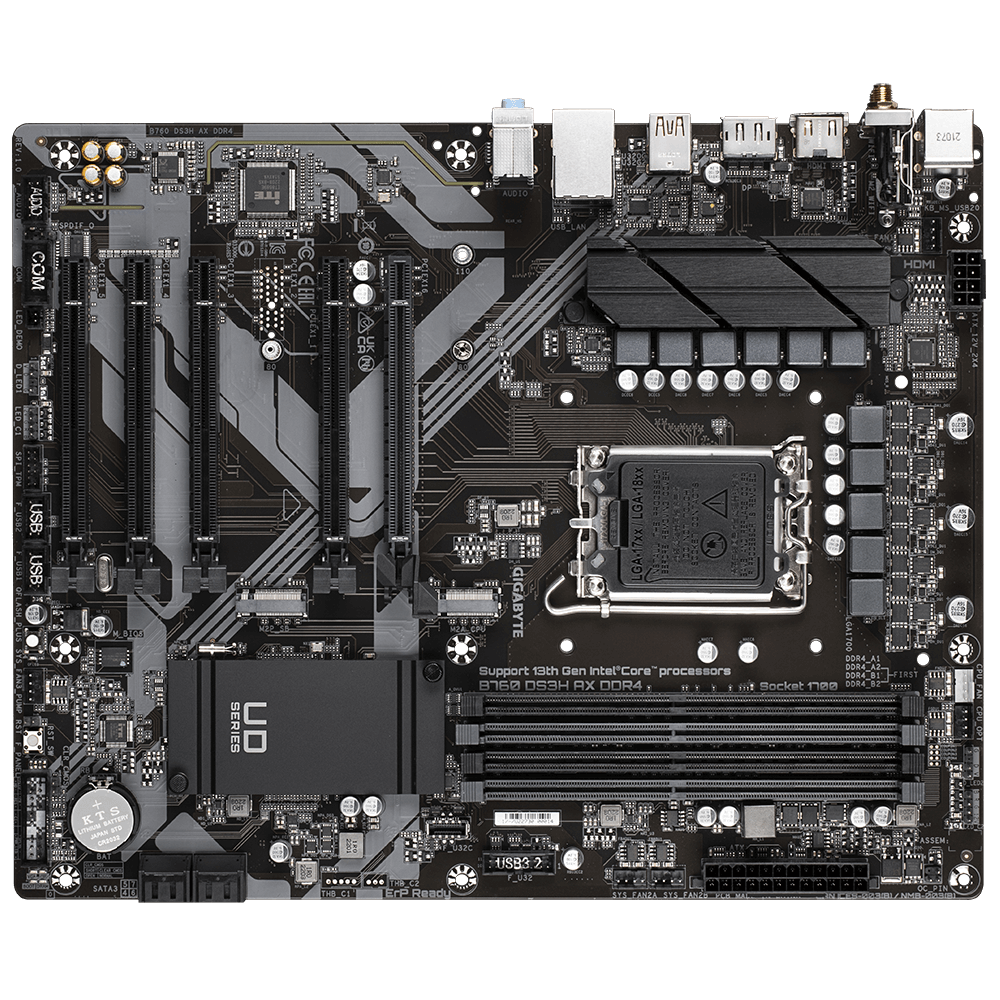

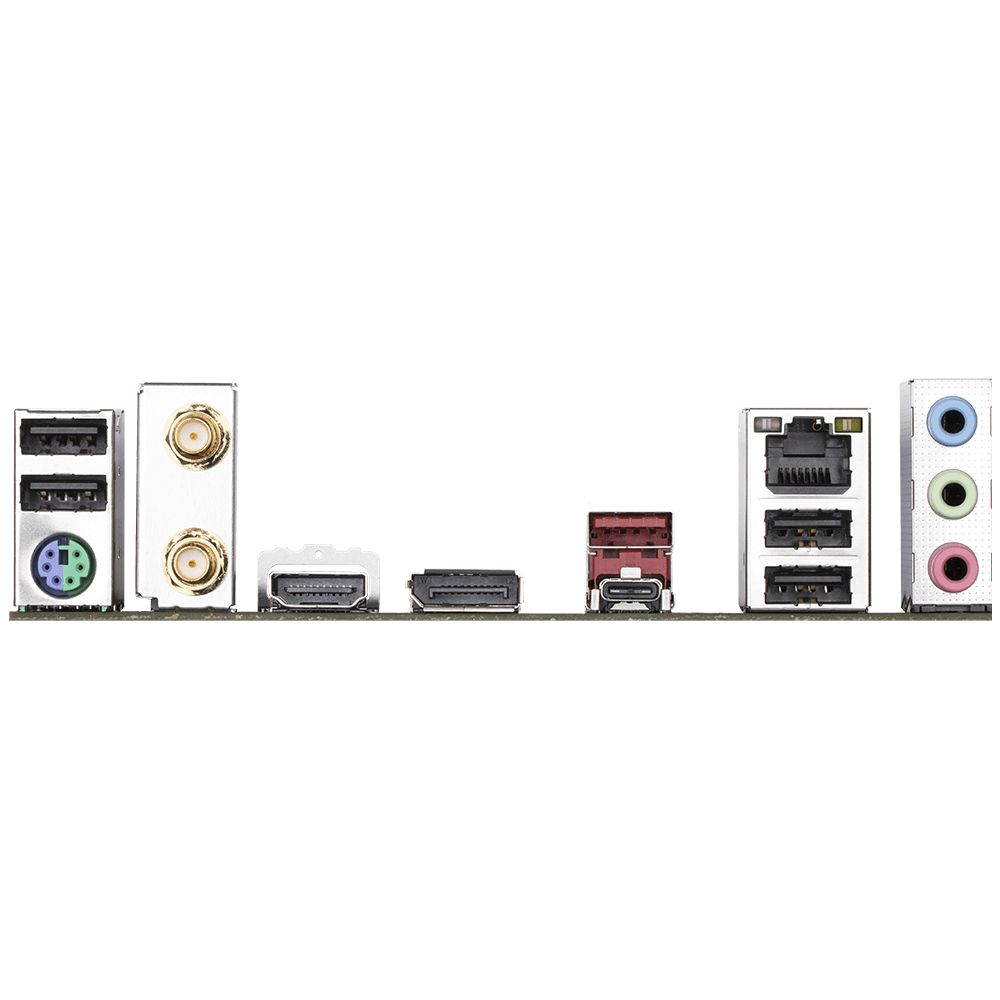

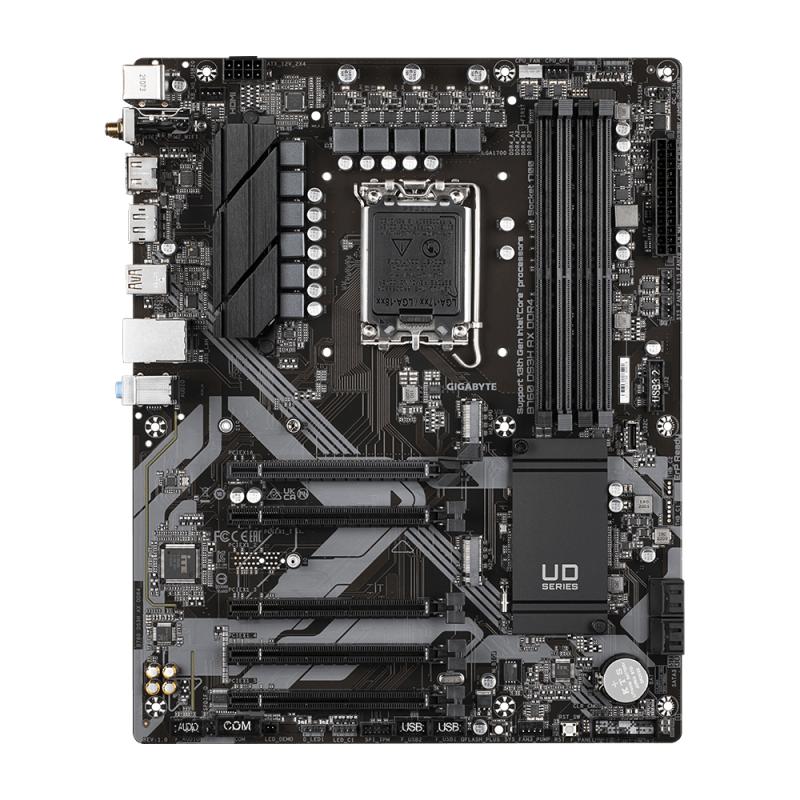

Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 3
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 4
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 5
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 6
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 7
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 8
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 9
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 10
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 11
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 12
Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700 - imagine 13

Placa de bază Gigabyte B760 DS3H AX DDR4 LGA1700

SKU: B760 DS3H AX DDR4
Producator: Gigabyte
Disponibilitate:

În stoc
Add to wishlist
Compare

678,99 lei 914,99 lei

În stoc

Placa de baza Gigabyte B760 DS3H AX DDR4 LGA1700, 4x DDR4 5333MHz, 1x HDMI, 1x DisplayPort, 5x PCIe x16, 2x M.2, 4x SATA 6Gb/s, LAN 1Gbps, WIFI 6E, ATX

SKU: B760 DS3H AX DDR4 Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

Yes
Onboard-CPU

No
RAID support

Yes
Component for

PC
USB connector type

USB Type-A, USB Type-C
Ethernet interface type

Gigabit Ethernet
Memory channels

Dual-channel
Processor manufacturer

Intel
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Ethernet LAN

Yes
HDMI ports quantity

1
Maximum internal memory

128 GB
HDMI version

2.0
USB 3.2 Gen 2x2 Type-C ports quantity

1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 2.0 ports quantity

4
Audio output channels

7.1 channels
Supported storage drive types

HDD & SSD
Supported memory types

DDR4-SDRAM
Number of M.2 (M) slots

2
HDCP

Yes
DisplayPort version

1.2
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Model Chipset

B760
Gaming

Nu
Format

ATX
Soclu Procesor

Socket 1700
Tip Memorie

DDR4
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

PCIe 4.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Da
BLUETOOTH

Da
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

2
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
PS/2 ports quantity

1
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
ECC сompatibility

ECC & Non-ECC
Number of HDDs supported

4
RAID levels

0, 1, 5, 10
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
WiFi-AP antenna jack

2
Motherboard form factor

ATX
Motherboard chipset family

Intel
PC health monitoring

Fan, Temperature, Voltage, Water cooling
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Lithium weight per battery

0.07 g
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III
Maximum resolution

4096 x 2304 pixels
12V power connector

Yes
Number of storage drives supported

6
S/PDIF out connector

Yes
BIOS memory size

128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Serial port headers

1
Motherboard chipset

Intel B760 Express
PCI Express x16 slots

5
Bundled software

Norton Internet Security
Maximum internal memory supported by processor

128 GB
Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory clock speeds

5333 MHz
WLAN controller model

RZ608
Microphone in

Yes
Bluetooth version

5.2
Cables included

SATA
Headphone outputs

3
Width

305 mm
Depth

244 mm
Height

3.5 mm
Country of origin

China
Package weight

1.49 kg
Battery weight

3 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Package width

335 mm
Package depth

270 mm
Package height

80 mm
Producator

GIGABYTE
Garantie

36
