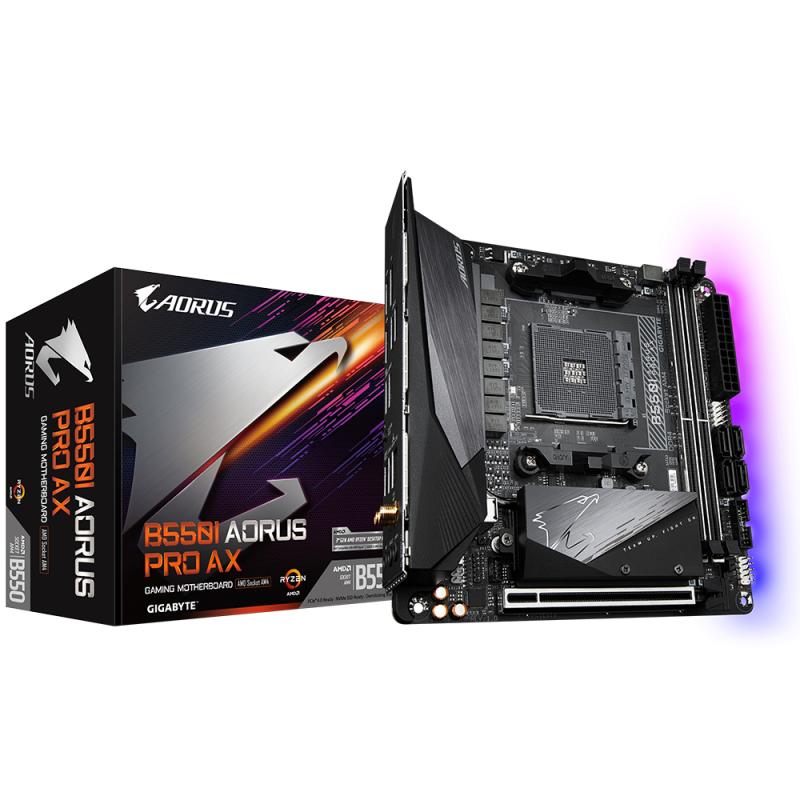

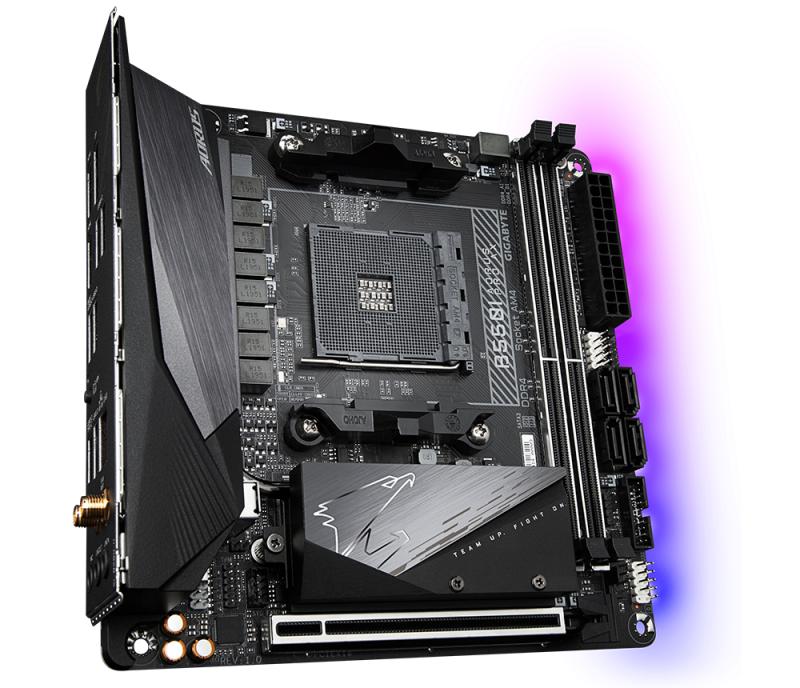

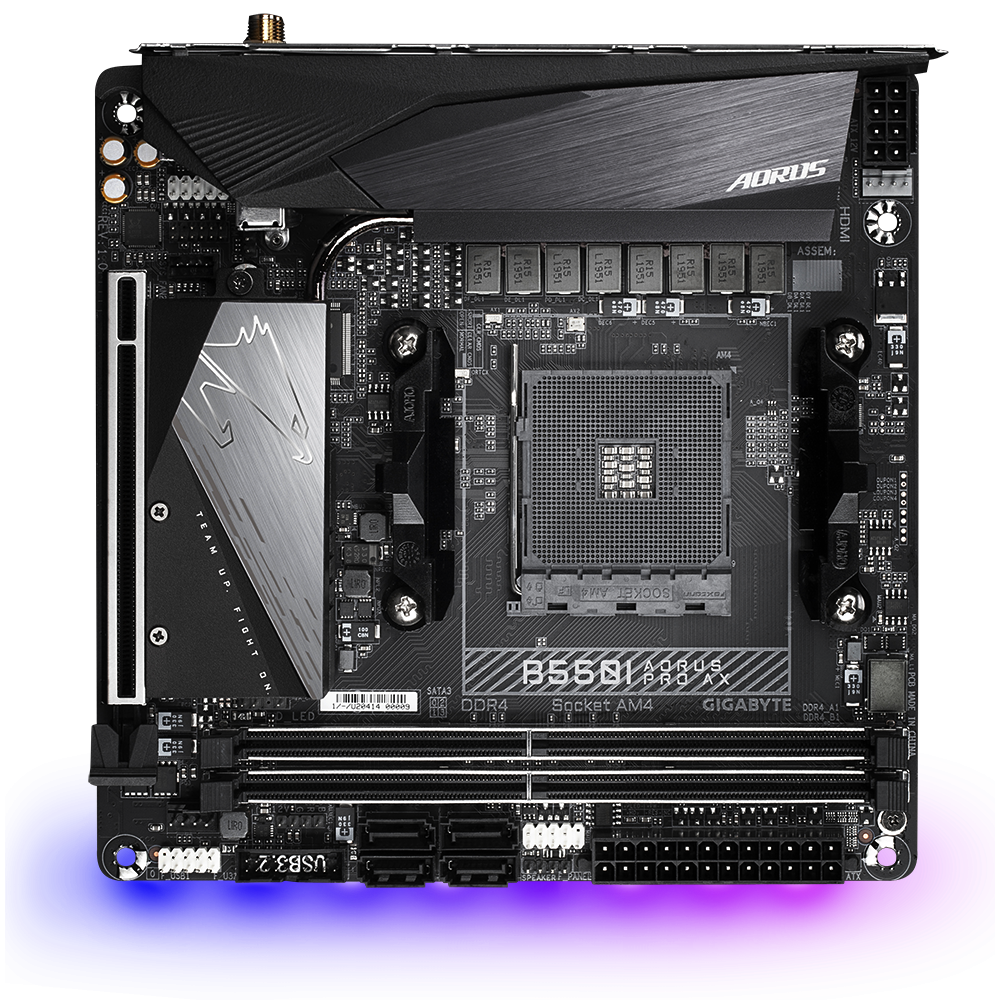

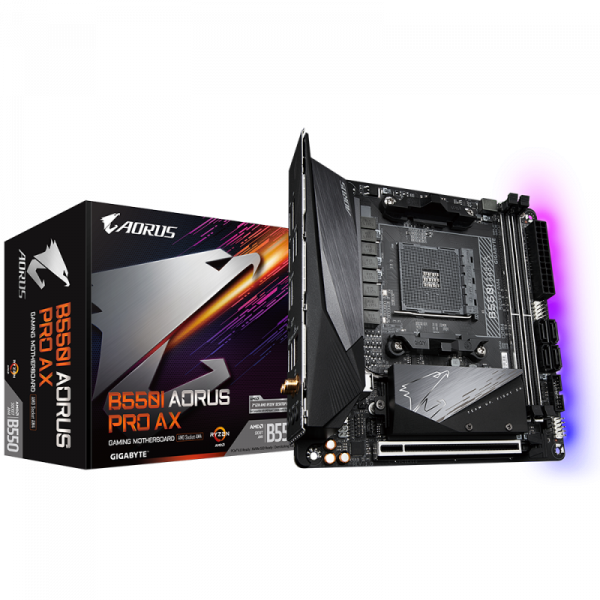

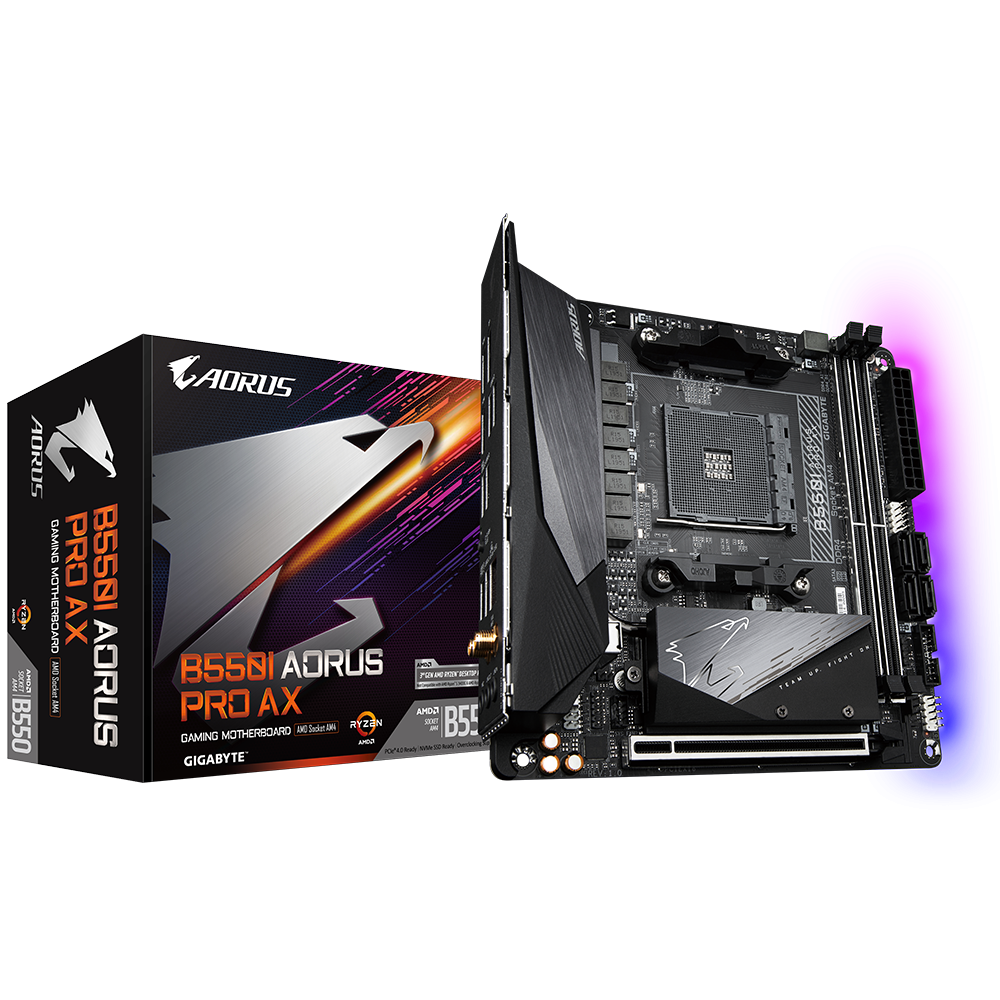

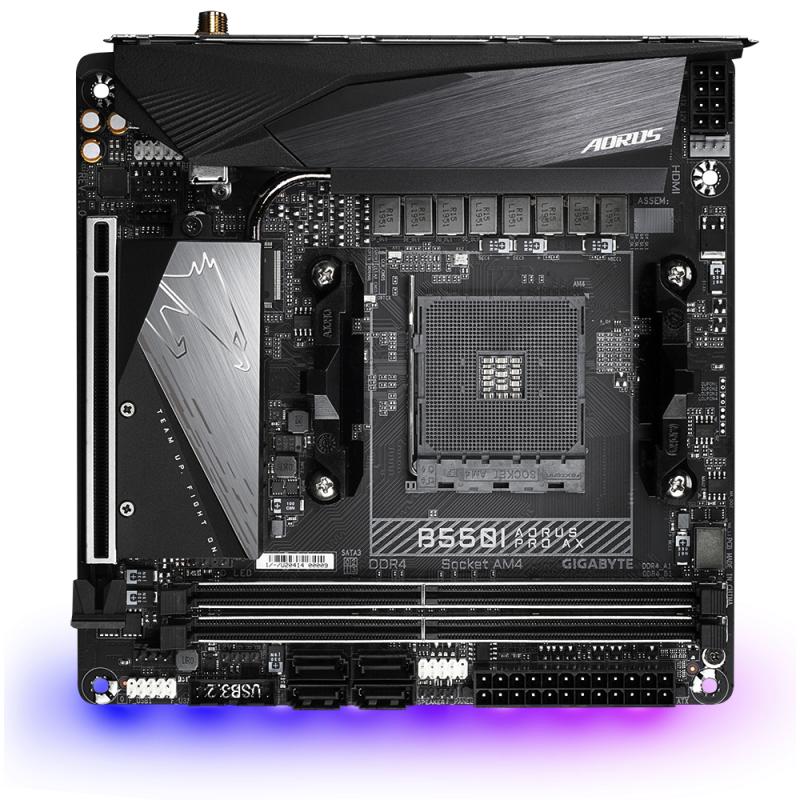

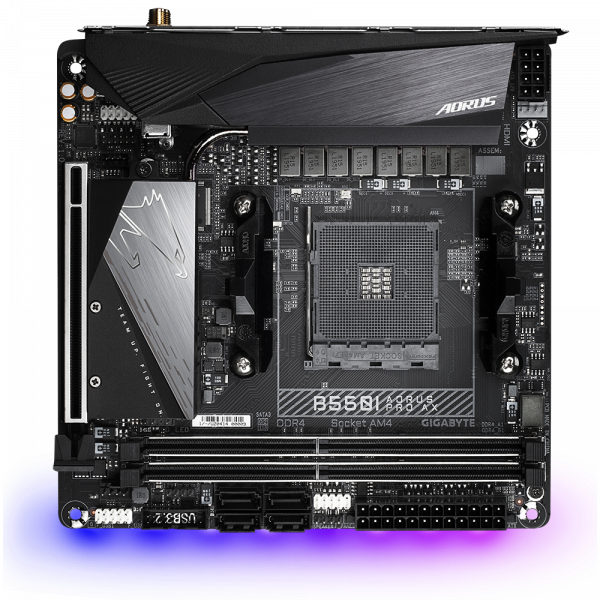

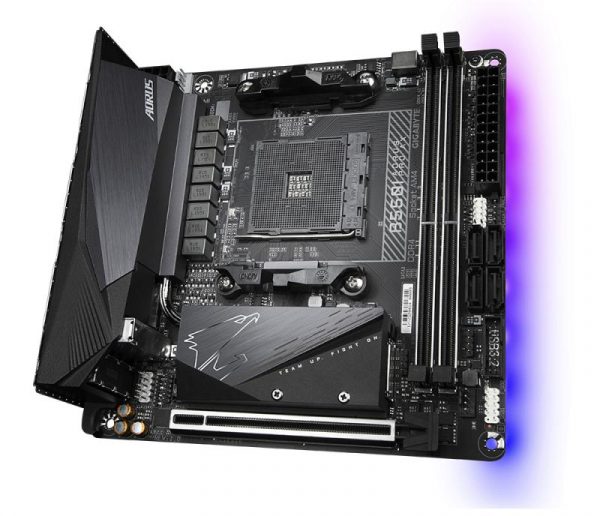

Placa de bază Gigabyte B550I AORUS PRO AX AM4
Doar 1 rămase în stoc
810,99lei 1.080,99lei
Doar 1 rămase în stoc
Placa de baza Gigabyte B550I AORUS PRO AX AM4 CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer “CPU Support List” for more information.) Chipset AMD B550 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 series Processors/ 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400 (O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600 (O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333 (O.C.)/3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) Onboard Graphics Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual- Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate https://www.gigabyte.com/Motherboard/B550I-AORUS-PRO-AX-rev-10/sp#sp
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI |
| Wi-Fi | Yes |
| CPU încorporat | No |
| RAID support | Yes |
| DisplayPort version | 1.4 |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 4.x) slots | 1 |
| On-board graphics card | No |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 2 |
| Processor socket | Socket AM4 |
| Motherboard chipset | AMD B550 |
| HDCP | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Maximum resolution | 5120 x 2880 pixels |
| Model Chipset | B550 |
| Gaming | Nu |
| Format | Mini-ITX |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| BLUETOOTH | Da |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| mSATA ports quantity | 0 |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Lithium weight per battery | 0.07 g |
| Maximum number of SMP processors | 1 |
| Total number of SATA connectors | 4 |
| 12V power connector | Yes |
| Number of storage drives supported | 6 |
| PS/2 ports quantity | 0 |
| RAID levels | 0, 1, 10 |
| eSATA ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| USB 2.0 connectors | 1 |
| PC health monitoring | Fan, Temperature, Voltage |
| Number of displays supported | 3 |
| Maximum internal memory supported by processor | 64 GB |
| Motherboard form factor | mini ITX |
| Audio Chip | Realtek ALC1220-VB |
| Supported storage drive interfaces | M.2, SATA |
| Supported memory clock speeds | 5300 MHz |
| Component for | Nettop |
| Bluetooth version | 5.3 |
| Harmonized System (HS) code | 84733020 |
| Country of origin | Taiwan |
| Height | 3.5 mm |
| Width | 170 mm |
| Depth | 170 mm |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 97 mm |
| Package weight | 1.4 kg |
| Weight | 790 g |
| Producator | GIGABYTE |
| Garantie | 36 |
