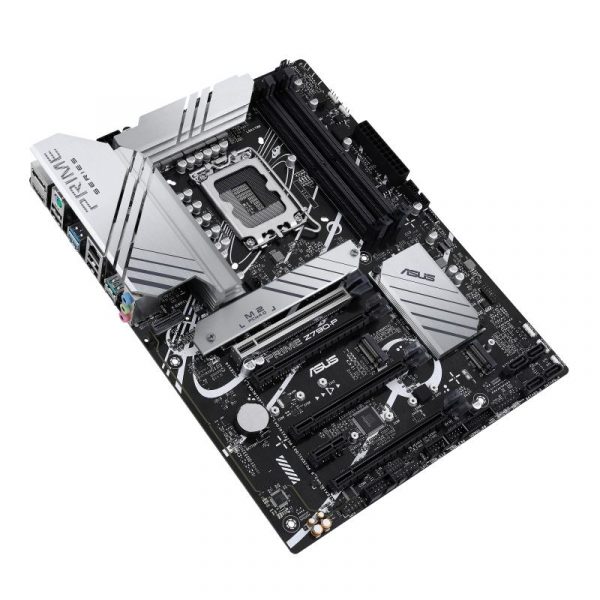

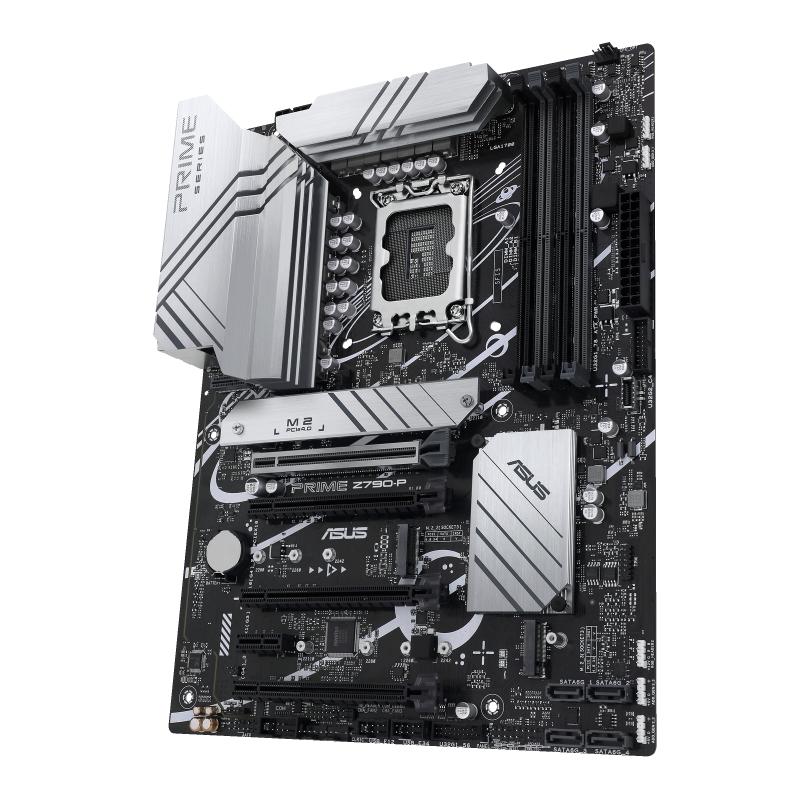

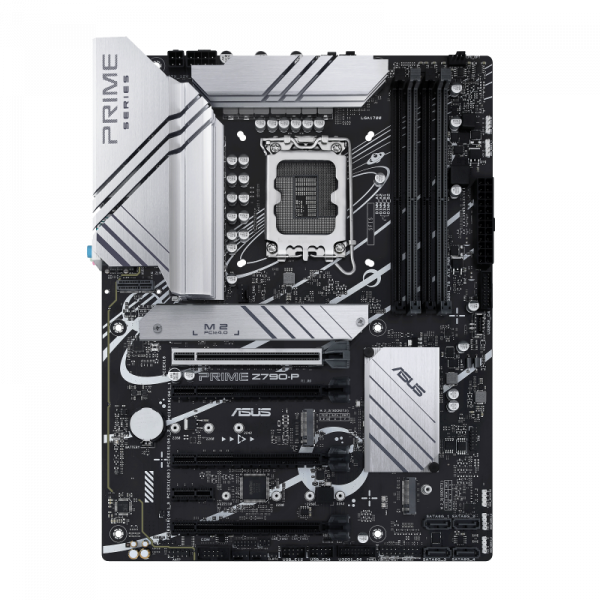

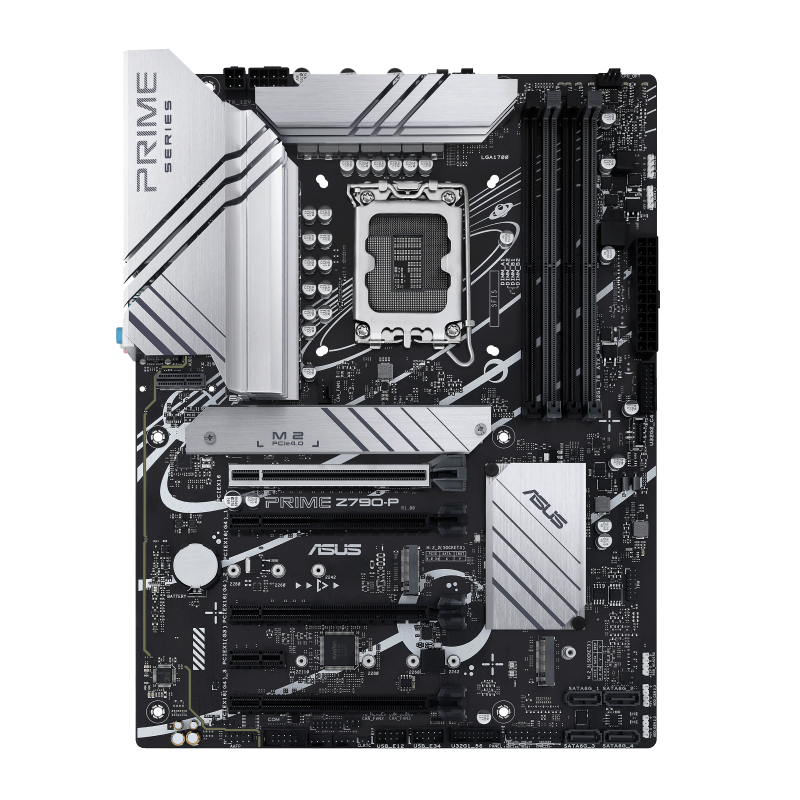

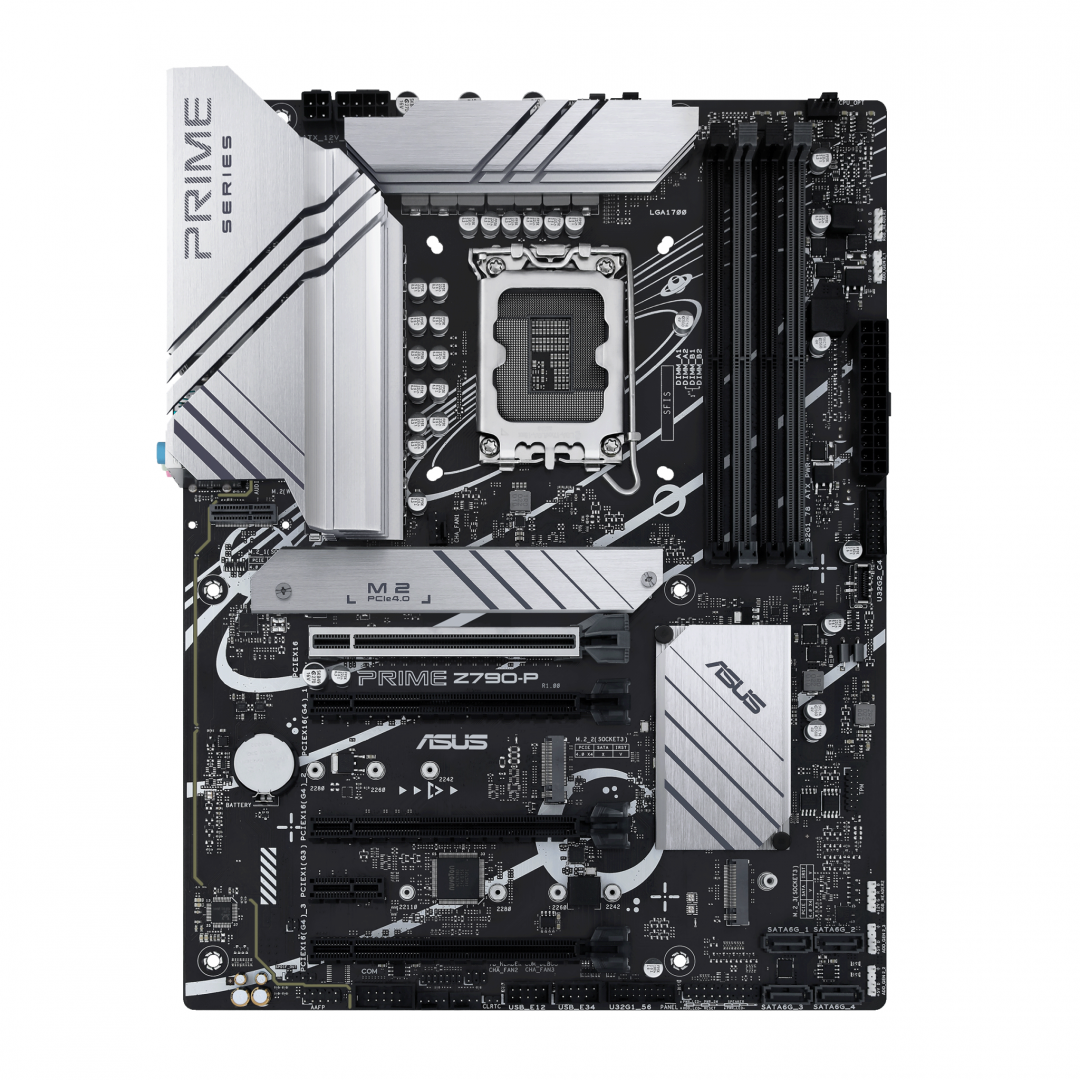

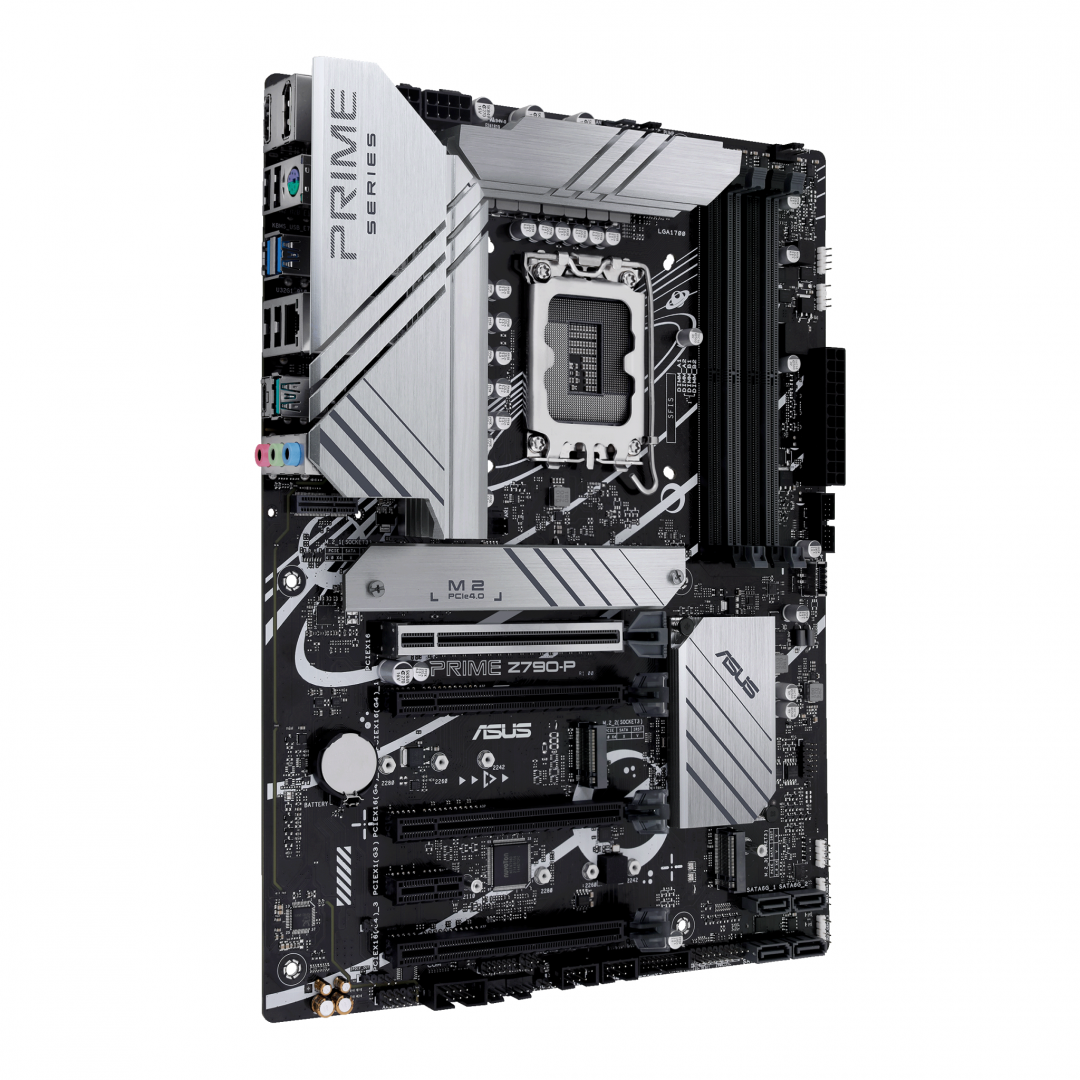

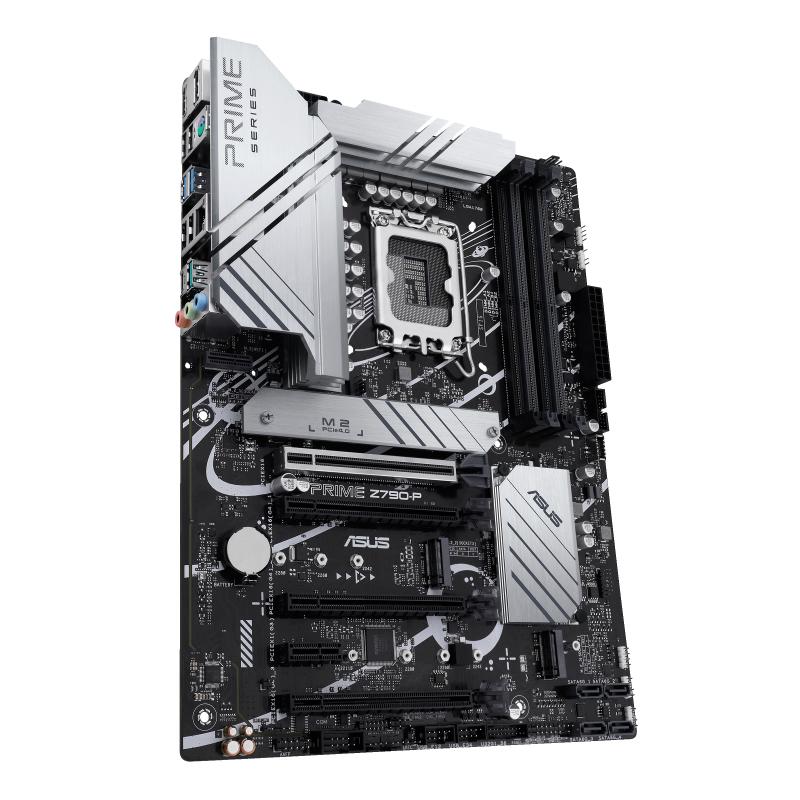

Placa de baza Asus PRIME Z790-P-CSM DDR5 LGA1700
Stoc epuizat
1.595,99lei
Stoc epuizat
Placa de baza Asus PRIME Z790-P-CSM DDR5 LGA1700 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z790 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non- ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet Wireless & Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. https://www.asus.com/motherboards-components/motherboards/prime/prime- z790-p-csm/techspec/
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |

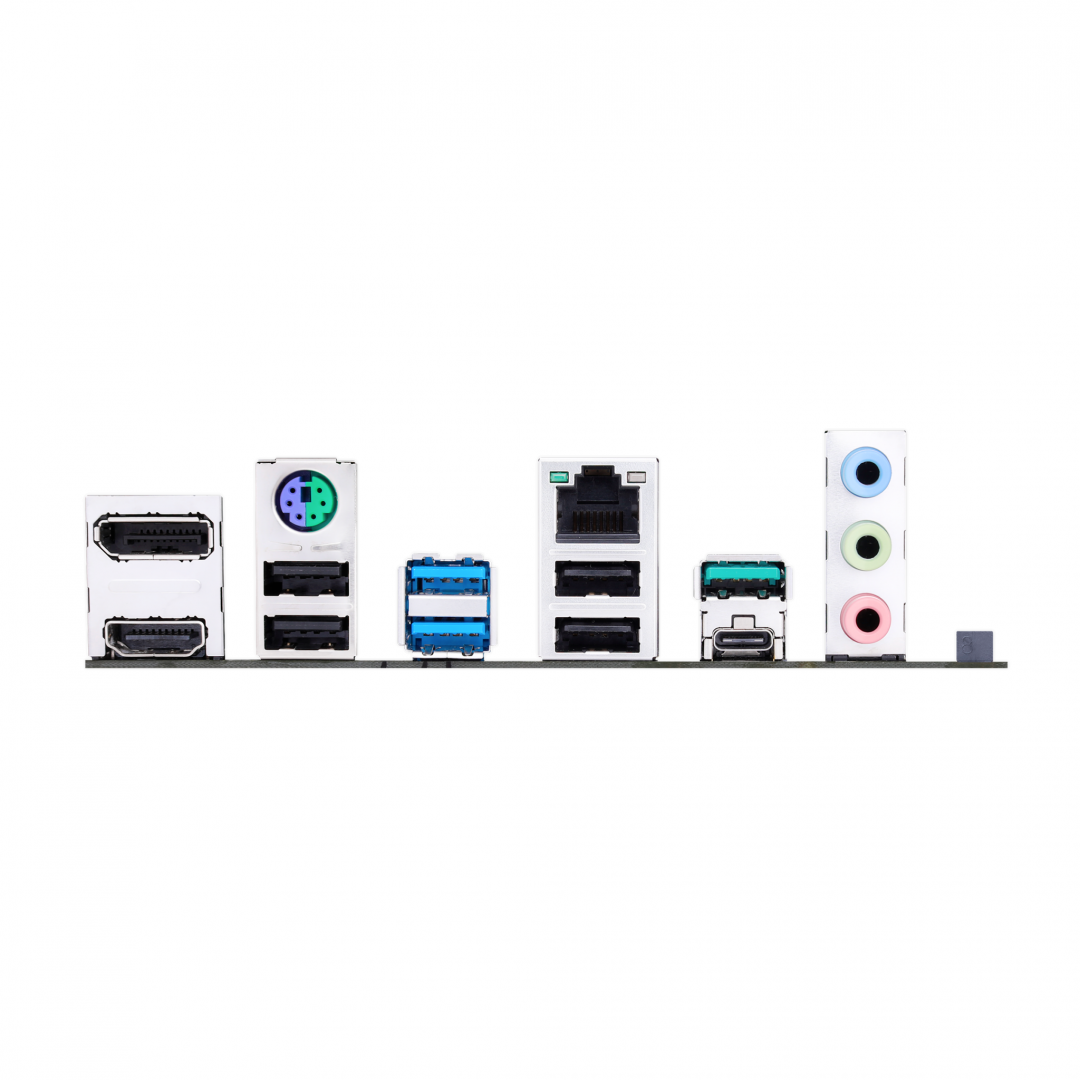

| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum internal memory | 128 GB |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Width | 305 mm |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Model Chipset | Z790 |
| Gaming | Nu |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Tip Memorie | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| BLUETOOTH | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 3 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| BIOS type | UEFI AMI |
| Supported memory types | DDR5-SDRAM |
| RAID levels | 0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Number of M.2 (M) slots | 3 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| 12V power connector | Yes |
| Clear CMOS button | Yes |

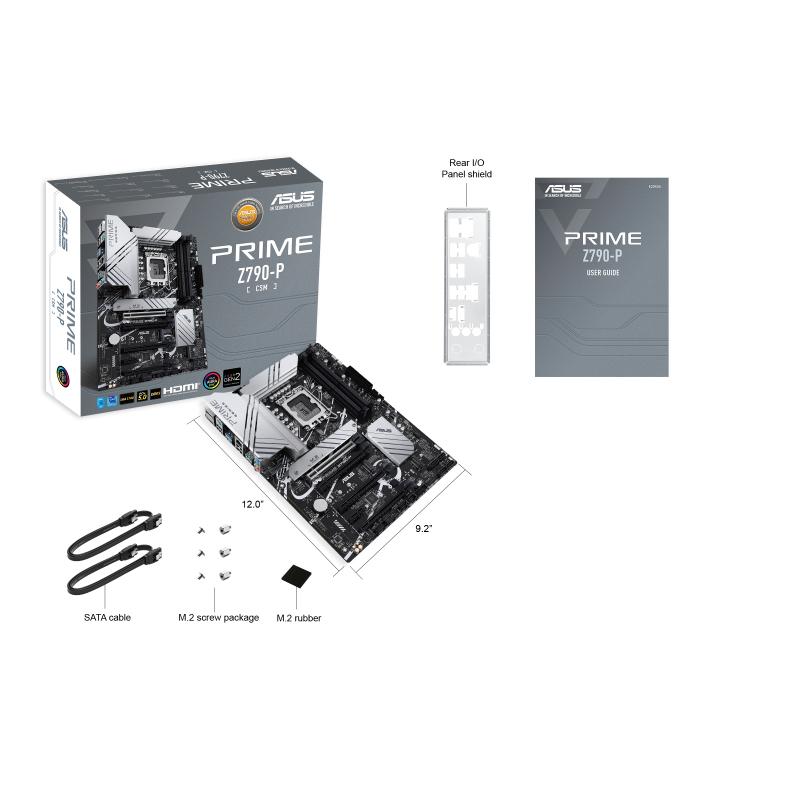

| Cables included | SATA |
| ECC сompatibility | Non-ECC |
| S/PDIF out connector | Yes |
| Number of COM connectors | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Thunderbolt headers | 1 |
| Motherboard chipset | Intel Z790 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Number of chassis fan connectors | 3 |
| BIOS memory size | 192 Mbit |
| Depth | 234 mm |
| Producator | ASUS |
| Garantie | 36 |
