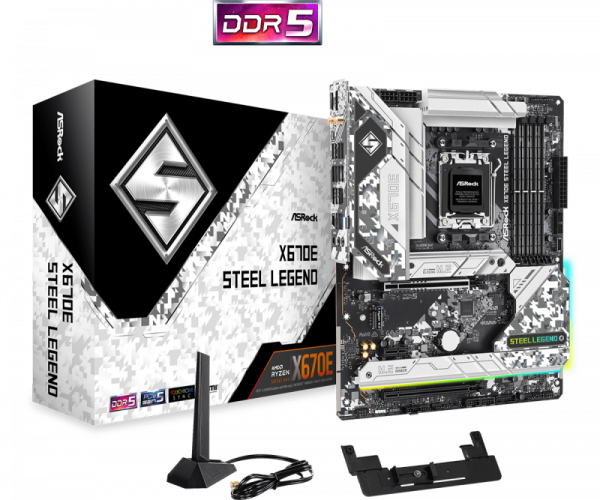

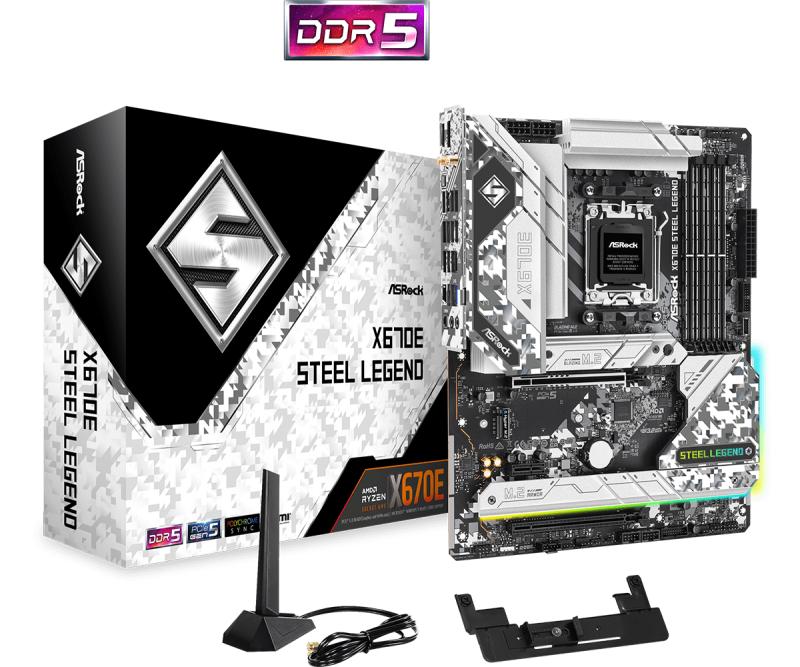

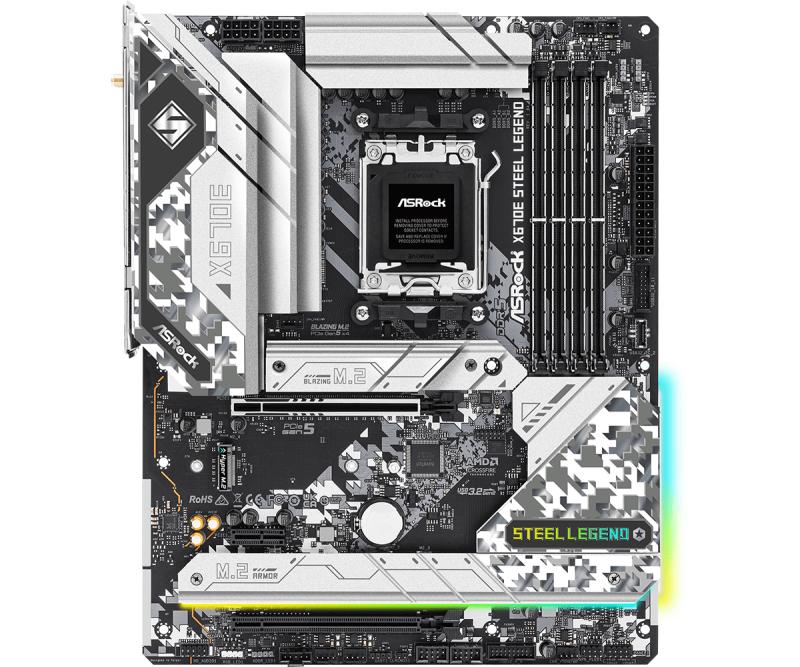

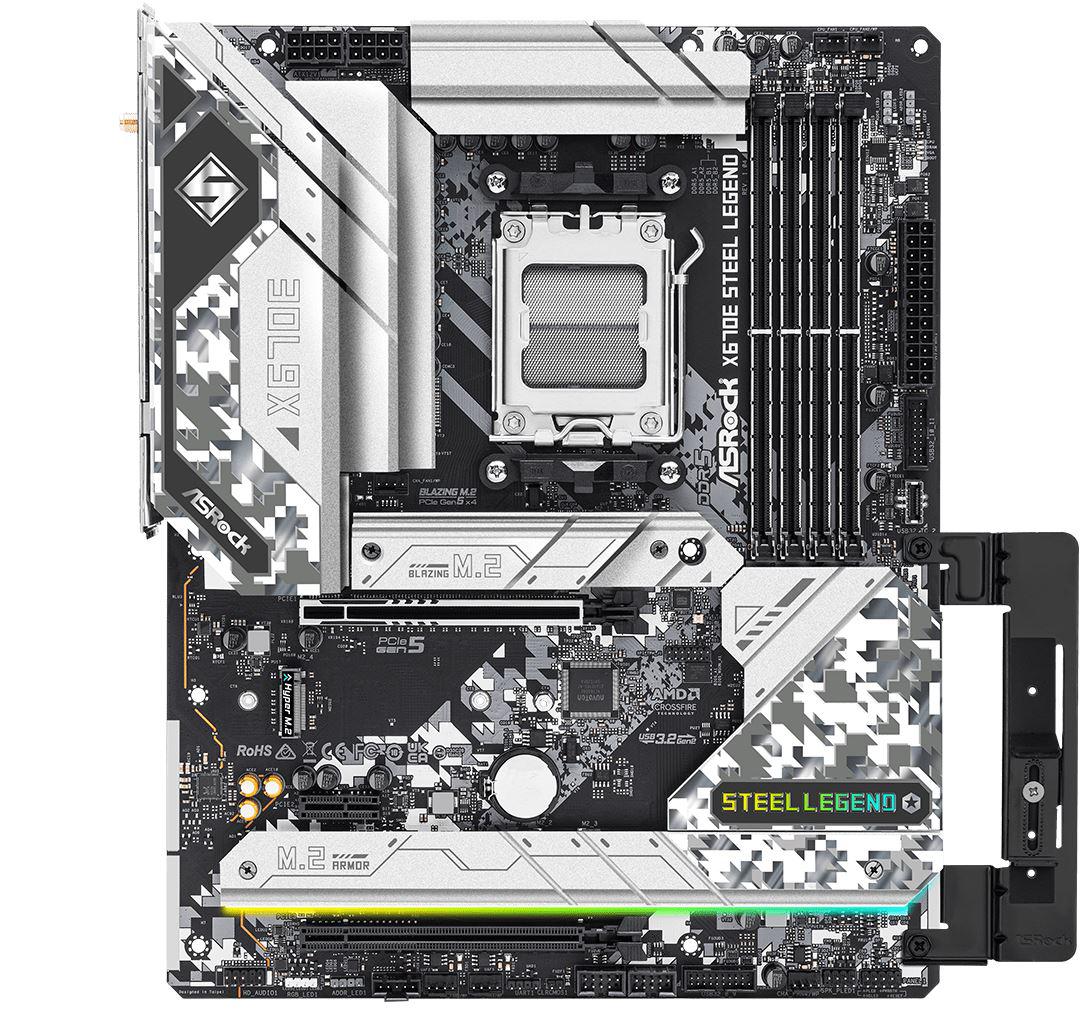

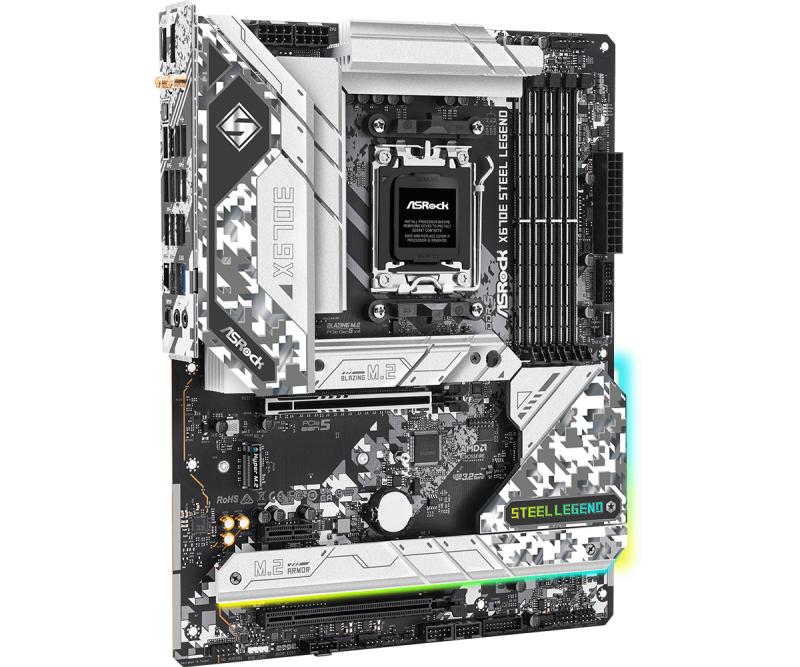

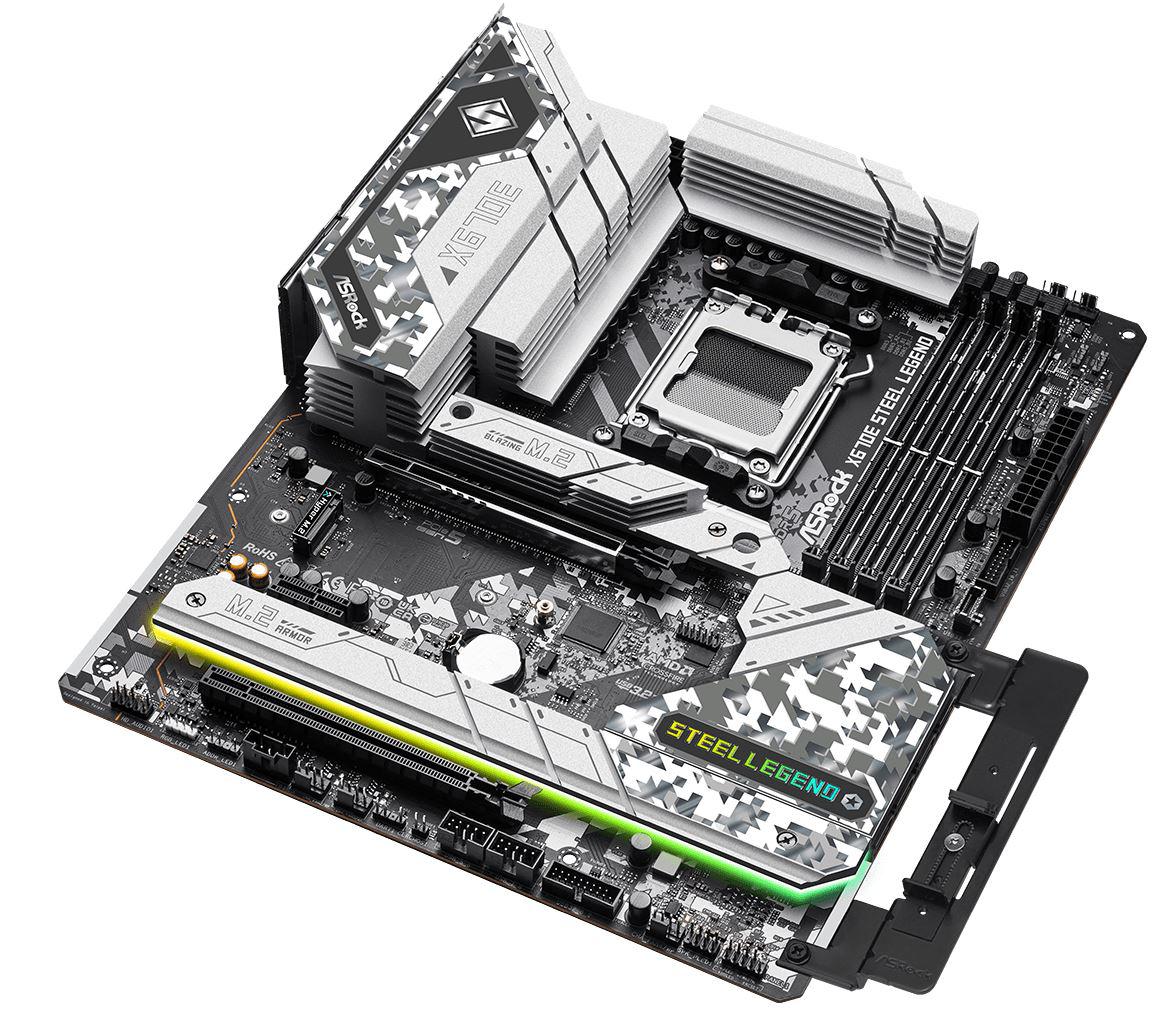

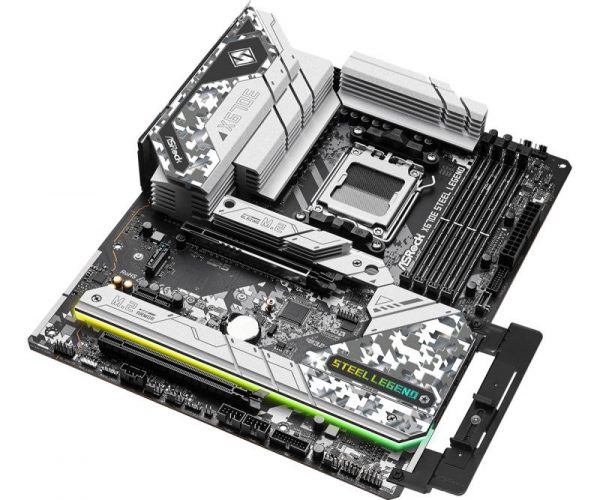

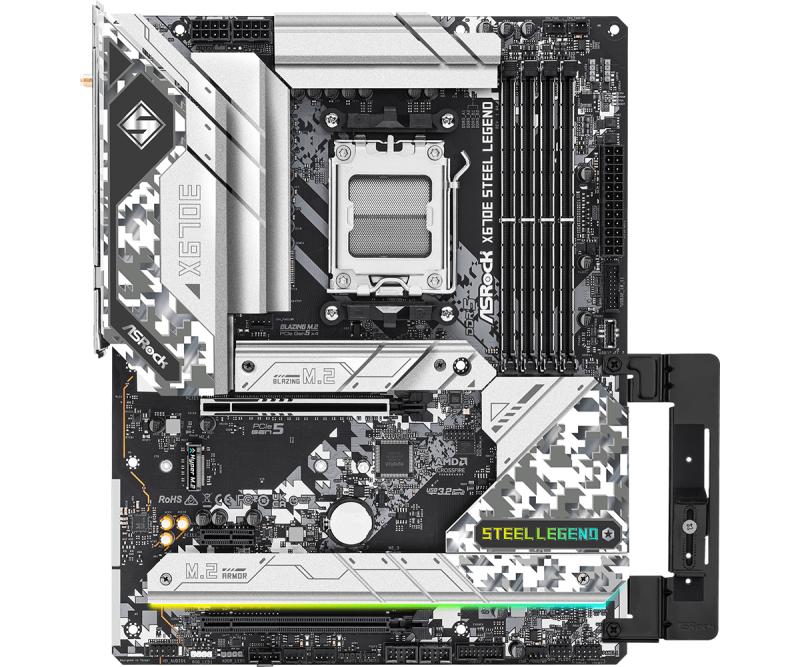

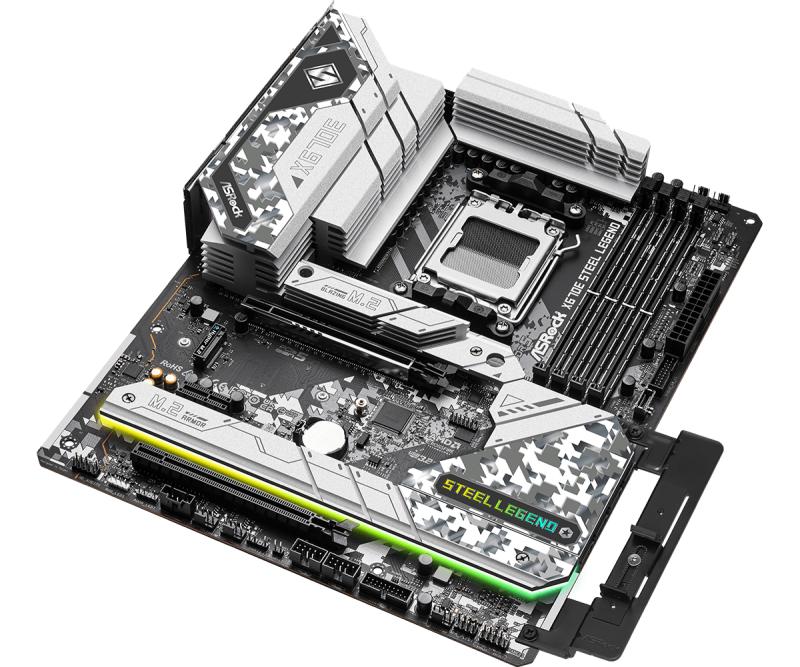

Placa de baza AsRock Socket X670E STEEL LEGEND AM5

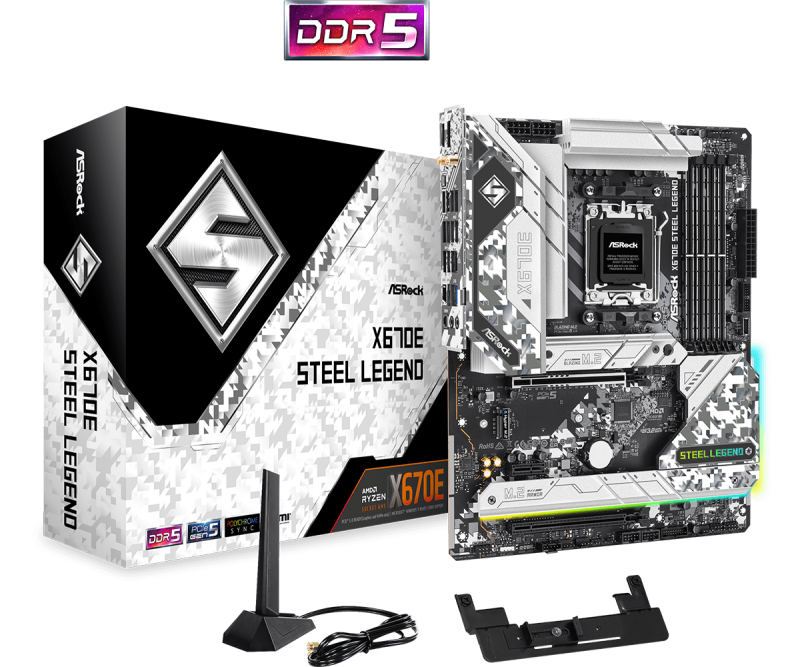

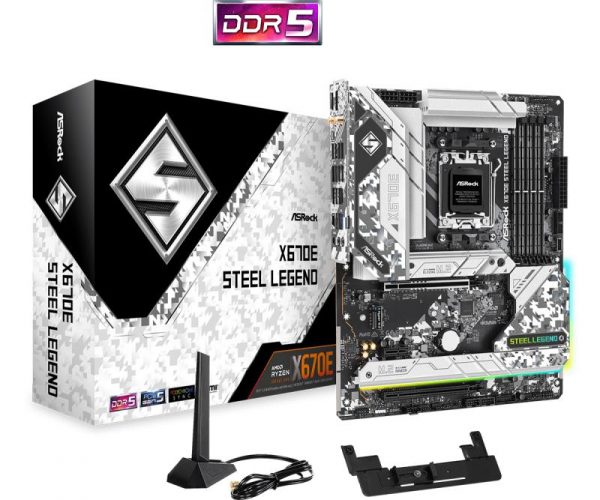

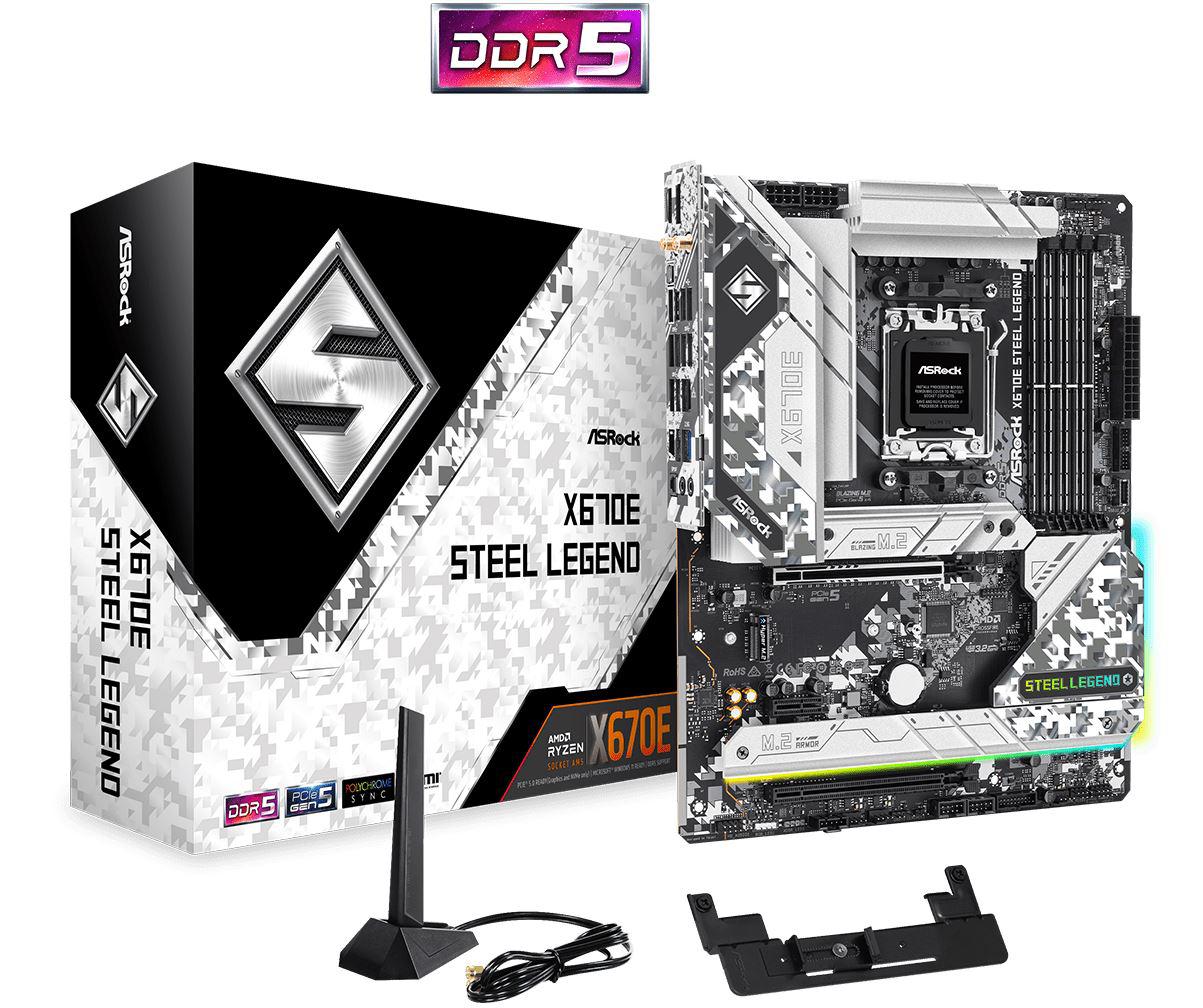

Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 3
Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 4
Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 5
Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 6
Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 7
Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 8
Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 9
Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 10
Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 11
Placa de baza AsRock Socket X670E STEEL LEGEND AM5 - imagine 12

Placa de baza AsRock Socket X670E STEEL LEGEND AM5

SKU: X670E STEEL LEGEND
Producator: Asrock
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

2.134,99lei

Stoc epuizat

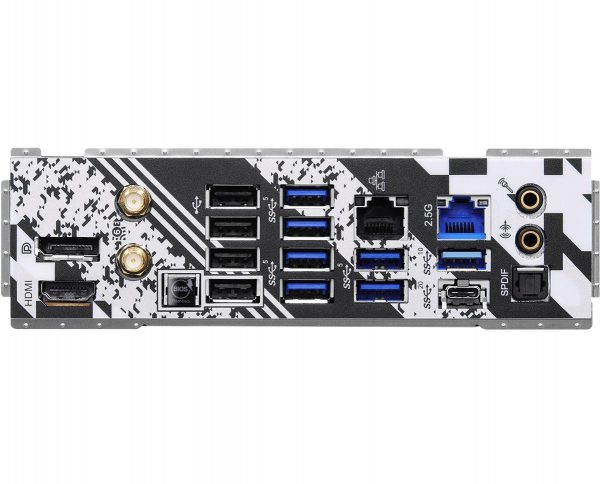

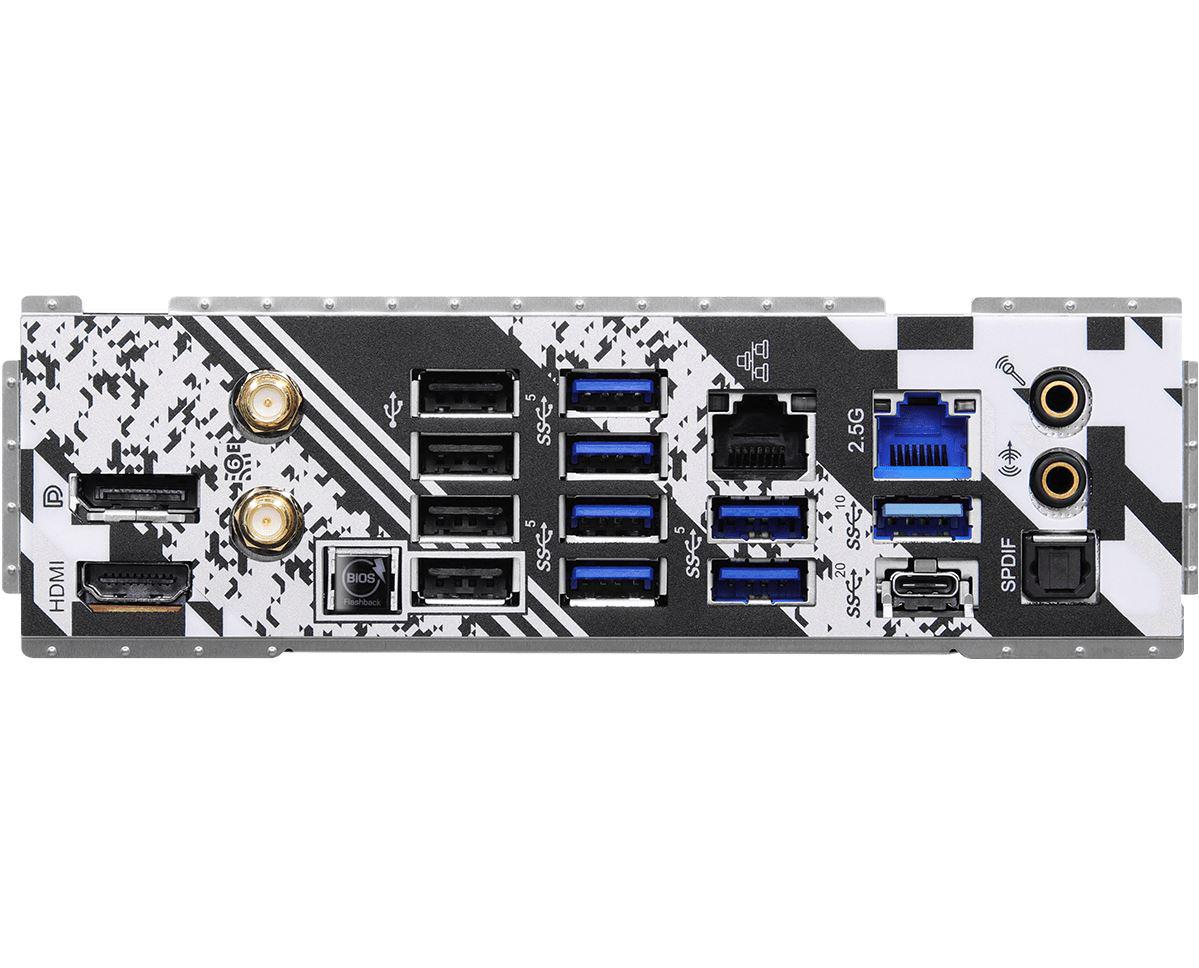

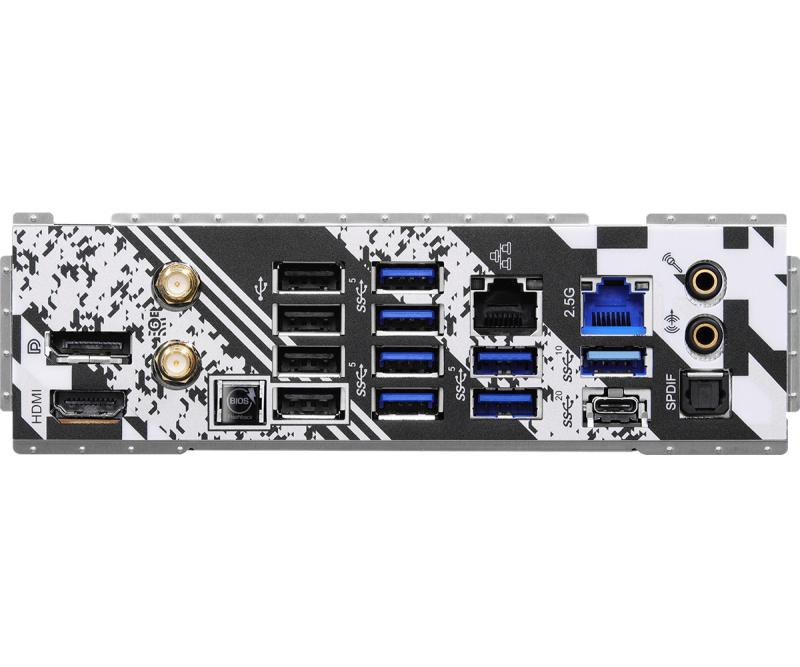

Placa de baza AsRock Socket AM5, X670E Steel Legend Supports AMD Ryzen™ 7000 Series Processors 16+2+1 Phase Power Design, SPS 4 x DDR5 DIMMs, supports up to 6600+(OC) 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), Nahimic Audio 1 Blazing M.2(PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3 1 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front) Realtek 2.5G LAN, Realtek 1G LAN 802.11ax Wi-Fi 6E + Bluetooth

SKU: X670E STEEL LEGEND Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

Yes
Onboard-CPU

No
RAID support

Yes
Component for

PC
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
Memory channels

Dual-channel
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Ethernet LAN

Yes
HDMI ports quantity

1
Maximum internal memory

128 GB
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Headphone outputs

1
Processor manufacturer

AMD
USB 2.0 ports quantity

4
PCI Express x16 (Gen 3.x) slots

1
Audio output channels

7.1 channels
PCI Express x1 (Gen 3.x) slots

1
Line-in

Yes
PCI Express x16 (Gen 5.x) slots

1
Supported storage drive types

HDD & SSD
Cooling type

Passive
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6
S/PDIF out port

Yes
USB4 Gen 2x2 ports quantity

1
Ethernet LAN (RJ-45) ports

2
DisplayPorts quantity

1
DVI-D ports quantity

0
Parallel processing technology support

Crossfire
Model Chipset

X670E
Gaming

Nu
Format

ATX
Soclu Procesor

Socket AM5
Tip Memorie

DDR5
Numar sloturi memorie

4
Memorie maxima

128 GB
Tip slot interfata grafica

PCIe 5.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Da
BLUETOOTH

Da
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

4
RJ-45 LAN

2
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Motherboard chipset family

AMD
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Width

244 mm
Supported memory types

DDR5-SDRAM
ECC сompatibility

ECC & Non-ECC
Front panel connector

Yes
Number of chassis fan connectors

4
RGB LED pin header

Yes
Motherboard form factor

ATX
S/PDIF out connector

Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Number of M.2 (M) slots

4
RAID levels

0, 1, 10
Processor socket

Socket AM5
Motherboard chipset

AMD X670
Compatible processor series

AMD Ryzen 7000 Series
Audio Chip

Realtek ALC1220
Audio connector

Yes
Ethernet interface type

2.5 Gigabit Ethernet, Gigabit Ethernet
Supported memory clock speeds

6600 MHz
LAN controller

Dragon RTL8125BG, Realtek RTL8111
Depth

305 mm
Producator

ASROCK
Garantie

36
