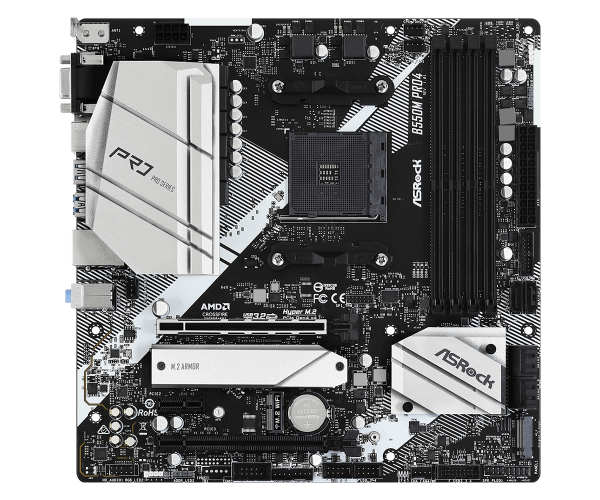

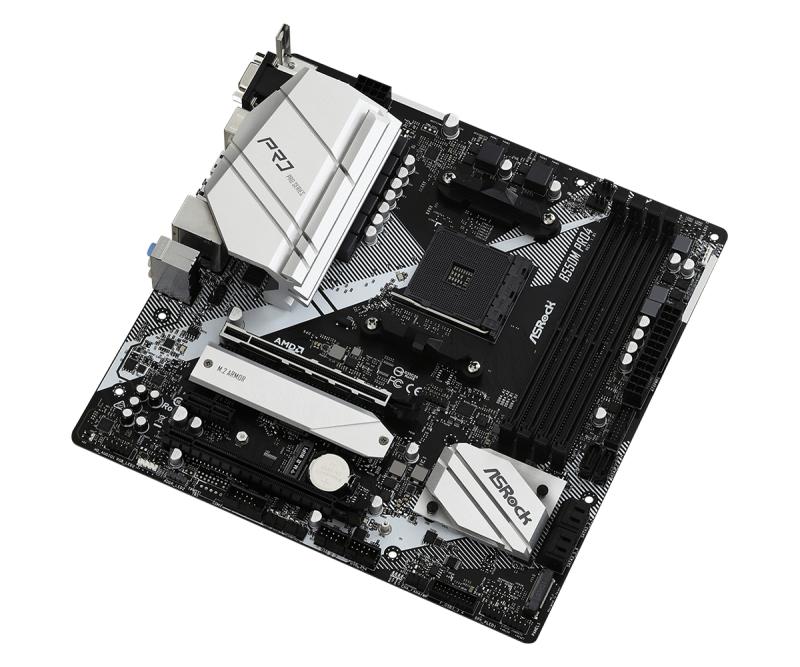

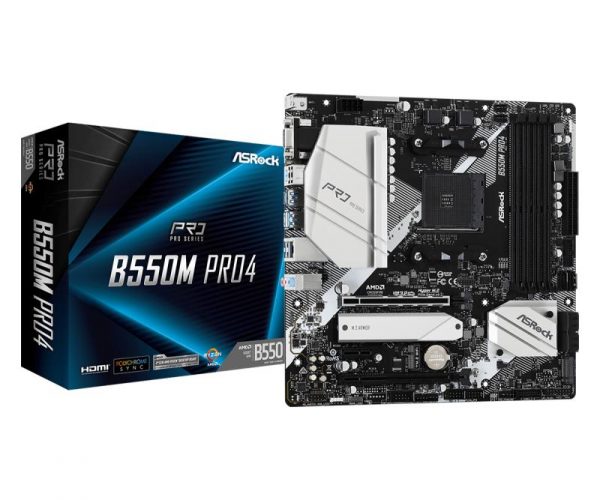

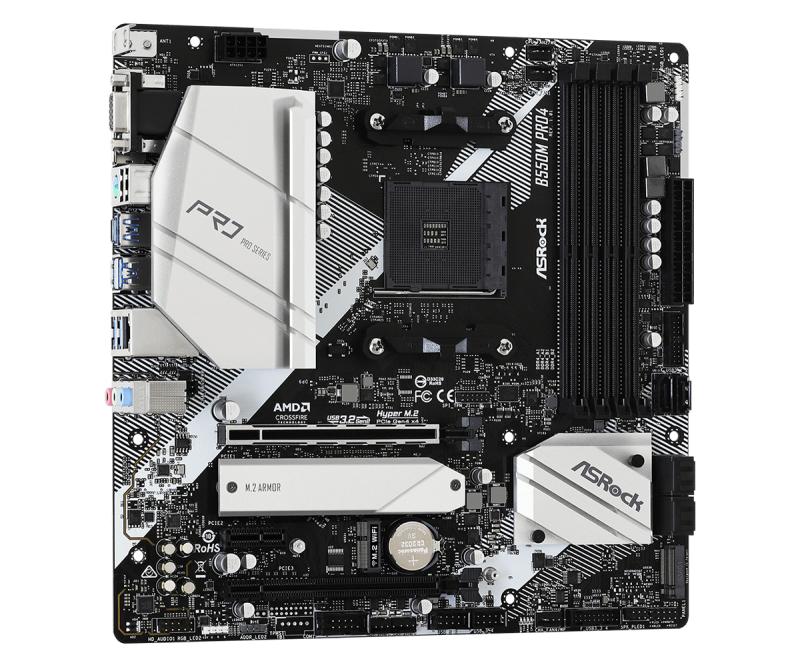

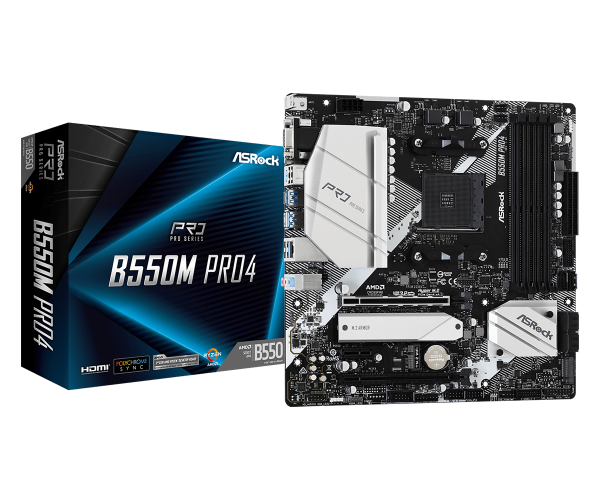

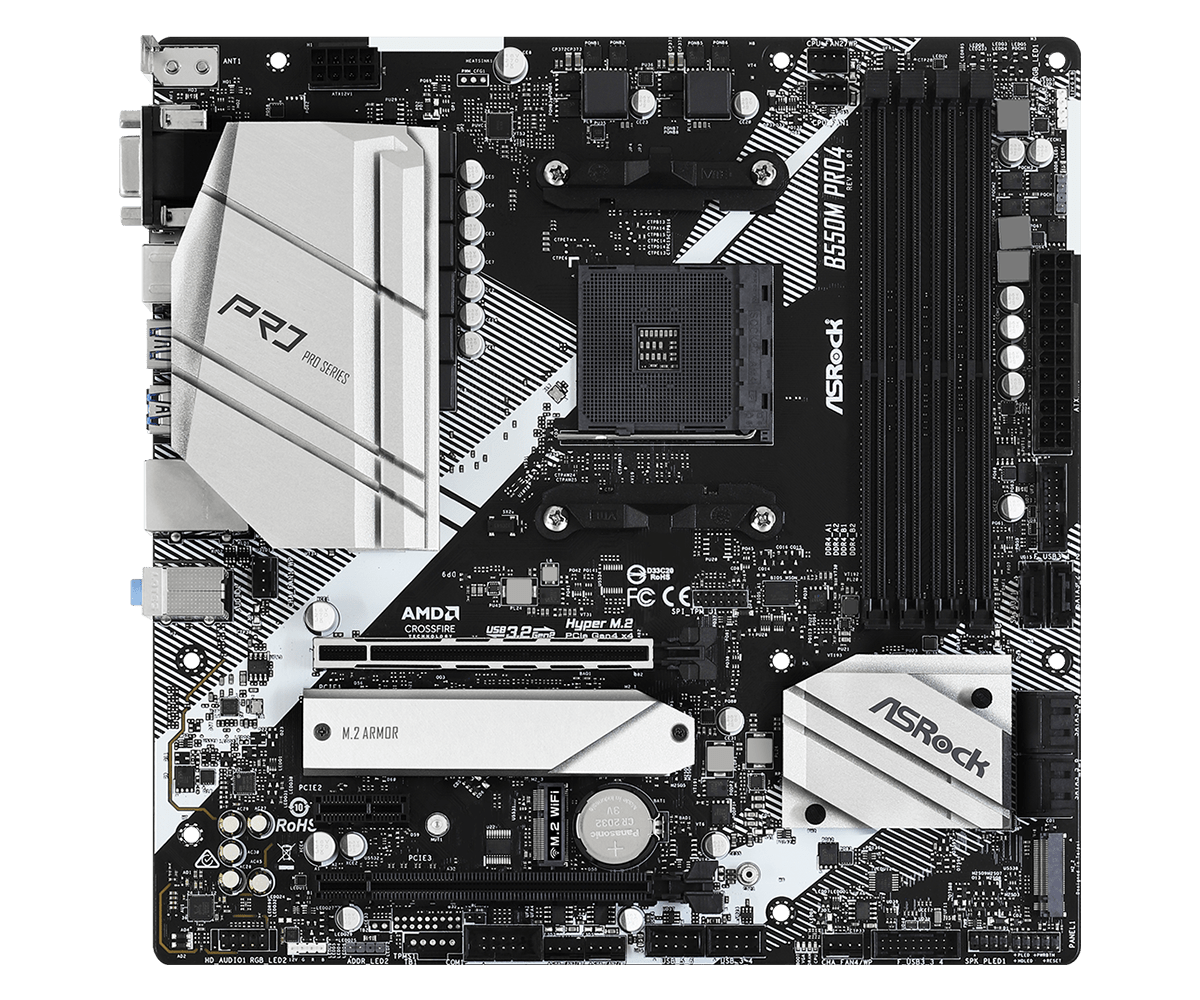

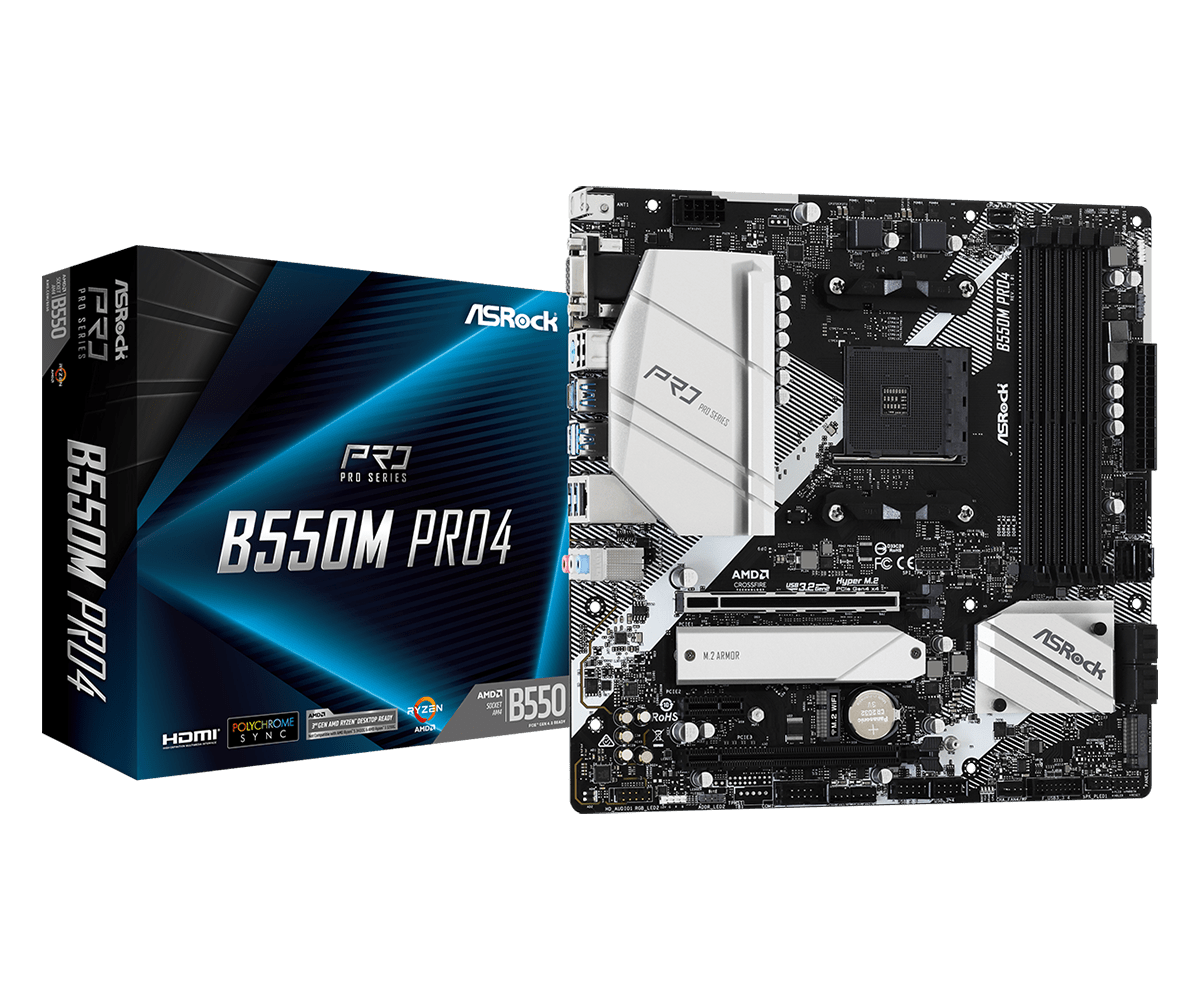

Placa de baza ASRock B550M PRO4, Socket AM4
Stoc epuizat
607,00lei
Stoc epuizat
Chipsetul AMD B550 face PCIe® 4.0 posibil pentru toti cei care isi doresc performanta, latime de banda si viteza superioare. Pregatit pentru procesoarele AMD Ryzen™ de generatia a 3-a si ulterioare.
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | VGA/DVI/HDMI/DP |
| Wi-Fi | No |
| CPU încorporat | No |
| RAID support | Yes |
| Component for | PC |
| Height | 70 mm |
| Wake-on-LAN ready | Yes |
| DisplayPort version | 1.4 |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 84733020 |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Maximum internal memory | 128 GB |
| Processor manufacturer | AMD |
| Microphone in | Yes |
| USB 2.0 ports quantity | 2 |
| Depth | 244 mm |
| Weight | 465 g |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Audio Chip | Realtek ALC1200 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| LAN controller | Realtek RTL8111H |
| Processor socket | Socket AM4 |
| Motherboard chipset | AMD B550 |
| VGA (D-Sub) ports quantity | 1 |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 0 |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Drivers included | Yes |
| Maximum resolution | 5120 x 2880 pixels |
| Model Chipset | B550 |
| Gaming | Da |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| BLUETOOTH | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 3 |
| RJ-45 LAN | 1 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Width | 244 mm |
| ECC сompatibility | ECC & Non-ECC |
| Front panel connector | Yes |
| Number of chassis fan connectors | 4 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of M.2 (M) slots | 3 |
| Maximum number of SMP processors | 1 |
| 12V power connector | Yes |
| Cables included | SATA |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| RAID levels | 0, 1, 10 |
| Number of SATA III connectors | 0 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Supported processor sockets | Socket AM4 |
| Supported memory clock speeds | 4733 MHz |
| Number of displays supported | 3 |
| ACPI version | 5.1 |
| System Management BIOS (SMBIOS) version | 2.3 |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Certification | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Parallel processing technology support | CrossFireX, Quad-GPU CrossFireX |
| Number of SATA II connectors | 6 |
| Producator | ASROCK |
| Garantie | 24 |
